One Shot Octal Socket Power Supply 901-00-019


Lead time - 10 Weeks +

  • 901-00-019
  • Power Supply
  • Model Size: WSCC-102
  • Input: 120/240 VAC, 50/60 Hz
  • Output: 160/290 VDC
  • Cycle Rate: 300 CPM

Model WSCC-102
Part Number: 901-00-019

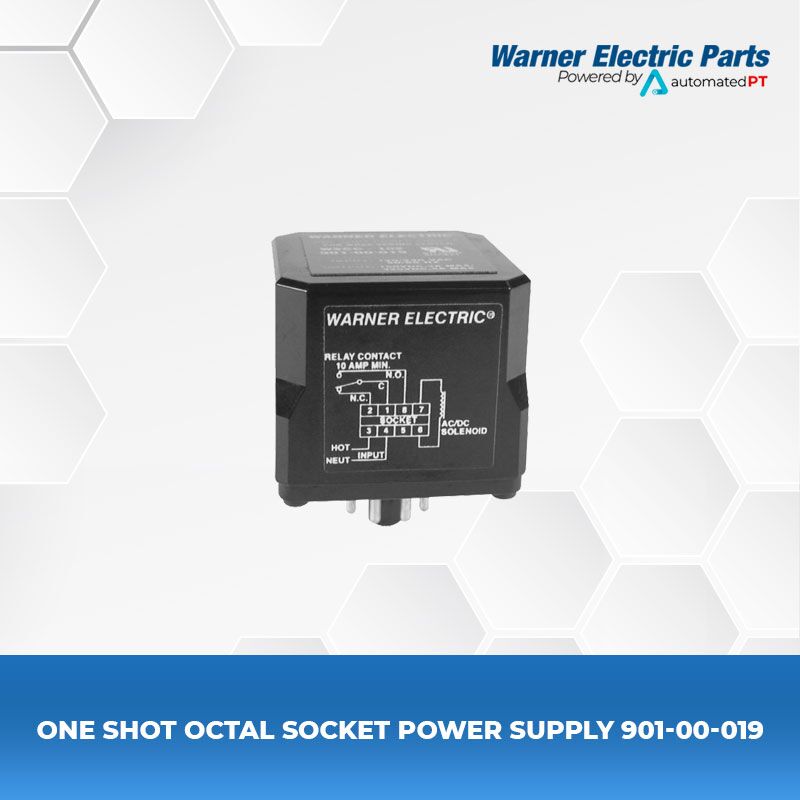

Warner Electric’s One Shot Power Supply is a plug-in clutch/brake control designed for operation of AC or DC wrap spring clutches and brakes with a D-frame coil. The One Shot provides a single voltage pulse of 160 or 325 VDC for approximately 20MS, whether the customer supplied switch is momentarily closed or held closed. The One Shot Power Supply is UL Listed when used with Warner Electric’s octal socket, part no. 6001-101-001, or DIN rail mount octal socket, part no. 6001-101-002 (each purchased separately) and only UL-Recognized when used with other sockets. This unit may be mounted in any convenient position using the two mounting holes provided on the socket. Actuating the single pole, double throw (SPDT) switch energizes the solenoid coil. Releasing or resetting the switch charges an internal capacitor. A minimum of 20 milliseconds cycle time is required between operations.


Input:120/240 VAC, 50/60 Hz
Output:160/290 VDC Peak, 3 amps max at 160 VDC output, 5 amps max. at 290 VDC output
Ambient Temperature:32° F to + 122° F
0° C to + 50° C


SolenoidVAC InputMaximum Cycle Rate
12 VDC120200 CPM
24035 CPM
24 VDC120300 CPM
24040 CPM
90 VDC120400 CPM
24060 CPM
115 VAC120350 CPM
24045 CPM
