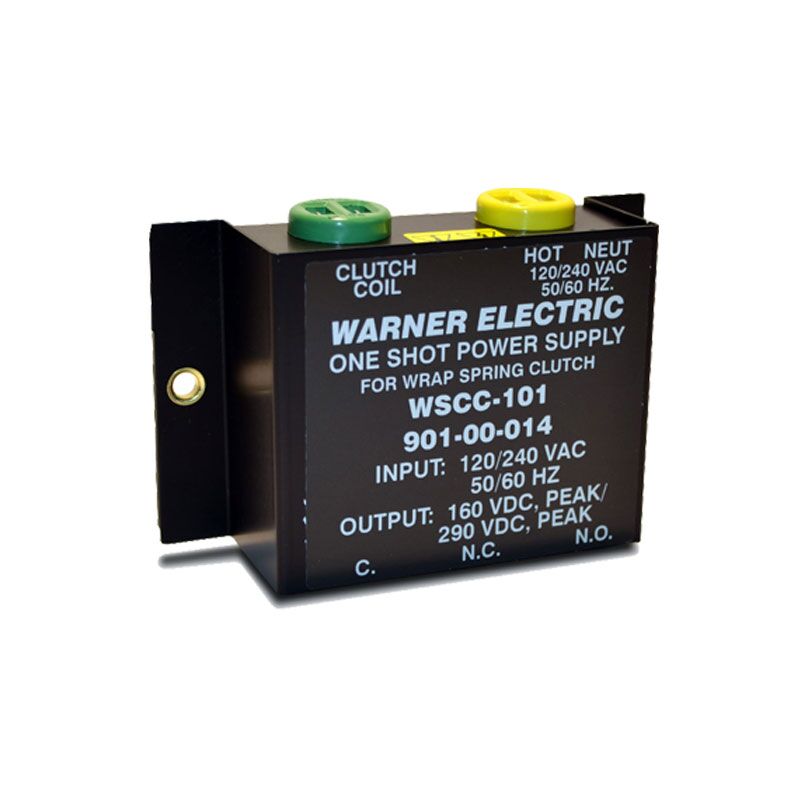

One Shot Power Supply 901-00-014

$444.55

Lead time - 10 Weeks +

  • 901-00-014
  • Power Supply
  • Model Size: WSCC-101
  • Input: 120/240 VAC, 50/60Hz
  • Output: 160/290 VDC
  • Cycle Rate: 300 CPM

Model WSCC-101
Part Number: 901-00-014

The One Shot Power Supply is available for use with standard AC as well as DC D-Frame coils. The one shot provides a single overexcite voltage pulse whether the switch is momentarily closed, or held closed. The unit operates on either 120 or 230 AC, 50/60 Hz power and may be mounted in any convenient position by use of two mounting holes for #8-32 screws.

Note: Designed for use with actuator limit stop option and D-frame coil.



Specifications
Input: 120/240 VAC, 50/60 Hz
Output: 160/290 VDC Peak, 3 amps max at 160 VDC output, 5 amps max. at 290 VDC output
Ambient Temperature: 32° F to + 122° F
0° C to + 50° C
Terminals: Amp Inc., Fast-on 250 Series Tabs (.250 X .032),
For 14-16AWG AMP #640905-1
For 18-22AWG AMP #640903-1



Solenoid VAC Input Maximum Cycle Rate
12 VDC 120 200 CPM
240 35 CPM
24 VDC 120 300 CPM
240 40 CPM
90 VDC 120 400 CPM
240 60 CPM
115 VAC 120 350 CPM
240 45 CPM
