Part Number: 302-27-008
Bore Size: 0.25″
Voltage: 115 VAC

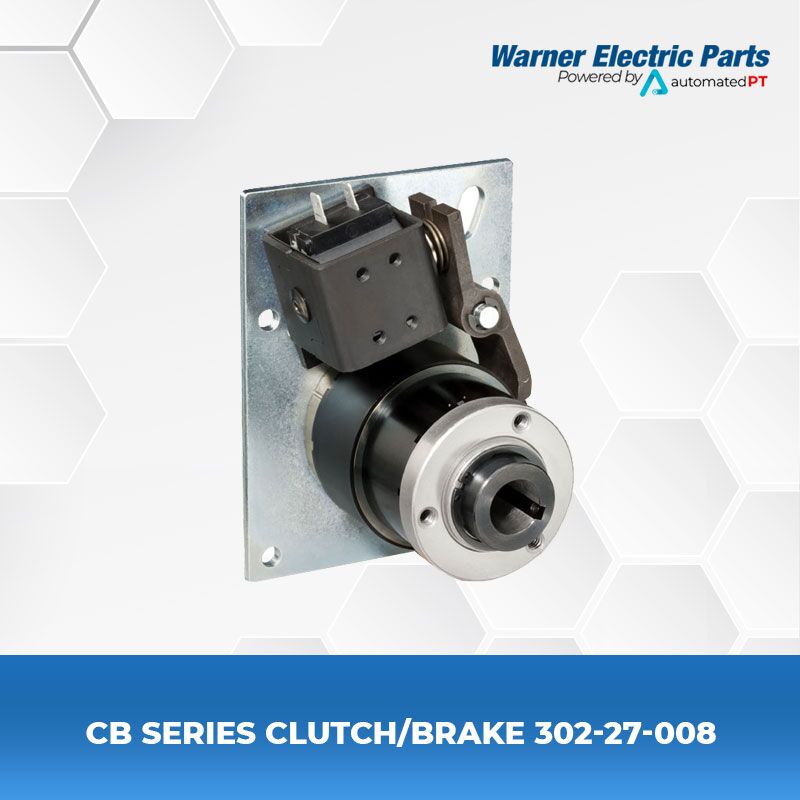

Electrically actuated clutch/brake package. Designed for applications requiring a continuous rotational input being converted into starting and stopping a load. Each CB Series unit is a completely self-contained, packaged clutch/brake assembly designed to start and stop a load rapidly and accurately without any cumulative error. In fact, at speed up to 1800 rpm, loads are started and stopped within ±1/2° per revolution. CB Series units are solenoid actuated with standard models available in 12,24, or 90 VDC as well as 115 VAC configurations.
• Clockwise or Counterclockwise rotation.
• Anti-back: anti-overrun feature
• 12, 24, or 90VDC, 115 VAC operation
• 1, 2 or 4 stop collars also available (up to 24 stops)
• Adjustable stop collar
• Six standard sizes
• Torque ratings from 25 lb.in. to 5000 lb.in.
Available Power Supply Units
Part Number: 901-00-019
Warner Electric’s One Shot Power Supply is a plug-in clutch/brake control designed for operation of AC or DC wrap spring clutches and brakes with a D-frame coil. The One Shot provides a single voltage pulse of 160 or 325 VDC for approximately 20MS, whether the customer supplied switch is momentarily closed or held closed. The One Shot Power Supply is UL Listed when used with Warner Electric’s octal socket, part no. 6001-101-001, or DIN rail mount octal socket, part no. 6001-101-002 (each purchased separately) and only UL-Recognized when used with other sockets. This unit may be mounted in any convenient position using the two mounting holes provided on the socket. Actuating the single pole, double throw (SPDT) switch energizes the solenoid coil. Releasing or resetting the switch charges an internal capacitor. A minimum of 20 milliseconds cycle time is required between operations.
Note: Designed for use with actuator limit stop option.
Part Number: 901-00-014
The One Shot Power Supply is available for use with standard AC as well as DC D-Frame coils. The one shot provides a single overexcite voltage pulse whether the switch is momentarily closed, or held closed. The unit operates on either 120 or 230 AC, 50/60 Hz power and may be mounted in any convenient position by use of two mounting holes for #8-32 screws.
Note: Designed for use with actuator limit stop option and D-frame coil.
Manuals and Specifications
|Catalog||Warner Electric CB Series Clutch / Brake Catalog|
