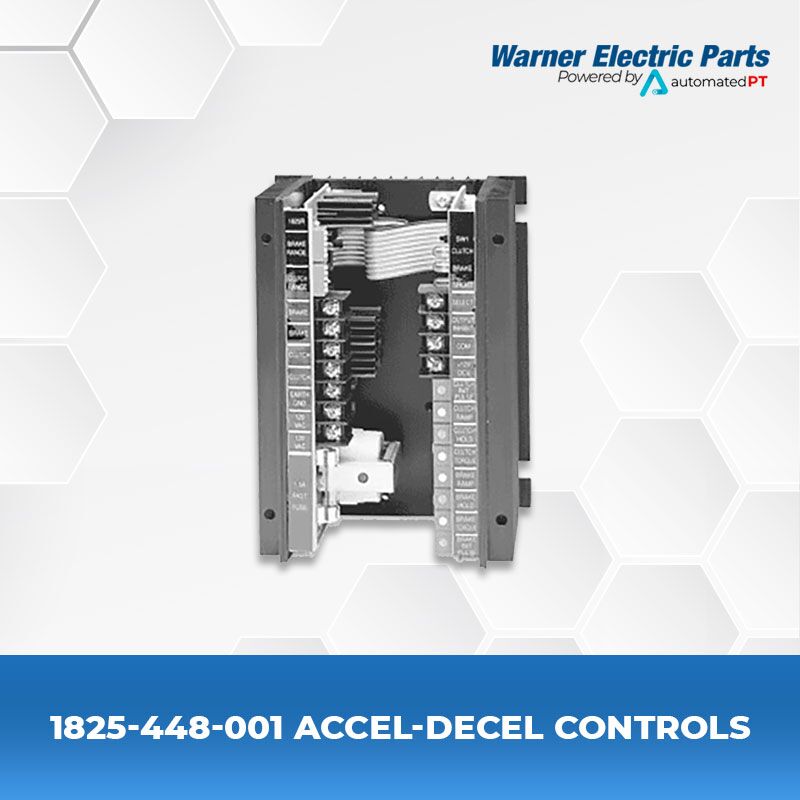

Warner Electric 1825-448-001 Accel-Decel Controls

  • 1825-448-001
  • Adjustable Accel-Decel Unit
  • Input Voltage: 120 VAC
  • Output Current: Current driven PWM
  • Auxiliary Supply: 12 VDC 250 mA

Model No – CBC-1825-R
Input Voltage – 120 VAC
Output Voltage – 90 VDC
Part No – 1825-448-001

CBC-1825R Series

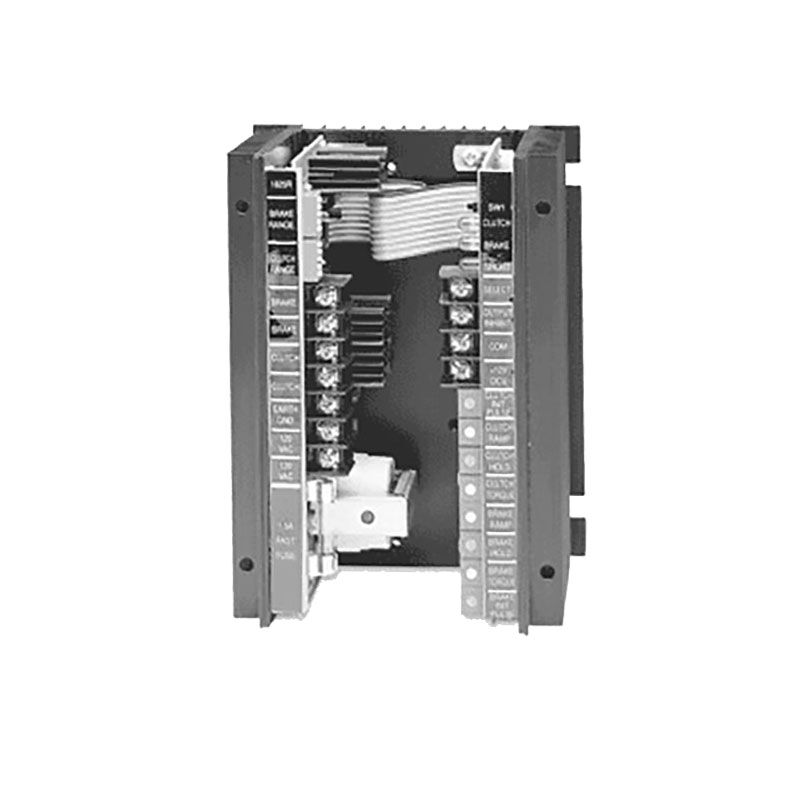

The CBC-1825R is designed to provide consistent and repeatable acceleration and deceleration when used with Warner Electric 90 VDC clutches and brakes. Current to each channel is introduced along an adjustable time ramp and monitored continuously. Adjustments include initial pull-in pulse, hold level, maximum torque, and ramp time. LEDs are provided on the circuit board to indicate power is applied to the clutch or brake unit.



Note: It is recommended that the auto-gap springs be removed from the clutch and brake for successful accel-decel application.

Manuals and Specifications

pdf icon 1
Catalog Warner Electric Clutch & Brake Controls Adjustable Torque Catalog
