Warner Electric 5130-273-053 Ceramic Faced Electro Pack

PRODUCT DESCRIPTION

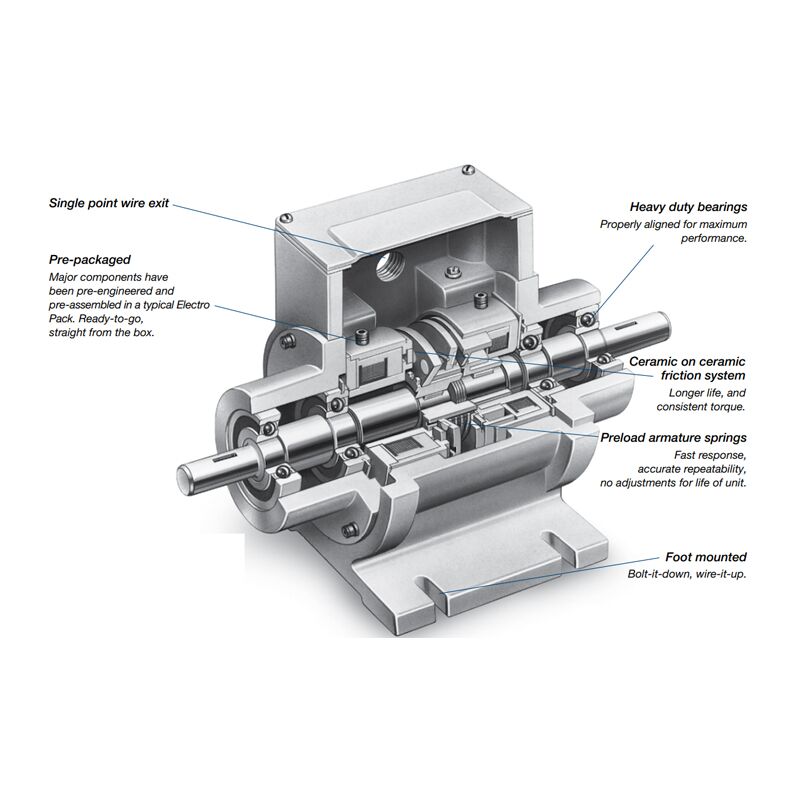

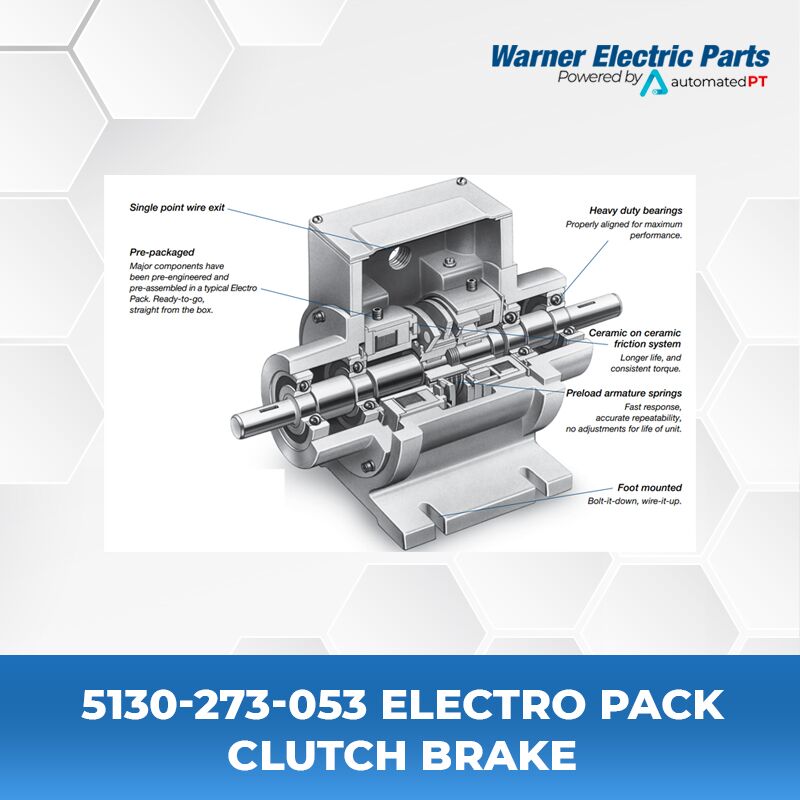

The Warner Electric 5130-273-053 (EP-250) is a rugged, pre-assembled clutch and brake combination contained in a totally enclosed, foot-mounted housing. This specialized configuration features high-performance ceramic wear faces engineered specifically for ultra-high-cycle and demanding industrial start-stop environments. The “bolt-it-down and wire-it-up” architecture delivers an integrated, factory-aligned system that bypasses structural optimization delays and field alignment tasks. Its heavy-duty enclosed housing isolates physical friction wear particulates while completely shielding internal components against environmental contamination.

FEATURES

• Ceramic Friction Faces: Premium ceramic wear-surfaces deliver superior heat dissipation and extended life cycles in high-frequency operations.
• Total Protection: Enclosed housing keeps environmental contaminants out and internal wear particles in.
• Maintenance Free: Never requires oil or grease replenishment and automatically self-adjusts for normal friction face wear.
• Pre-Packaged Convenience: Over 20 major components are pre-engineered and factory-assembled into a single unit to maximize production uptime.
• Precise Performance: Factory alignment ensures uniform deceleration, maximum start-stop performance, and consistent torque.
• Versatile Compatibility: Designed to mate easily with industry-standard motors and reducers using v-belts, pulleys, or sprockets.

SELECTION PROCEDURE

1. Determine Shaft Speed: Identify the RPM at the Electro Pack mounting location.
2. Check Horsepower: Analyze the horsepower requirement of the application.
3. Size Verification: Use the intersection of horsepower and speed on standard selection charts to confirm EP-250 is the correct size.
4. Torque Check: Ensure the static torque rating (70 lb. in.) meets the load movement and stopping requirements.

HOW TO ORDER

• Specify Base Unit: Use Part Number 5130-273-053 for the specialized 90V DC ceramic-faced version of the EP-250.
• Verify Voltage: Ensure the power supply matches the 90V DC coil requirement.
• Accessories: Verify if matching external adjustable torque controls are needed to optimize response times.
• Control Pairing: Recommended for use with Warner Electric controls to achieve optimal start and stop positioning.
