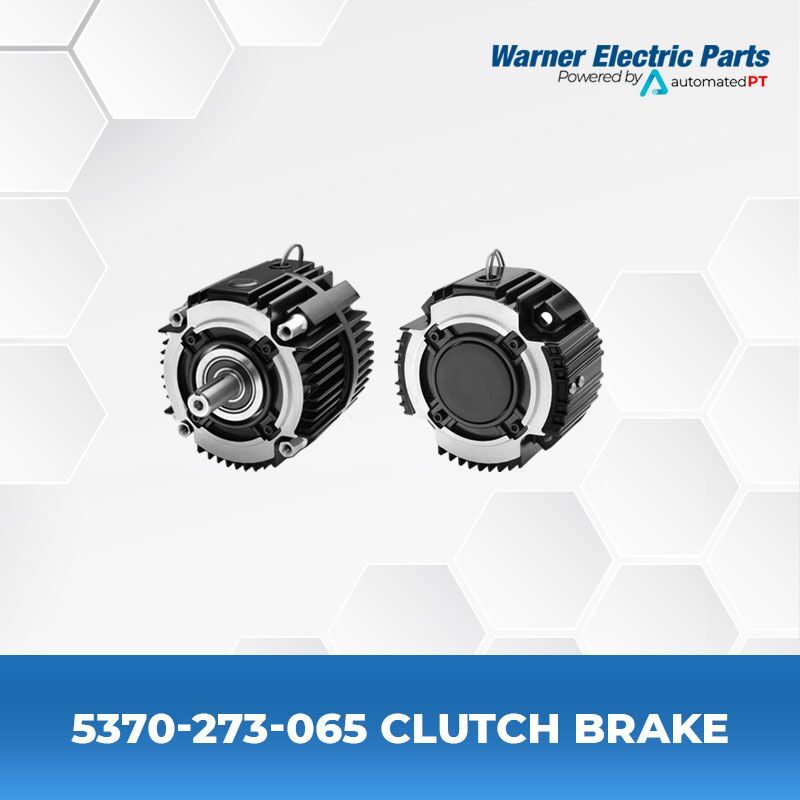

Warner Electric 5370-273-065 Clutch Brake

  • 5370-273-065
  • EUM Series
  • Model Size: EUM-180
  • Voltage: 90 VDC
  • Static Torque: 30 lb. ft.
  • Max RPM: 3600
  • NEMA Frame Size: 182C/143TC 184C/145TC

Model No. – EUM-180-1020
Voltage D.C. – 90
Gen 2 No – 5370-273-214
Gen 2 Kit – 5370-23
Gen 2 Cover Kit – 5370-101-076
Original Part No – 5370-273-065

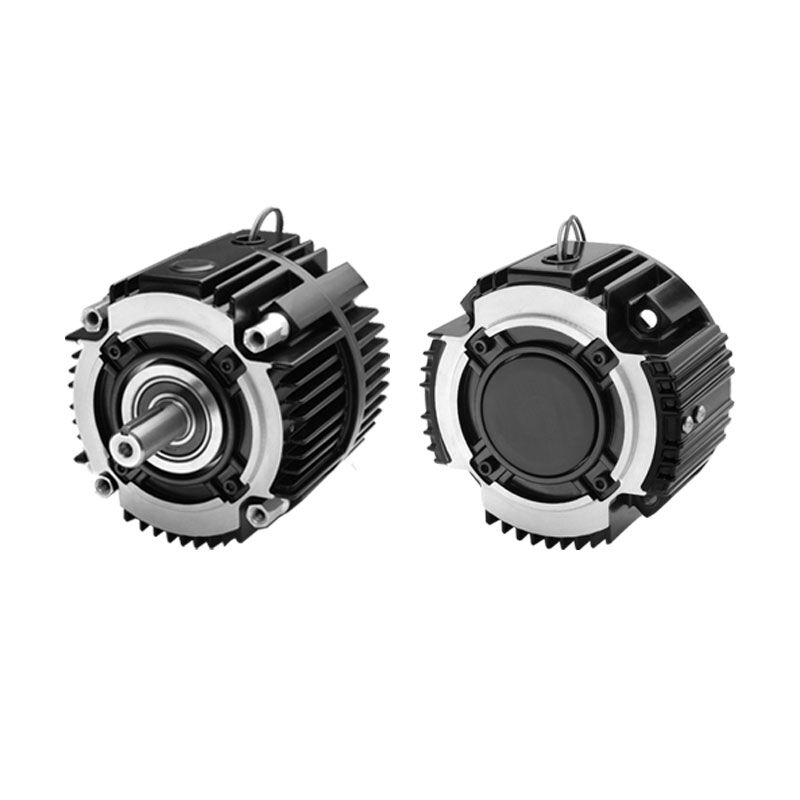

Enclosed UniModule
Preassembled Units Offer Clean, Quiet Operation

EUM Series
Totally Enclosed Clutch and Brake Packages

5 sizes
3 combinations
16 to 95 lb. ft. torque range

Totally enclosed, rugged enclosure keeps wear particles in and contaminants out. Finned for rapid heat dissipation and long life.

Accessories Warner Electric
a. Conduit Box NEMA 4 and UL listed, available in standard and washdown versions.

b. Fan Kit (UM and EUM 1020 only) Extends the thermal capacity of an EUM. Mounts between motor and EUM, includes shaft, fan, guard and hardware. Available in standard black coating or food grade approved white coating.

c. Integral Control The CBC-150 dual channel control fits into the cover of the conduit box. It is suitable for AC side switching (triac or relay) and includes high performance suppression.

d. Mounting Brackets Two styles of mounting brackets are available for simplified installation. The base mount is used with the 2030 configuration. A motor mount is also available and provides sturdy support for a 1020 or 1040 combination with motor.

Accessories
Description EM Size Part No
Conduit Box All sizes 5370-101-042
Control CBC-150-1
CBC-150-2
6004-448-001
6004-448-002
Base Mount Kits
for 2030
50
50/180*
210
5370-101-004
5370-101-002
5371-101-001
Motor Mount Kits
for 1020, 1040
50/100
50/100/180*
210/215
5370-101-078
5370-101-079
5371-101-012
Fan Kits
for 1020
50/100
180
210
5370-101-055
5370-101-054
5371-101-029

Gen2 units are direct replacements for original models

  • Changes to the housing fin design increases heat dissipation capacities, especially in the enclosed configuration of the UniModule.
  • Improved input to output axis design reduces vibration and improves noise and wear factors.
  • Use of custom designed mounting bolts allows for conduit box location directly on top of the unit.
  • Bolt hole patterns are re-positioned for ease of mounting.
  • Add-on enclosure cover kits allow for a unit to be upgraded to an enclosed unit in the field without replacing the clutch/brake. A cover plate bolts to both sides of the unit creating a completely enclosed brake package, which keeps contaminates out and wear particles in, for clean, quiet operation.

Manuals and Specifications


pdf icon 1
Catalog Warner Electric EUM and EUM-W Series Enclosed UniModule Catalog
Service Parts Warner Electric EUM/EUM-W Series Service Parts
