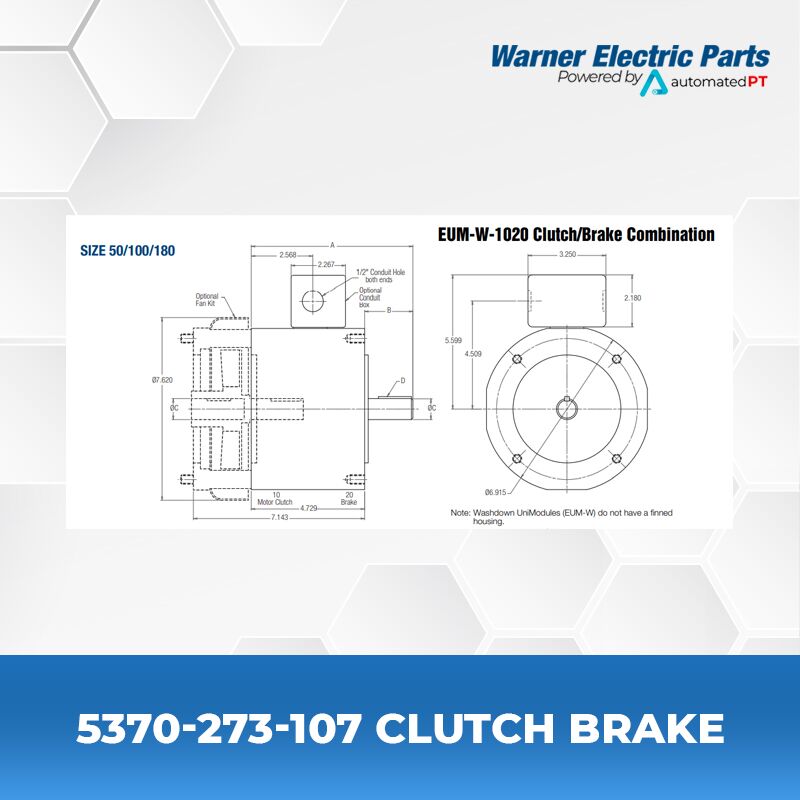

1020 Configuration – Washdown EUM-W
Model No. – EUM-100-1020W
Voltage D.C. – 90
GEN 2 Part No – N/A

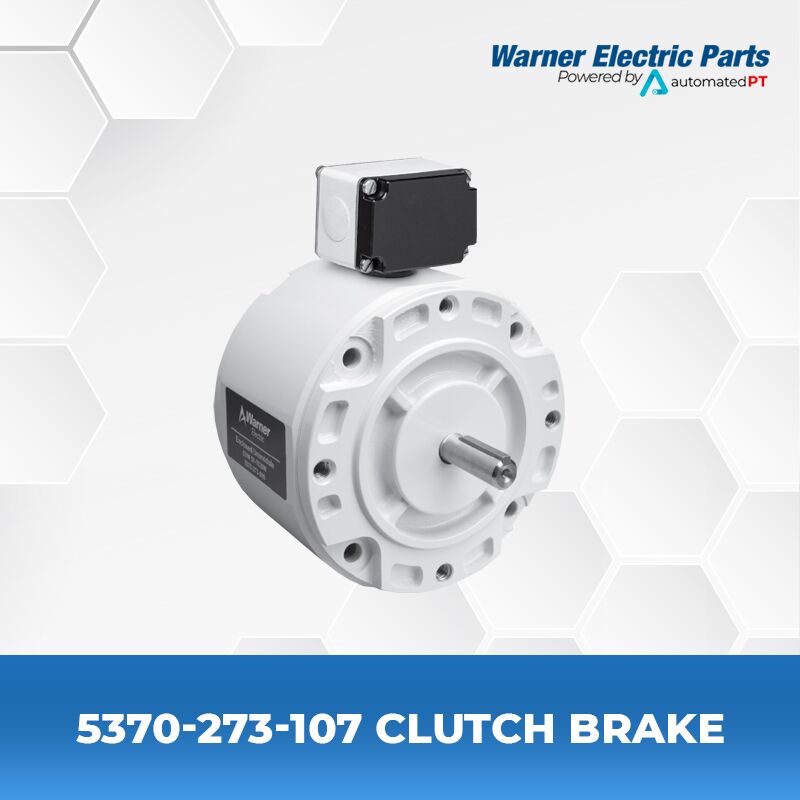

Original Part No – 5370-273-107
One Piece Preassembled Clutches and Clutch/Brakes
16 to 95 lb. ft. torque range

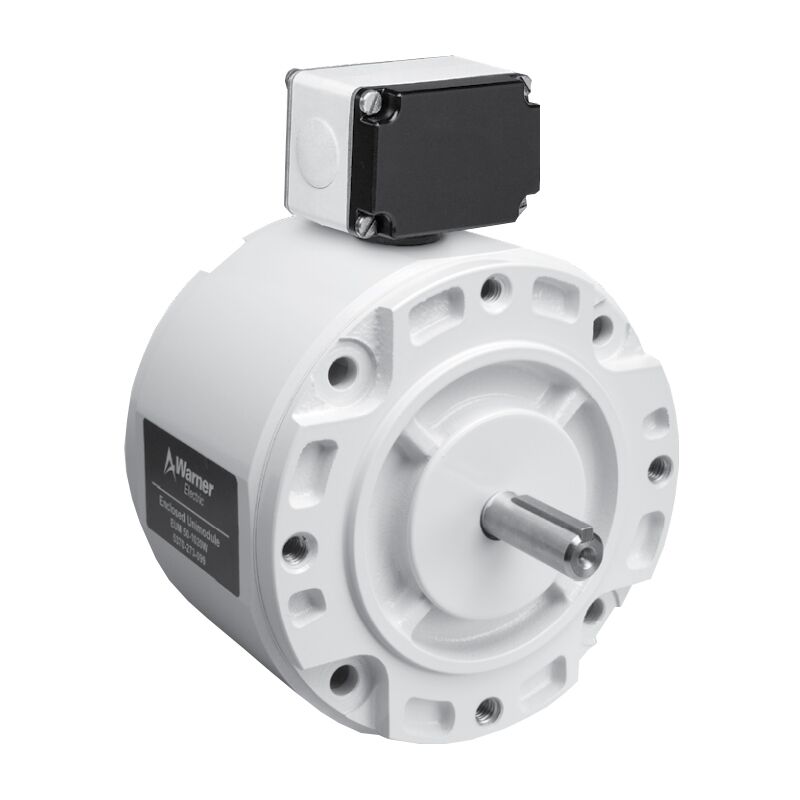

The washdown version of the EUM uses stainless steel shafting, USDA approved coating, corrosion resistant fasteners and special seals.
Accessories Warner Electric
Electro Modules can be fitted with several accessories to extend their capacity and ease of mounting.
a. Conduit Box – NEMA 4 and UL listed, available in standard and washdown versions.
b. Integral Control – The CBC-150 dual channel control fits into the cover of the conduit box. It is suitable for AC side switching (triac or relay) and includes high performance suppression.
c. Fan Kit (UM and EUM 1020 only) – Extends the thermal capacity of an EUM-W. Mounts between motor and EUM-W, includes shaft, fan, guard and hardware. Available in standard black coating or food grade approved white coating.
d. Mounting Brackets – Two styles of mounting brackets are available for simplified installation. The base mount is used with the 2030 configuration. A motor mount is also available and provides sturdy support for a 1020 or 1040 combination with motor.
|Description||EM Size||Part No|
|Conduit Box||All sizes||5370-101-045|
|Base Mount Kit|
|Motor Mount Kit|
for 1020, 1040
