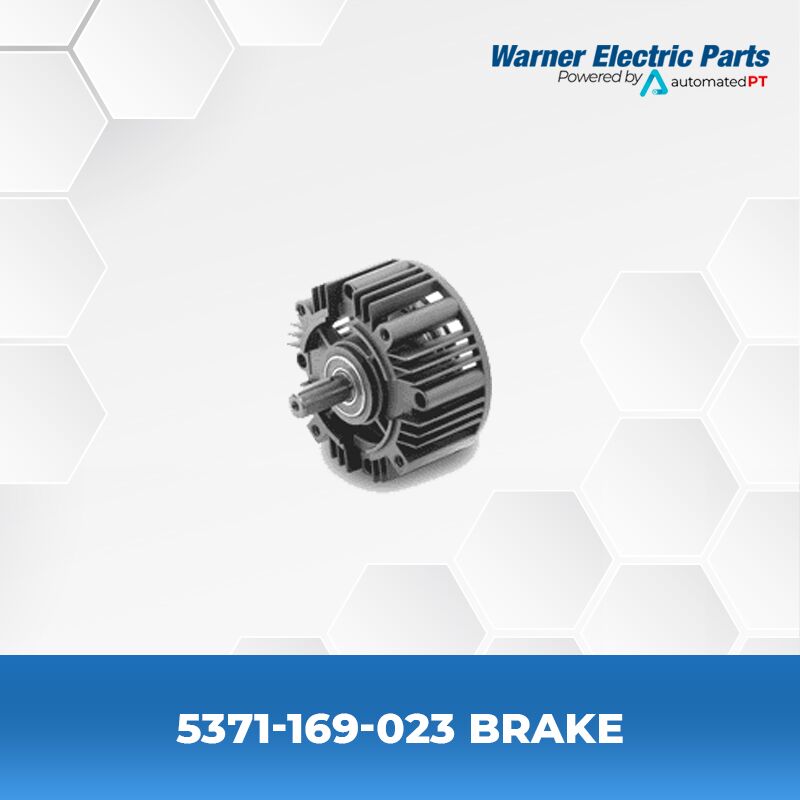

Warner Electric 5371-169-023 Brake

SERIES DESCRIPTION

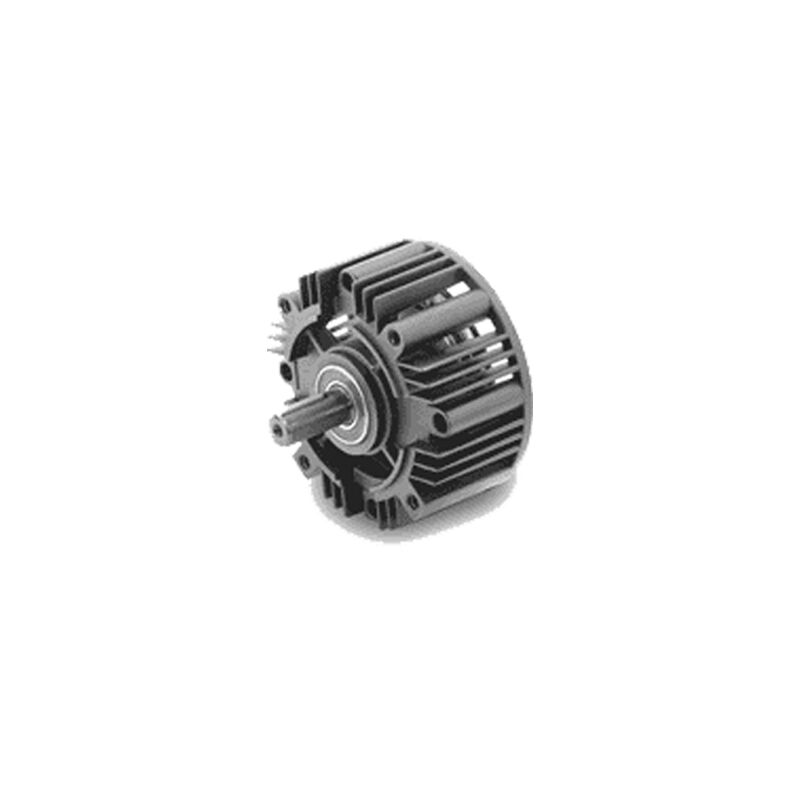

The Warner Electric EM Series (Electro Module) brake modules are individual electromagnetic units designed for modular assembly with standard C-face motors, reducers, or clutch modules. Operating on an electromagnetic power-on engagement principle, applying DC voltage energizes the coil to clamp the friction surfaces, delivering rapid, repeatable stopping and cycling. They are easy to install, maintenance-free, and require no lifetime lubrication.

FEATURES

• Modular Flexibility: Directly mounts between NEMA C-face motors and gear reducers or combines with clutch modules for complete clutch/brake packages.
• Rapid, Controllable Stopping: Delivers high static torque (95 lb. ft.) for heavy-duty industrial braking cycles.
• Maintenance-Free: Self-adjusting design requires no routine lubrication or life-cycle adjustments.
• Rotatable Conduit Box: Integrated mounting bolts allow flexible positioning for clean electrical wiring.
• Versatile Configurations: Operates standalone as a motor brake or combines into 10/20 and 20/30 systems.

SELECTION PROCEDURE

1. Step 1: Match NEMA Frame Size—Select module size based on prime mover or reducer frame requirements (Size 210 fits 213C/182TC and 215C/184TC frames).
2. Step 2: Determine Technical Requirements—Verify required static torque and calculate thermal heat dissipation based on load inertia and cycle rates.
3. Step 3: Choose Mounting & Voltage—Select corresponding coil voltage and configuration (standalone brake or combined with clutch).

HOW TO ORDER

• Specify Part & Model: Order using part number 5371-169-023 or model EM-210-20 (24 VDC).
• Select Power Supply / Control: Select Appropriate Power Supply/Control. See the Controls Section beginning on page CTL-1.
• Optional Accessories: Conduit box (5370-101-042), base mount kit (5371-101-001), or motor mount kit (5371-101-012) can be added as needed.
