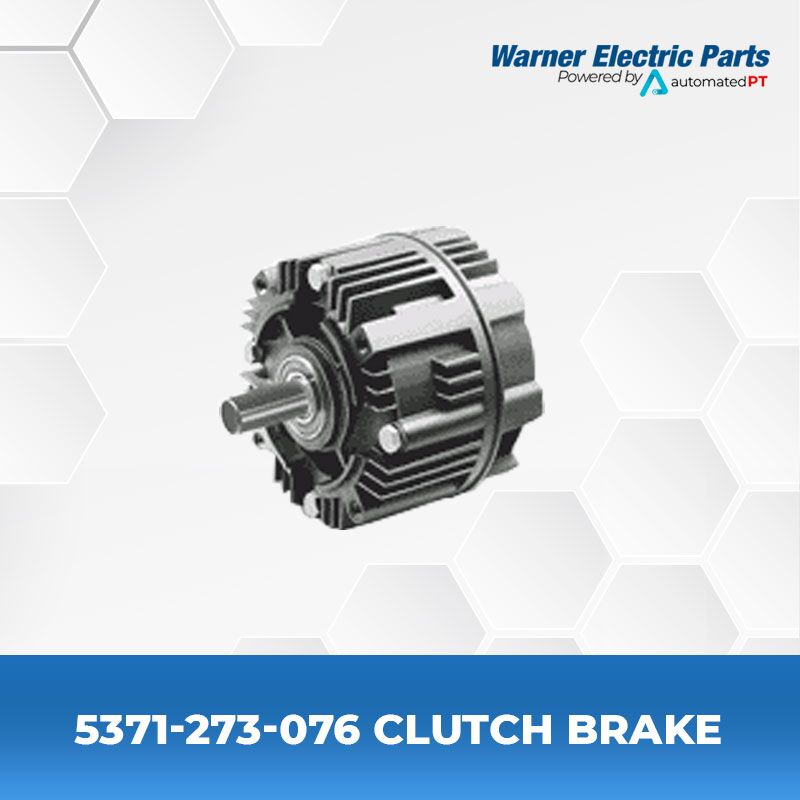

Warner Electric 5371-273-076 Clutch Brake

  • 5371-273-076
  • UM Series
  • Model Size: UM-215
  • Voltage: 6 VDC
  • Static Torque: 95 lb. ft.
  • Max RPM: 3600
  • NEMA Frame Size: 213TC/215TC

1020 Motor Clutch/Brake
Model No. – UM-215-1020
Voltage D.C. – 6
GEN 2 Part No – N/A
Original Part No – 5371-273-076

UniModule
One Piece Preassembled Clutches and Clutch/Brakes

UM Series
C-face or Base Mounted Units

5 sizes
20 combinations
16 to 95 lb. ft. torque range

UniModule clutches and clutch/brake packages offer the ultimate in installation convenience.

Can be motor or reducer mounted, or used as a separate drive unit powered from a prime mover.

Accessories Warner Electric
Electro Modules can be fitted with several accessories to extend their capacity and ease of mounting.

a. Conduit Box – NEMA 4 and UL listed, available in standard and washdown versions.

b. Mounting Brackets – Two styles of mounting brackets are available for simplified installation. The base mount is used with the 20/30 and 30/40 configurations. A motor mount is also available and provides sturdy support for 20, 10/20 and 10/40 units and motor.

c. Cover Kit – For sizes 50, 100 & 180
Each cover kit includes two (2) vent covers, two (2) gaskets and four (4) screws needed to convert a vented design into an enclosed design. For brake only modules, a cover plate is included to enclose the back of the brake.

Accessories
Description EM Size Part No
Conduit Box All sizes 5370-101-042
Base Mount Kit
for 2030, 3040		 50/100
180
210/215		 5370-101-004
5370-101-002
5371-101-001
Motor Mount Kit
for 1020, 1040		 50/100
180
210/215		 5370-101-078
5370-101-079
5371-101-012
Cover Kit 50/100/180 5370-101-076

Gen2 units are direct replacements for original models

  • Changes to the housing fin design increases heat dissipation capacities, especially in the enclosed configuration of the UniModule.
  • Improved input to output axis design reduces vibration and improves noise and wear factors.
  • Use of custom designed mounting bolts allows for conduit box location directly on top of the unit.
  • Bolt hole patterns are re-positioned for ease of mounting.
  • Add-on enclosure cover kits allow for a unit to be upgraded to an enclosed unit in the field without replacing the clutch/brake. A cover plate bolts to both sides of the unit creating a completely enclosed brake package, which keeps contaminates out and wear particles in, for clean, quiet operation.

Manuals and Specifications

pdf icon 1
Catalog Warner Electric UM Series Catalog
Service Parts Warner Electric UM Series Service Parts
