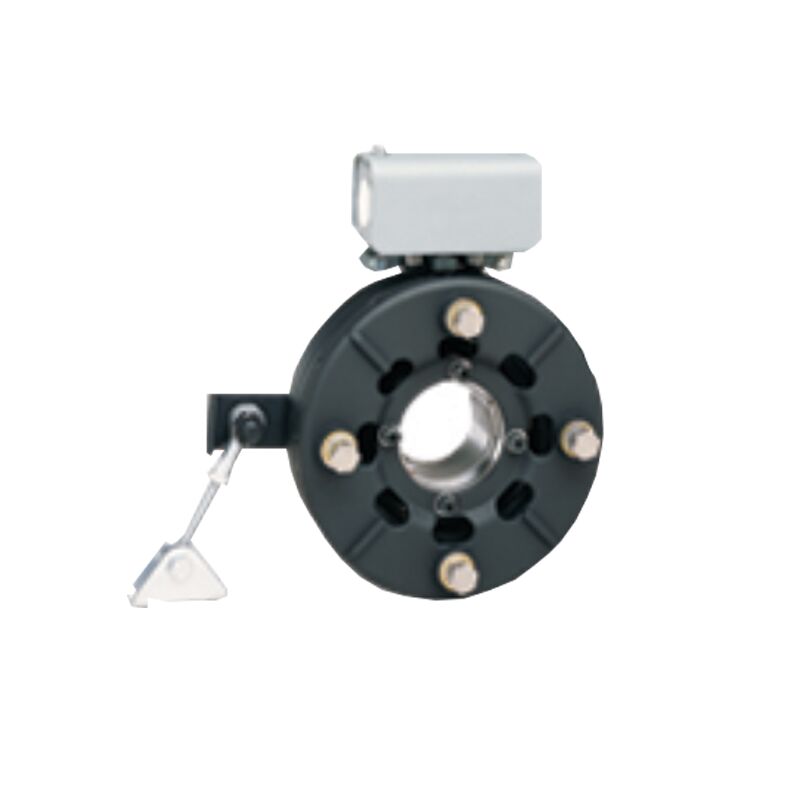

Warner Electric 5382-101-002 FB Series Brakes

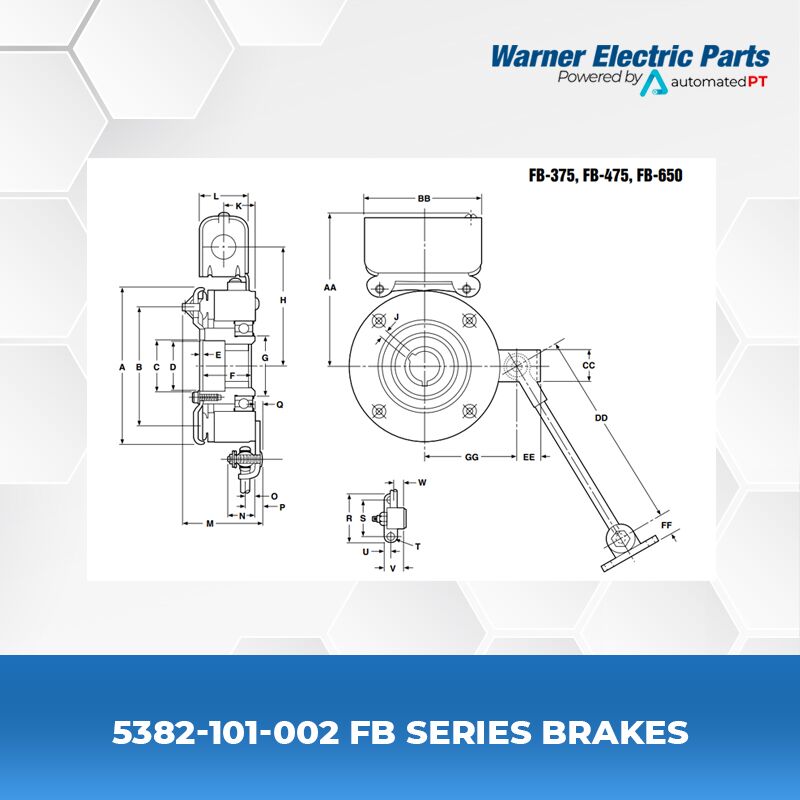

SERIES DESCRIPTION

The Warner Electric FB Series Electrically Released Brakes utilize permanent magnets to provide fail-safe braking. The brake remains engaged until a DC voltage is applied to the electromagnetic coil, creating an opposing magnetic field that releases the armature.

The 5382-101-002 is the Shaft Adapter for the larger FB-650 model size, specifically designed to mate the brake to a 1-5/8″ motor shaft. In the FB-650/825 series, the shaft adapter is a critical component that keys the brake unit to the power transmission shaft.

Key Features

• High Torque Capacity: Designed for the FB-650 series, capable of holding loads up to 56 lb. ft.

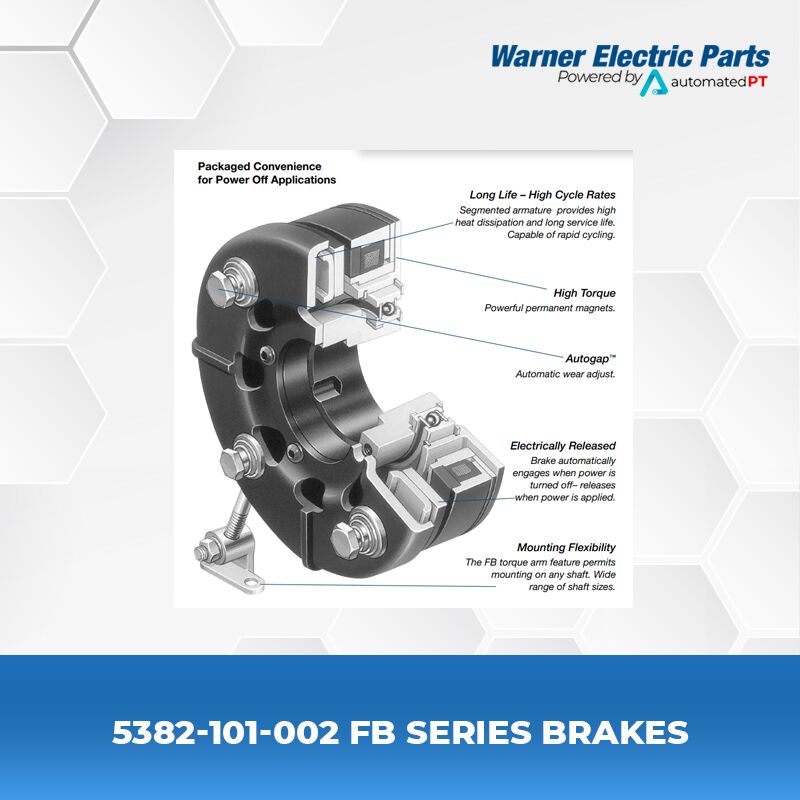

• Autogap® Technology: Automatically maintains the proper air gap as friction surfaces wear, ensuring consistent performance without manual intervention.
• Snap-Action Engagement: Permanent magnets provide fast, consistent stopping power the moment current is interrupted.
• Precision Bore: Specifically machined for 1.625-inch shafts with standard industrial keyways.

Installation Note
As a shaft-mounted component, the FB-650 requires a compatible Torque Arm Assembly to prevent the magnet housing from rotating during operation. Ensure the shaft adapter is securely keyed and locked to the motor shaft per the manufacturer’s service manual.
