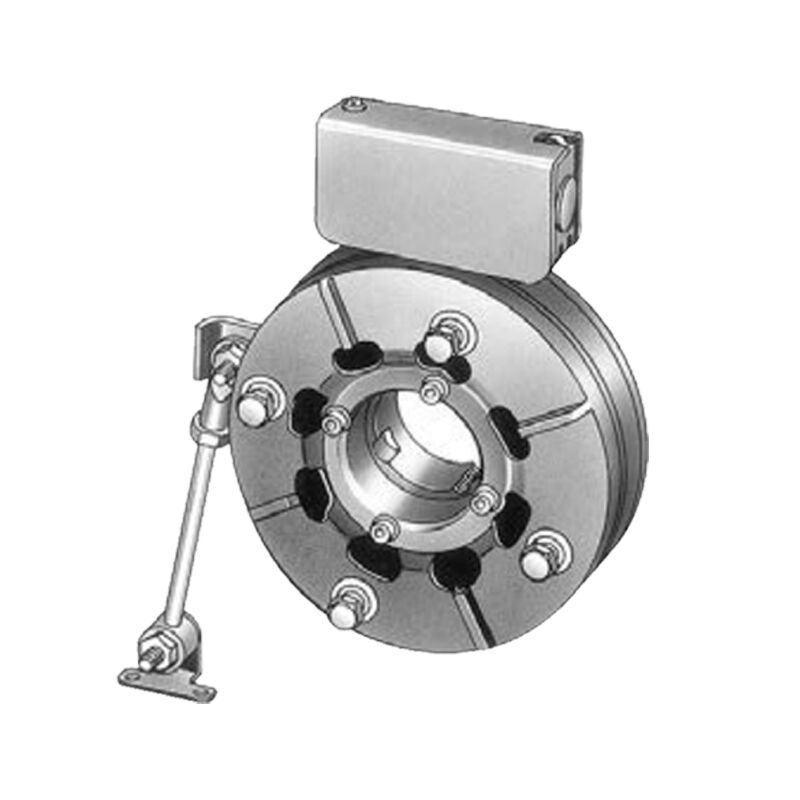

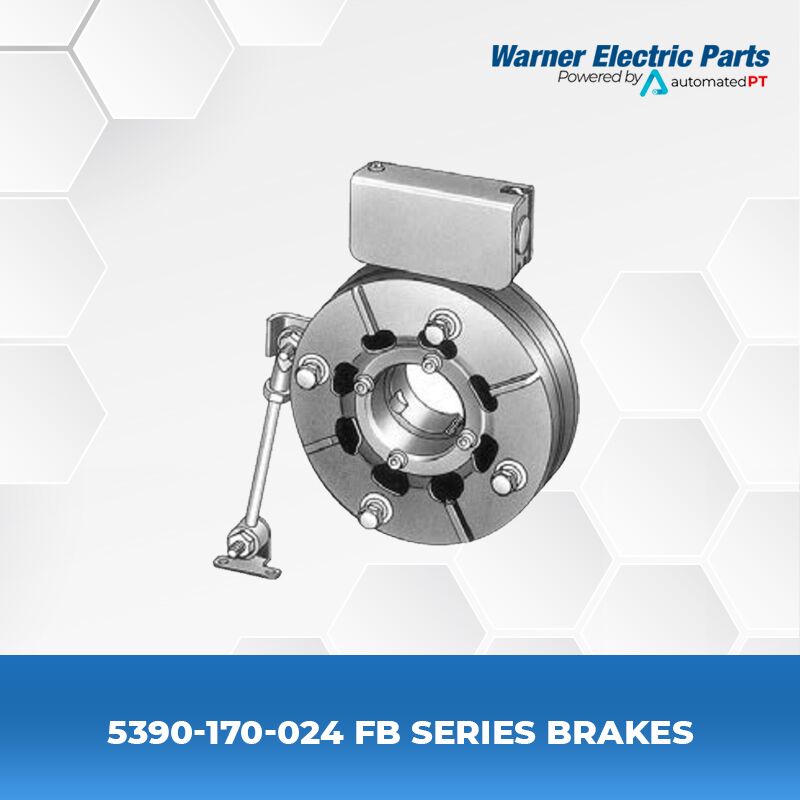

Warner Electric 5390-170-024 FB Series Brakes

SERIES DESCRIPTION

The Warner Electric FB Series Electrically Released Brakes utilize permanent magnet technology to provide reliable, fail-safe braking. The brake remains engaged until 24 VDC is applied to the electromagnetic coil, creating an opposing magnetic field that releases the armature.

The 5390-170-024 is a 24 VDC unit specifically configured with a 1/2″ bore. This model provides the same high-cycle performance and reliability as the rest of the FB-375 series but is tailored for smaller 0.500-inch shafts typically found on smaller motors or specialized drive components.

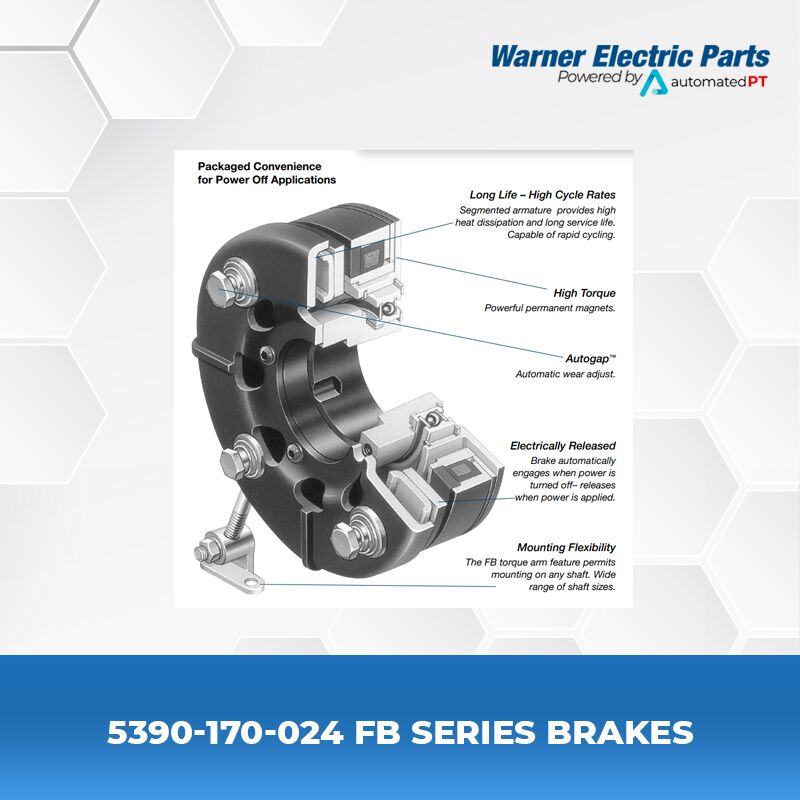

Key Features

• 24V Low Voltage Design: Seamlessly integrates with PLC controls and modern automated systems.
• Autogap™ Technology: Automatically maintains the proper air gap as friction surfaces wear, eliminating manual adjustment for the life of the unit.
• Fail-Safe Reliability: Permanent magnets ensure the brake engages immediately upon power loss.
• Heat Dissipation: Segmented armature design allows for rapid cooling during frequent cycling.

Installation Note
This is a shaft-mounted unit and requires a Torque Arm Assembly (such as part number 5380-101-007) to anchor the magnet housing and allow the brake to exert torque effectively.
