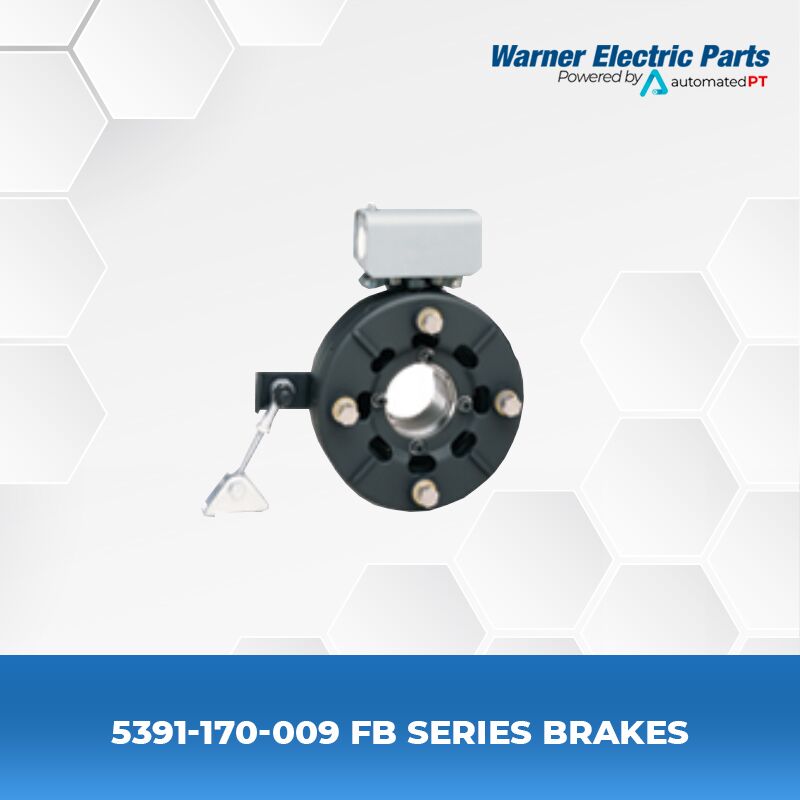

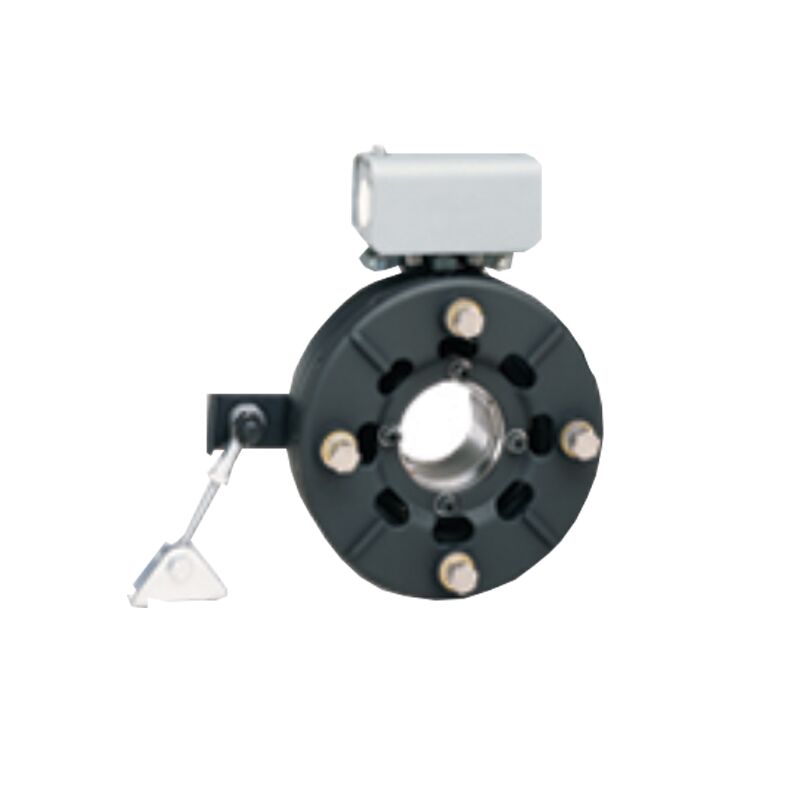

Warner Electric 5391-170-009 FB Series Brakes

SERIES DESCRIPTION

The Warner Electric FB Series Electrically Released Brakes utilize permanent magnet technology to provide reliable, fail-safe braking. The brake remains engaged until 90 VDC is applied to the electromagnetic coil, which creates an opposing magnetic field to release the armature.

The 5391-170-009 is an FB-475 model size, offering double the torque of the 375 series. Configured with a 1-inch bore, this 90V unit is built for heavier industrial loads that require fail-safe protection and high-cycle reliability.

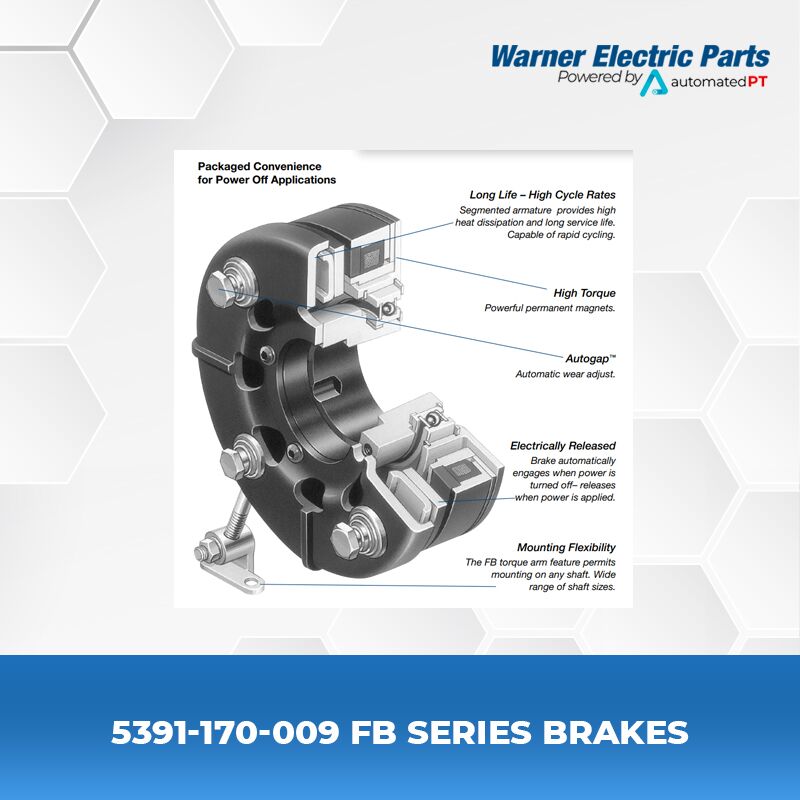

Key Features

• High Static Torque: Provides 21 lb. ft. of holding power, ideal for vertical loads or heavy conveyors.
• Autogap™ Technology: Automatically maintains the proper air gap as friction surfaces wear, ensuring consistent performance for the life of the brake.
• Fail-Safe Reliability: Permanent magnets ensure the brake engages immediately upon power loss.
• Snap-Action Response: Designed for high-cycle applications requiring rapid engagement and release.

Installation Note
As a shaft-mounted unit, the FB-475 requires a compatible Torque Arm Assembly to secure the magnet housing. For this larger frame, ensure the mounting surface and torque arm are rated for at least 21 lb. ft. of force.
