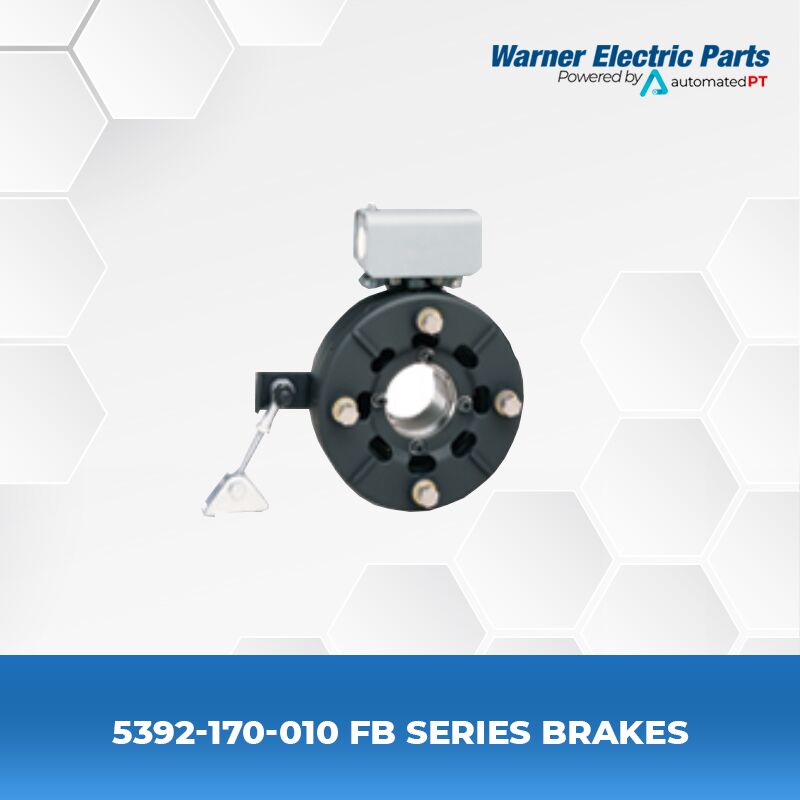

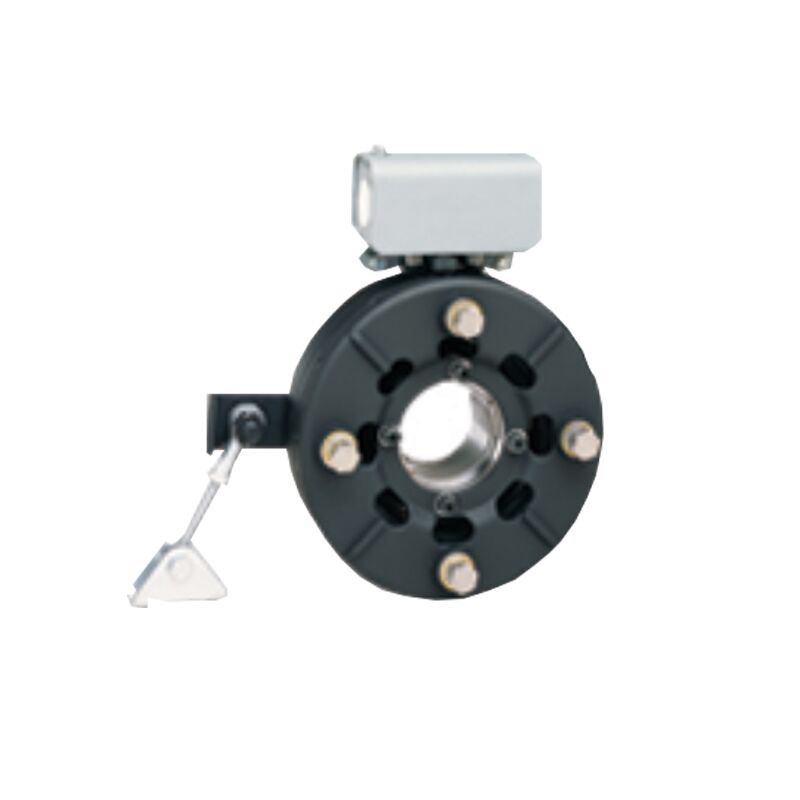

Warner Electric 5392-170-010 FB Series Brakes

SERIES DESCRIPTION

The Warner Electric FB Series Electrically Released Brakes provide robust, fail-safe braking using permanent magnet technology. The brake is held in the engaged position by magnets until 6 VDC is applied to the coil, creating an opposing field that releases the armature.

The 5392-170-010 is a heavy-duty FB-650 model size. With 56 lb. ft. of static torque, this unit is designed for significant industrial loads. The 1-inch bore allows it to mount directly to larger motor shafts, providing reliable emergency stopping and holding power.

Key Features

• High Holding Torque: 56 lb. ft. capacity for heavy-duty industrial applications.

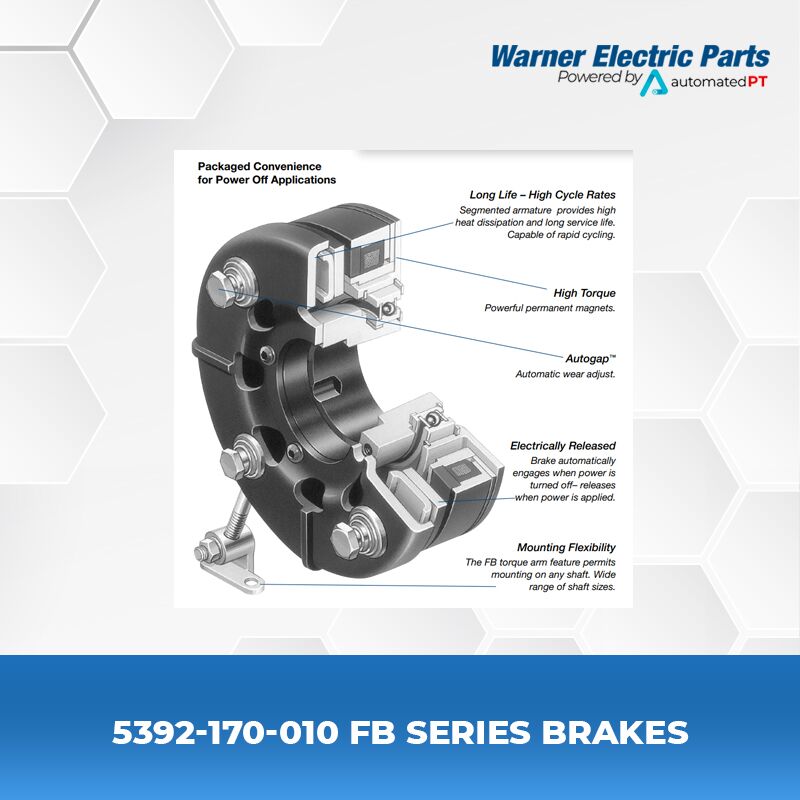

• Autogap™ Technology: Automatically maintains the air gap as friction surfaces wear, ensuring consistent release and engagement throughout the unit’s life.
• 6V Low Voltage Coil: Specialized for mobile equipment and battery-operated industrial vehicles.
• Segmented Armature: Optimized for heat dissipation during dynamic stops at speeds up to 3600 RPM.

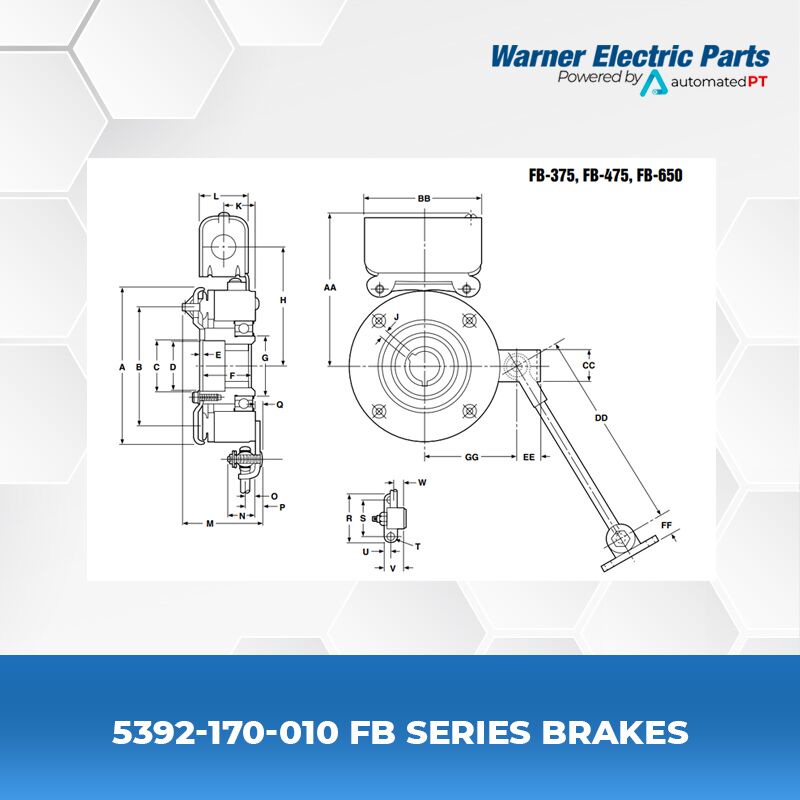

Installation Note
Because of the high torque generated by the FB-650, the Torque Arm Assembly must be securely anchored to a rigid frame member to prevent the magnet housing from rotating when the brake engages.
