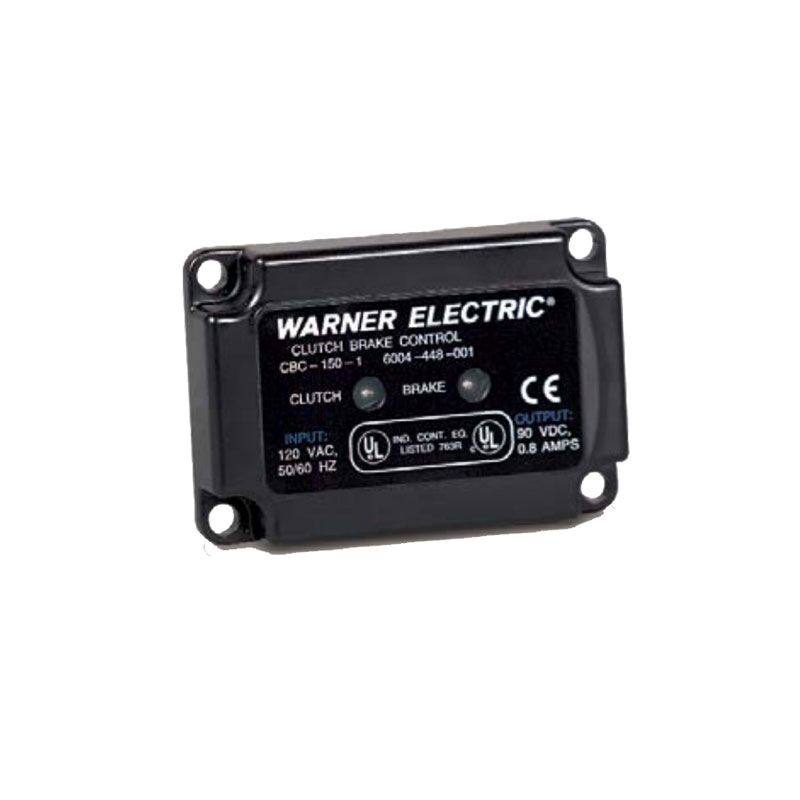

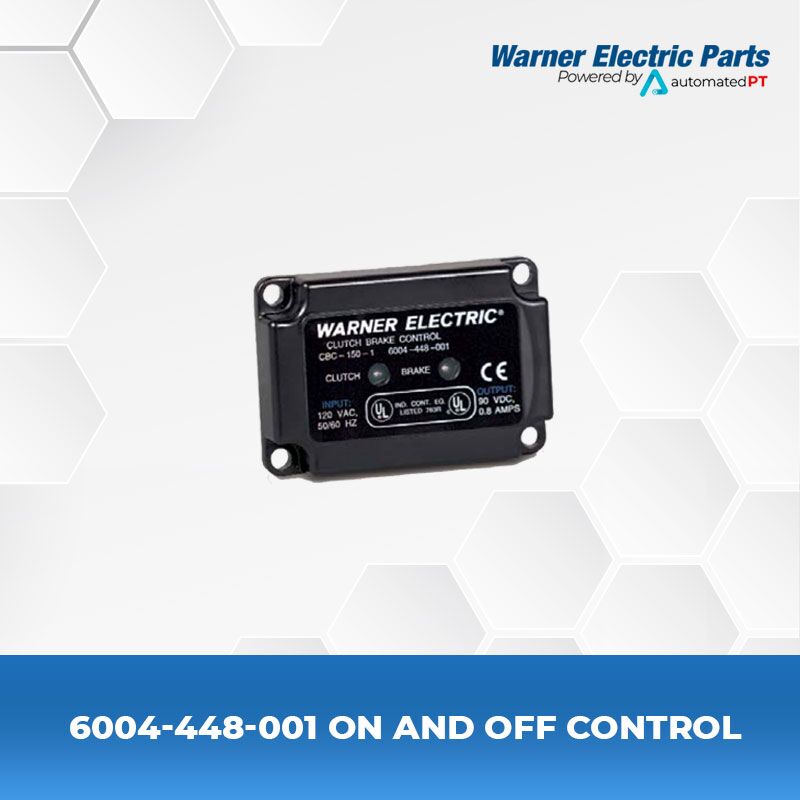

Warner Electric 6004-448-001 On and Off Control

  • 6004-448-001
  • On-Off Control
  • No. of Channels: 2
  • Torque Control Channels: No
  • A.C. Input Voltages: 120
  • D.C. Output Voltages: 90
  • OverExcitation: No
  • Customer Supplied Switching Options: Relay A.C

Item Number: 6004-448-001
Description: CBC-150-1/Integral/Conduit Box Mounted Controls Dual Channel control for clutch/brake to mount inside module conduit box.
Product Family: Controls for Clutches & Brakes

Model NumberCBC-150-1
DescriptionIntegral/Conduit Box Mounted Controls Dual Channel control for clutch/brake to mount inside module conduit box.
TypeOn – Off Controls
FamilyControls for Clutches and Brakes
No. of Channels2
Input120 VAC, 50/60 Hz
Output90 VDC full wave rectified Dual .8 Amp max.
OverexcitationNo
Customer Supplied Switching OptionsRelay A.C.
Auxilliary SupplyN/A
Ambient Temperatures-20° to 113°F (-20° to 45°C)
Status IndicatorNo
Max. Cycle RateLimited by the clutch or brake, variable with application
SwitchingSPDT
UL ListedYes
Solid State Switching (max leakage current <2mA)140 VAC, 2 Amp min.
Electromechanical Switching120 VAC, 1 Amp min.
Rectification CircuitsYes dual
Suppression CircuitsYes dual
Output ChannelDual
MountsReplaces the cover of the module conduit box
Inputs120 VAC Only
All dimensions are nominal, unless otherwise noted.
