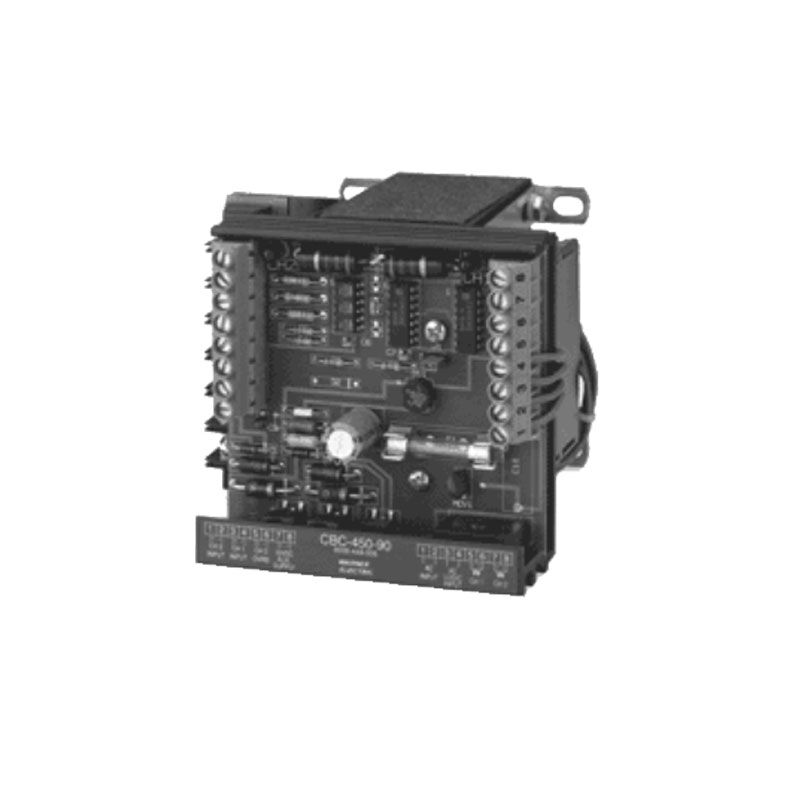

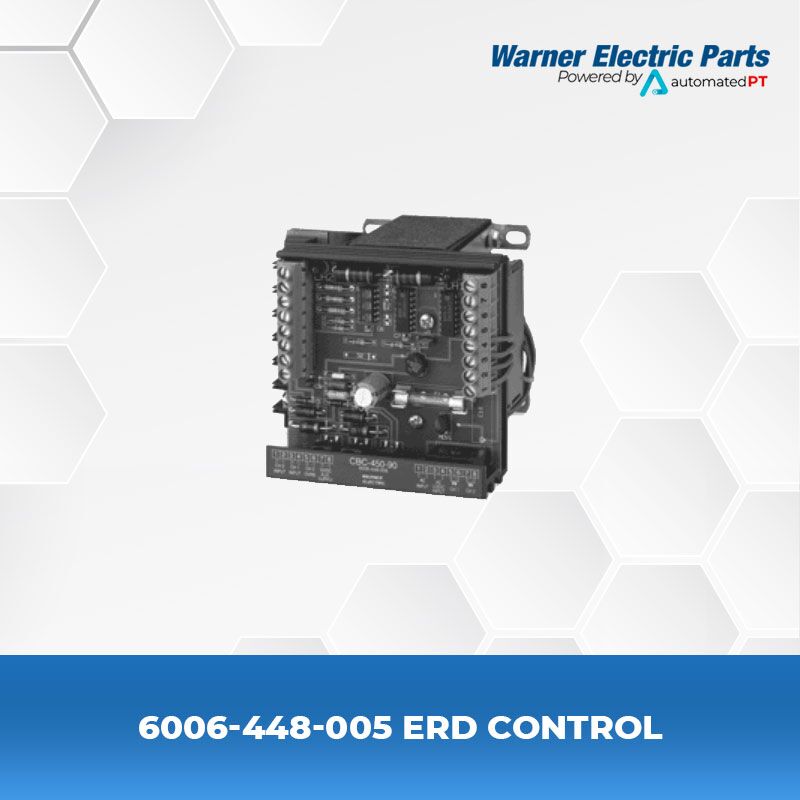

Warner Electric 6006-448-005 ERD Control

  • 6006-448-005
  • ERD Control Units
  • Model Number: CBC-450-24
  • No. of Channels: 2
  • Torque Control Channels: No
  • A.C. Input Voltages: 120
  • D.C. Output Voltages: 90
  • OverExcitation: No
  • Customer Supplied Switching Options: Relay D.C

Model No – CBC-450-24
Input Voltage – 120/220/240/380/480 VAC
Output Voltage – 24 VDC
Part No – Warner Electric 6006-448-005 ERD Control

CBC-450 Series

Dual Channel Control with Transformer for Variable Input Voltage The CBC-450 is a basic on-off control which supplies 24 or 90 VDC for electric clutch/brake operation. It offers optically isolated switching inputs for start, stop, and emergency stop (E-stop). These controls can be set up to operate the two outputs, alternately (single) or simultaneously (dual). The CBC-450 has a power transformer which will operate with a 120, 220, 240, 380 or 480 VAC

Manuals and Specifications


pdf icon 1
Catalog Warner Electric Power Supply Catalog
Catalog Warner Electric Clutch and Brake Controls Catalog
