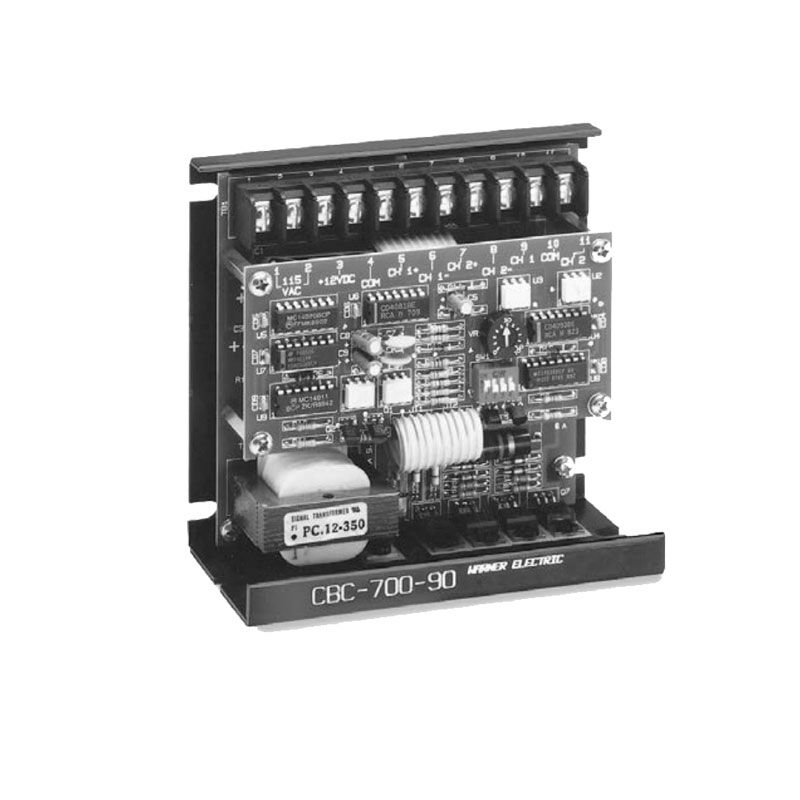

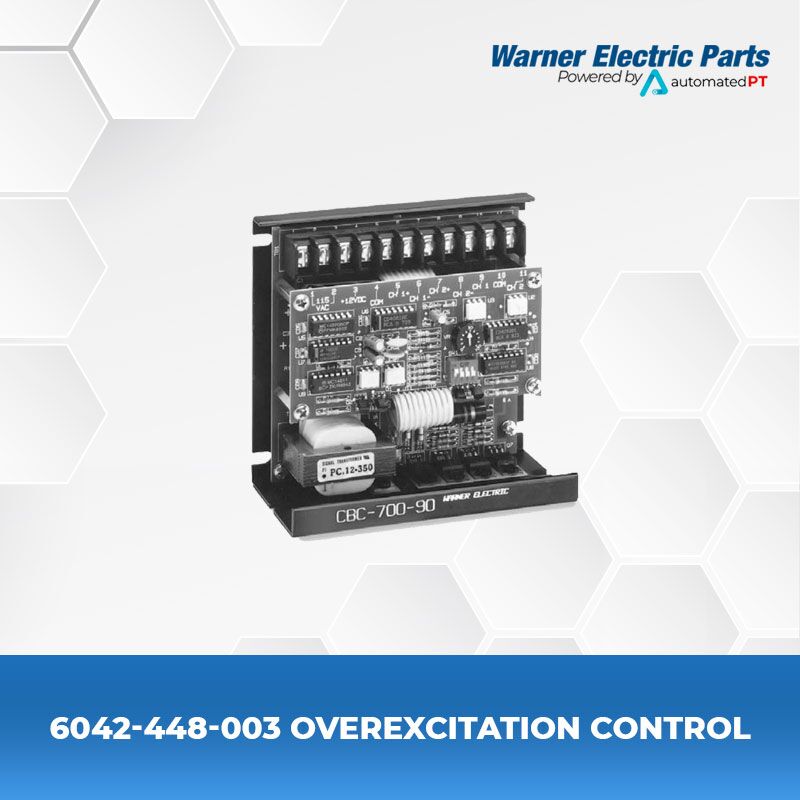

Warner Electric 6042-448-003 Overexcitation Control

Model No – CBC-700-90
Input Voltage – 120 VAC
Output Voltage – 90 VDC, 340 VDC
Part No – 6042-448-003

CBC-700 Series Control
CBC700_control_000General Purpose OEX Control The CBC-700 is a simple, compact, high performance OEX control for either 90 or 24 VDC clutches and brakes. OEX spike duration and anti-overlap time delays are adjustable. It has two optically isolated inputs.











Click on the links below to see Drawings and Specs:

Warner Electric Clutch and Brake Controls PDF
