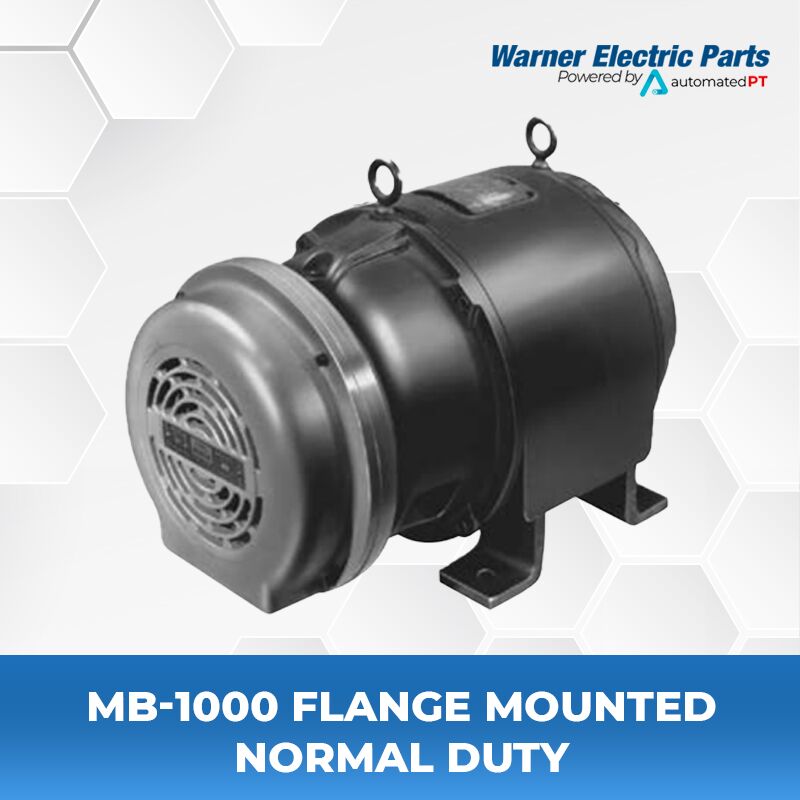

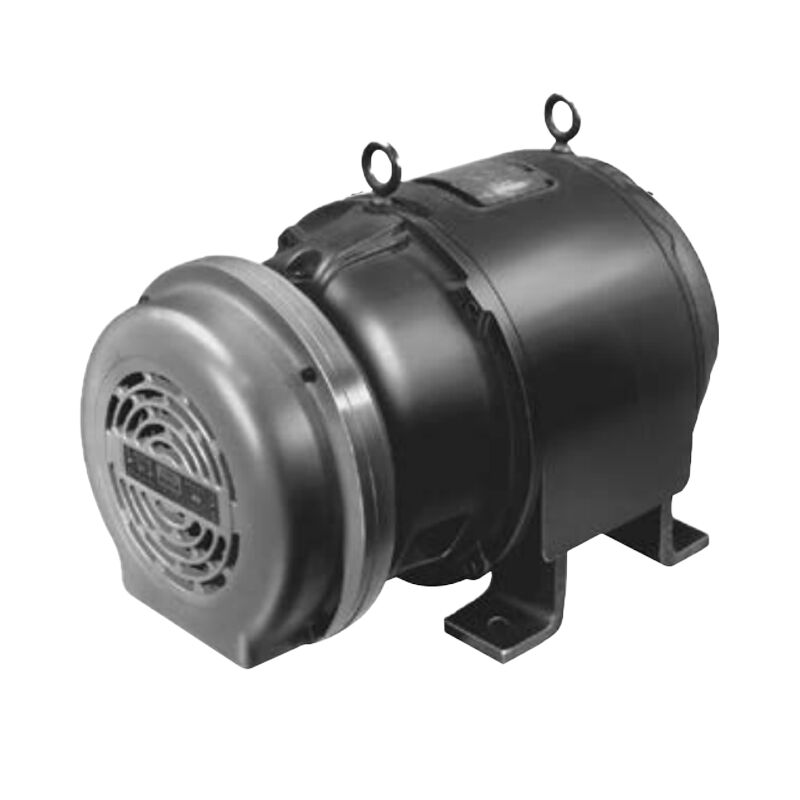

Warner Electric MB-1000 Flange Mounted Normal Duty

  • MB Series
  • Voltage: 90 VDC
  • Static Torque: 160 lb. ft.
  • Max RPM: 3600
  • NEMA Frame Size: 284C & 286C or TC

MB motor brakes are composed of a PB Series brake mounted on a NEMA C-face adapter and cover assembly.

SPECIFICATIONS

Model Name MB-1000 Flange Mounted Normal Duty
Function Brake – Primary
Compatible Frame Sizes NEMA C Face 284 & 286 or TC.
Shaft Size .500 – 2.500
Max. Rated Torque 160 lb. ft.
Max. RPM 3,600 rpm
Standard Voltage DC 90
Outside Diameter 13.25 Inches
Overall Length 4.75 Inches

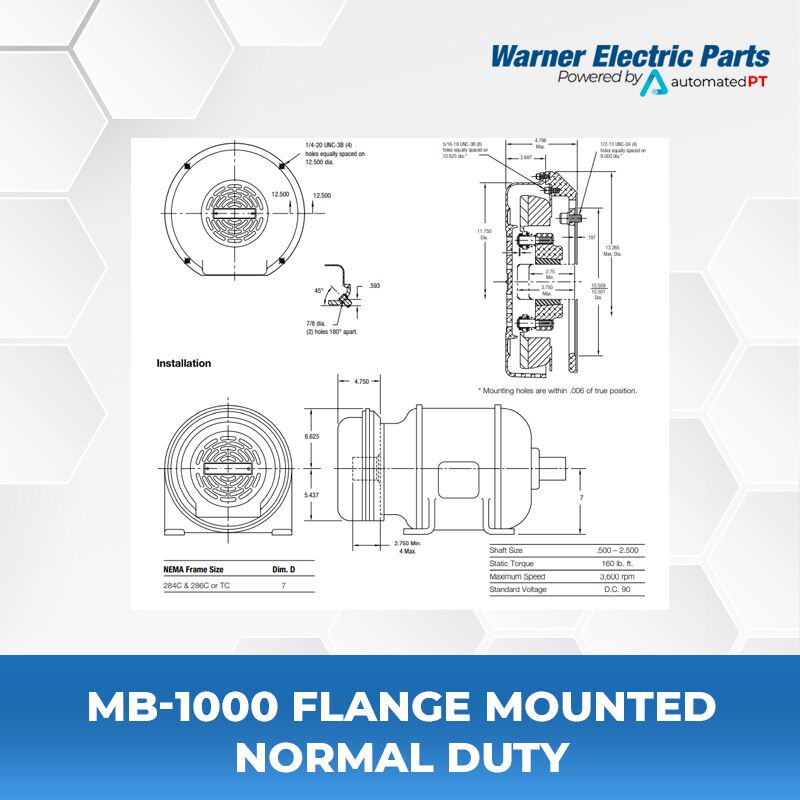

Manufacturer Drawing I-25591

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric MB-1000 Users Manual / Installation Instructions
Quick Information Warner Electric MB-1000 Normal Duty Quick Info

HOW TO ORDER

1. Confirm Product Compatability
MB-1000 Adapts to NEMA C Face, Double Shaft Motors, Frame Sizes 284 UC and 286 UC

2. Specify Bore Size for Item 2 (Frame size determines bore).

Warner Electric MB 1000 Flange Mounted Normal Duty



3. See Controls Section
Warner MB Series Controls

Please provide Bore Size (Bushing Part Number) & Control Option Model Number along with your quote request.

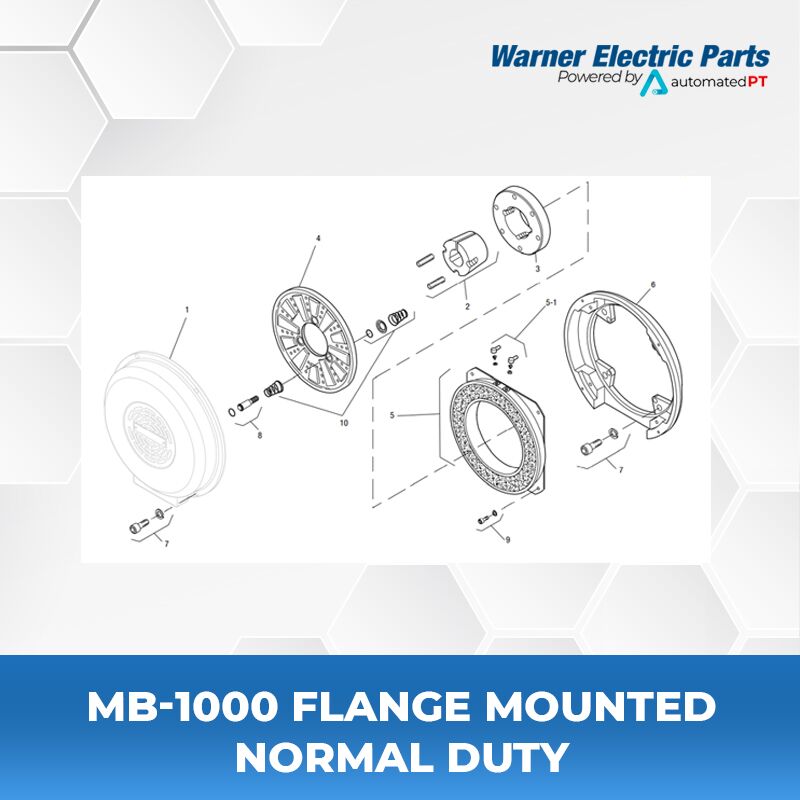

Parts List MB-1000 Flange Mounted Normal Duty
Item Description Part Number Qty.
1 Cover 5352-288-001 1
2 Bushing* 1
1/2″ to 2-1/2″ Bore 180-0185 to 180-0217
3 Armature Hub 540-0313 1
4 Armature 5302-111-013 1
5 Magnet – 90 Volt 5352-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5352-105-001 1
7 Mounting Accessory 5351-101-003 1
8 Drive Pin and Retainer 5301-101-001 3
9 Mounting Accessory 5321-101-002 2
10 Spring Accessory 5301-101-014 3
