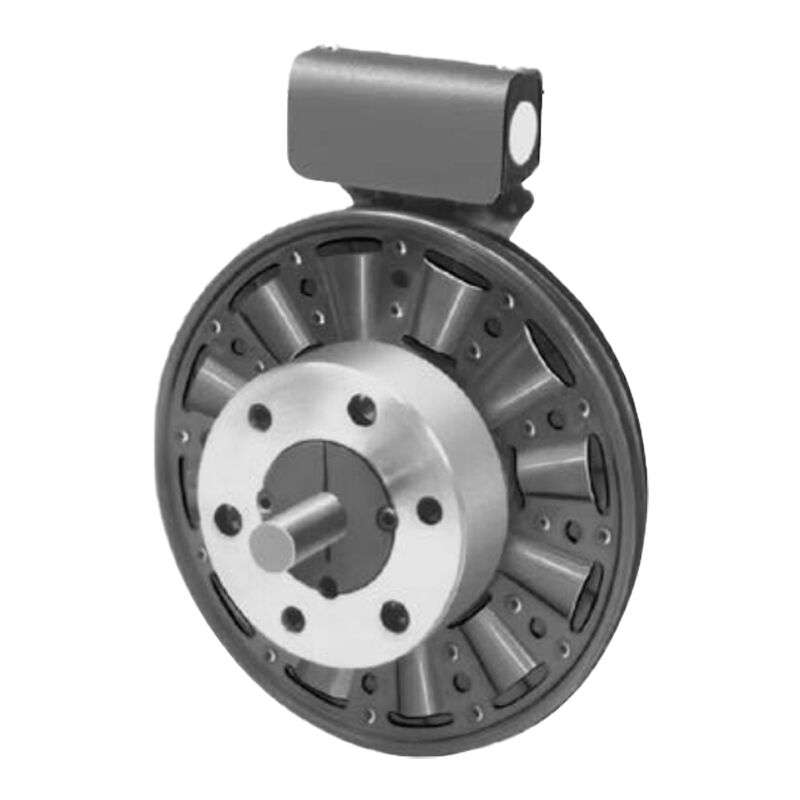

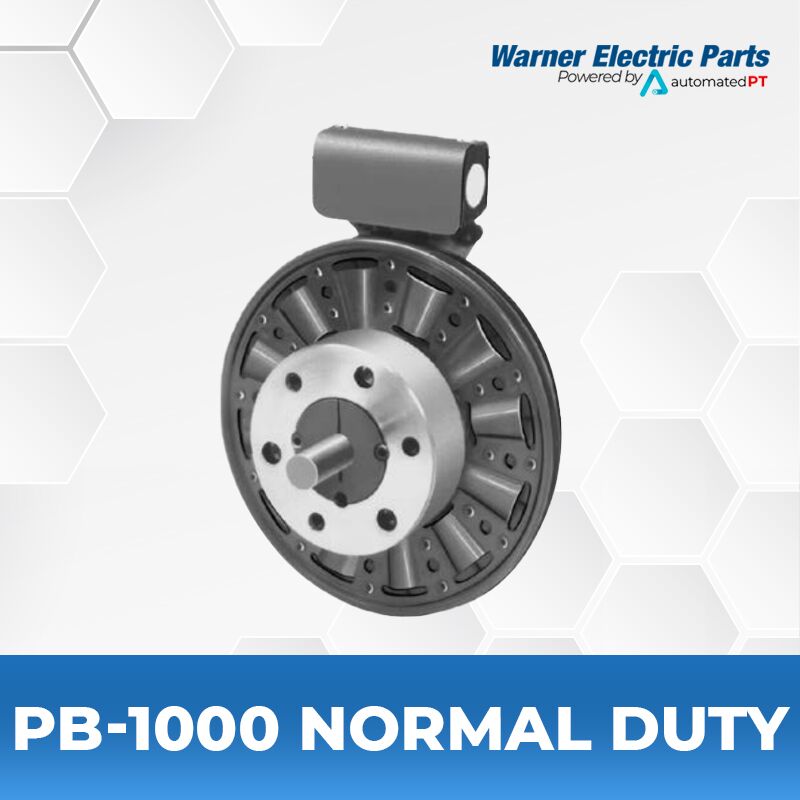

Warner Electric PB-1000 Normal Duty

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 240 lb. ft.
  • Max RPM: 3,600 rpm
  • Shaft Size: .500 – 2.500

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-1000 Normal Duty
Function Primary Brake
Max. Rated Torque 240 lb.ft
Shaft Sizes .500 – 2,500
Max. RPM 3,600 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 8.75 Inches
Overall Length 3.5 Inches

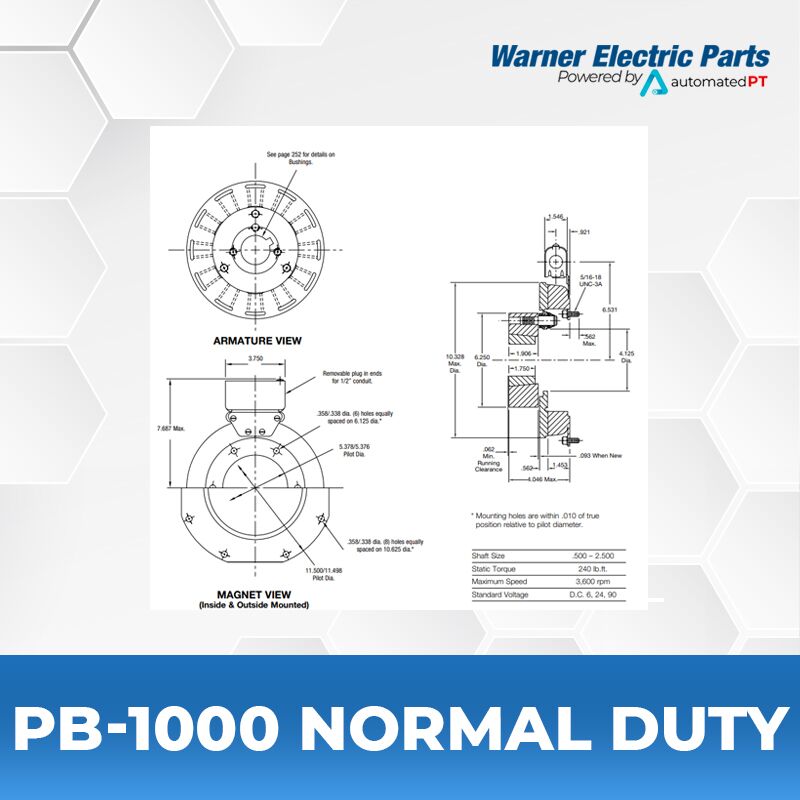

Manufacturer Drawing I-25586

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-1000 Users Manual / Installation Instructions
Quick Information Warner Electric PB-1000 HD Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A or Outside Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.

Warner Electric PB 1000 Quick Info
4. See Controls Section.

Warner MB Series Controls

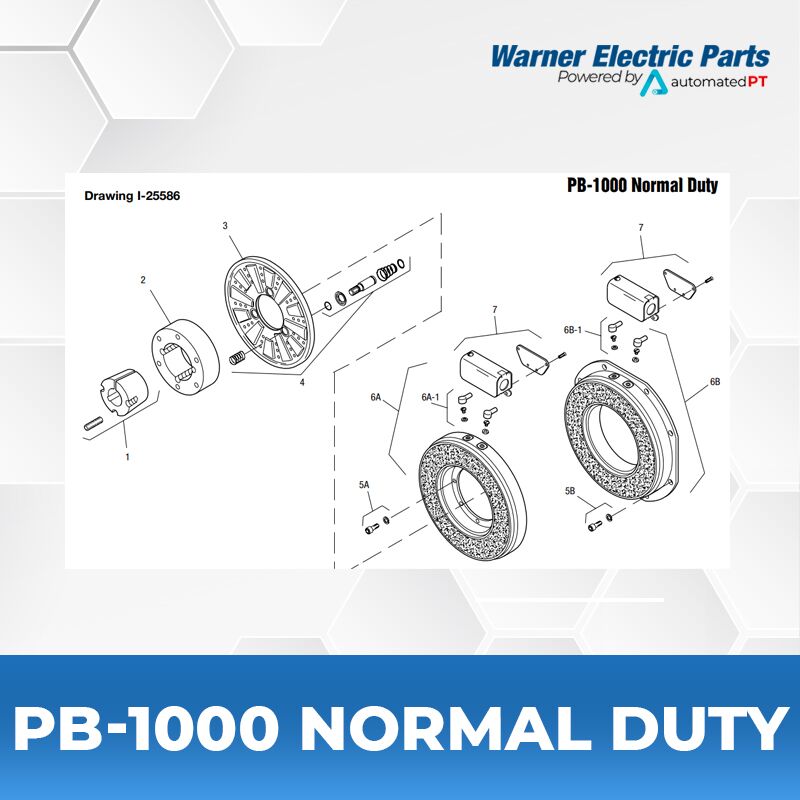

PB-1000 Normal Duty
Item Description Part Number Qty.
1 Bushing* 1
1/2″ to 2-1/2″ Bore 180-0185 to 180-0217
2 Armature Hub 540-0313 1
3 Armature 5301-111-013 1
4 Autogap Accessory 5201-101-008 3
5A Mounting Accessory – I.M. 5321-101-001 1
5B Mounting Accessory – O.M. 5321-101-002 1
6A Magnet – Inside Mounted 1
6 Volt 5311-631-004
24 Volt 5311-631-005
90 Volt 5311-631-006
90 Volt LK Facing 5311-631-001
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet, Outside Mounted 1
6 Volt 5311-631-011
24 Volt 5311-631-013
90 Volt 5311-631-012
90 Volt LK Facing 5311-631-002
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
