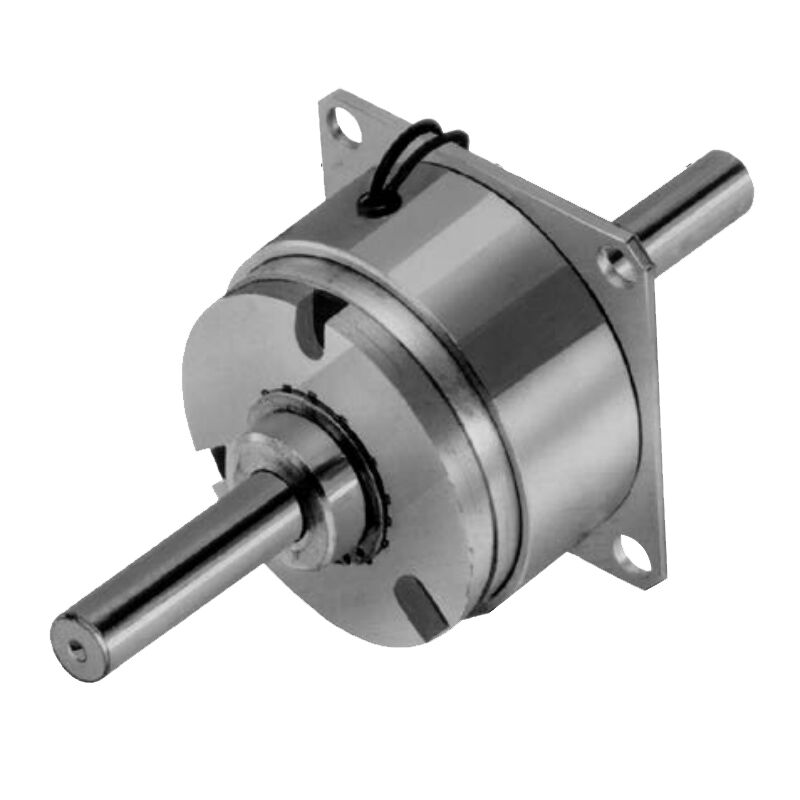

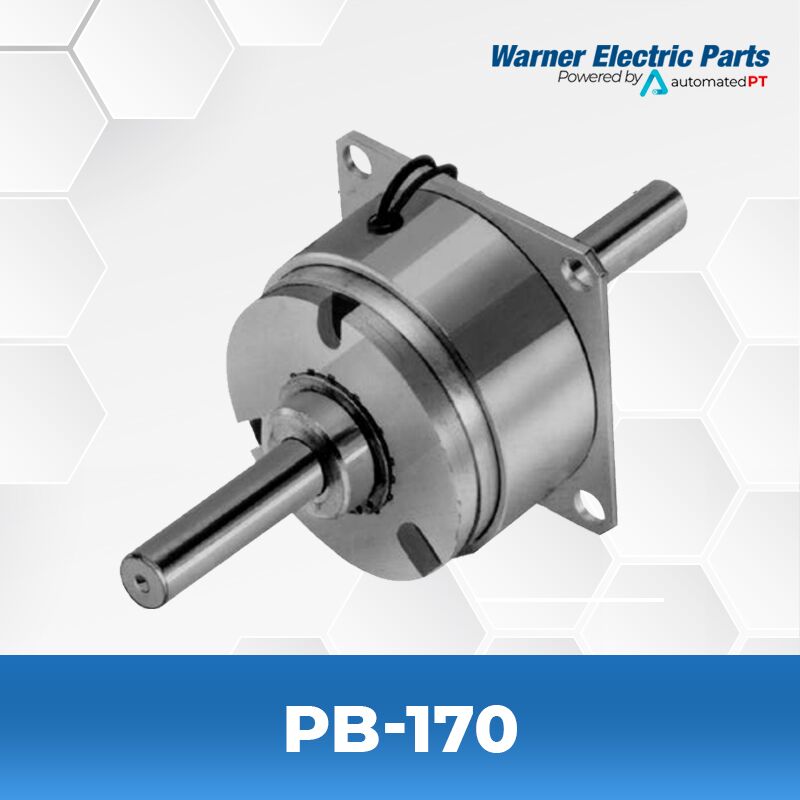

Warner Electric PB-170

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 15 lb.in.
  • Max RPM: 10,000 rpm
  • Shaft Size: .250 – .375

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-170
Function Primary Brake
Shaft Size .250 – .375
Max. Rated Torque 15 Lb. in
Max. RPM 10,000 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 1.75 Inches
Overall Length 1.5 Inch

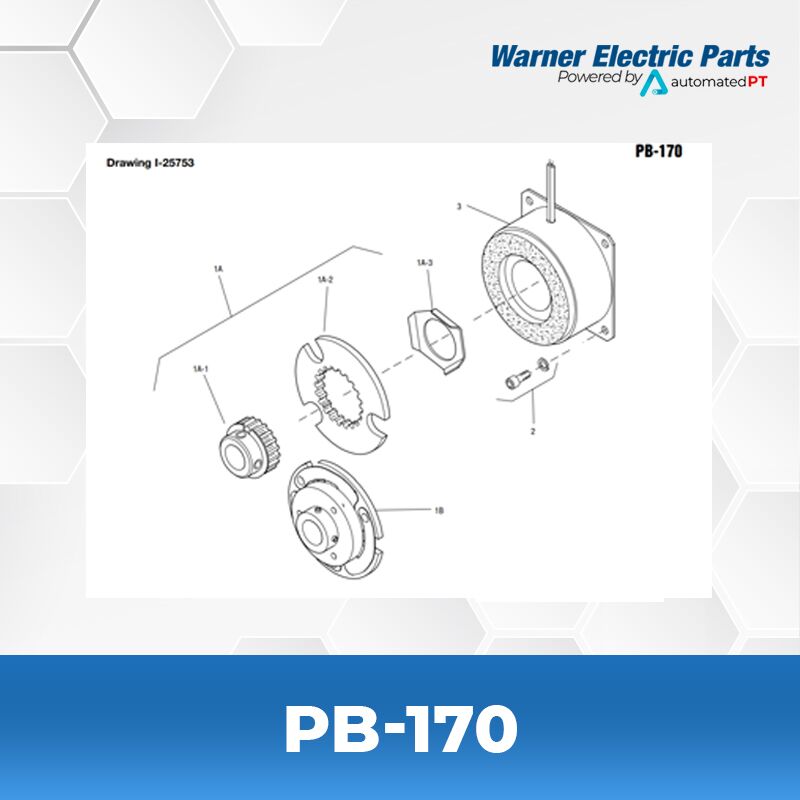

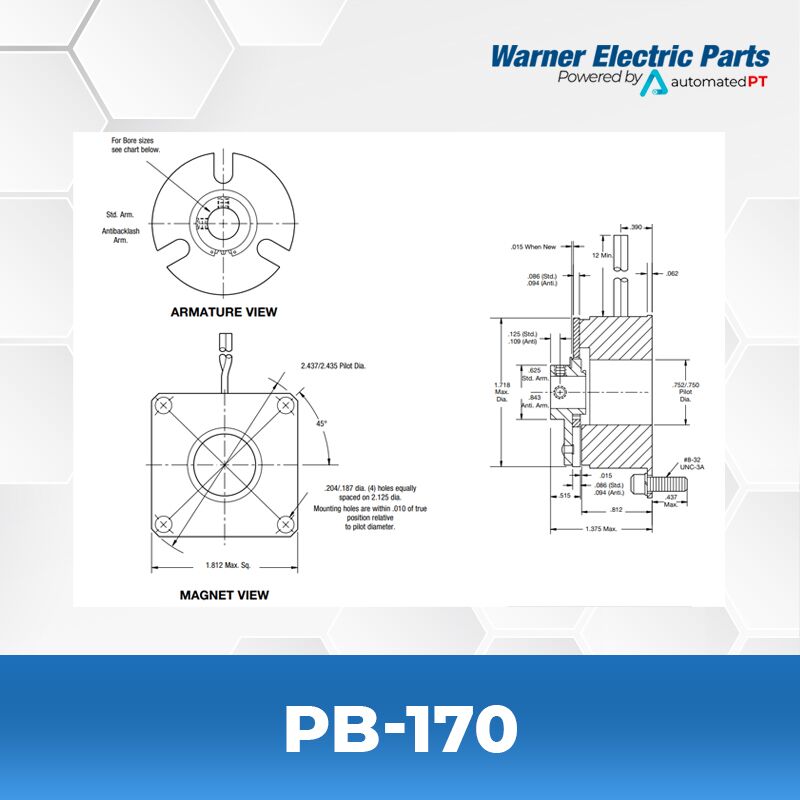

Manufacturer Drawing I-25753

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-170 Users Manual / Installation Instructions
Quick Information Warner Electric PB-170 Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B.
3. Specify Voltage for Item 3.
4. See Controls Section

Warner Electric PB 120 Quick Info
Warner MB Series Controls



PB-170 Parts List
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
1/4″ Bore 5102-541-002
5/16″ Bore 5102-541-003
3/8″ Bore 5102-541-004
1A-2 Armature 110-0111 1
1A-3 Release Spring 808-0019 1
1B Antibacklash Armature 1
1/4″ Bore 5623-111-008
5/16″ Bore 5623-111-009
3/8″ Bore 5623-111-010
2 Mounting Accessory 5102-101-001 1
3 Magnet 1
6 Volt 5375-631-003
24 Volt 5375-631-005
90 Volt 5375-631-007
