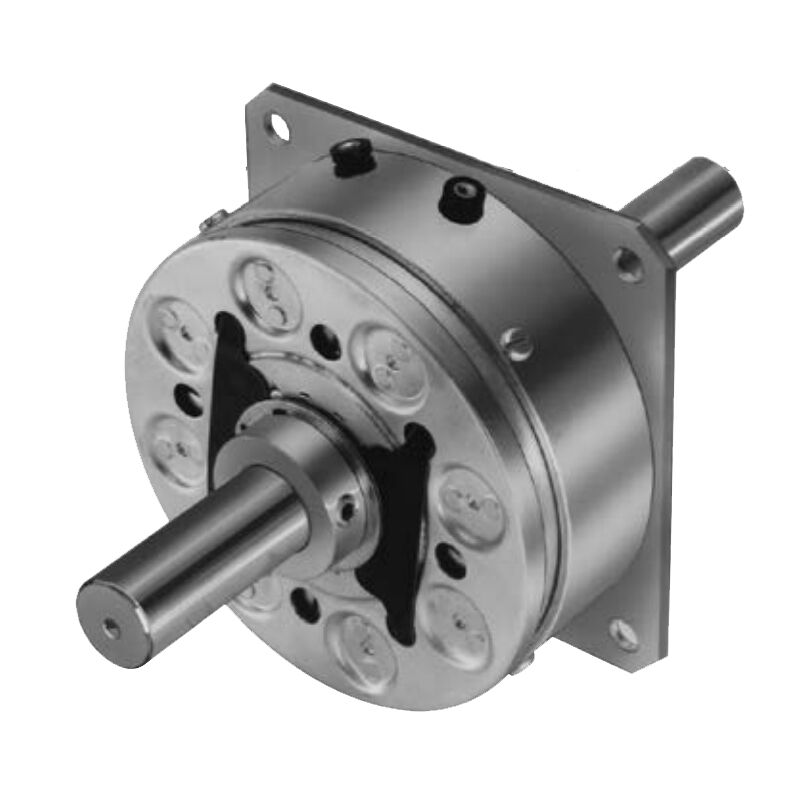

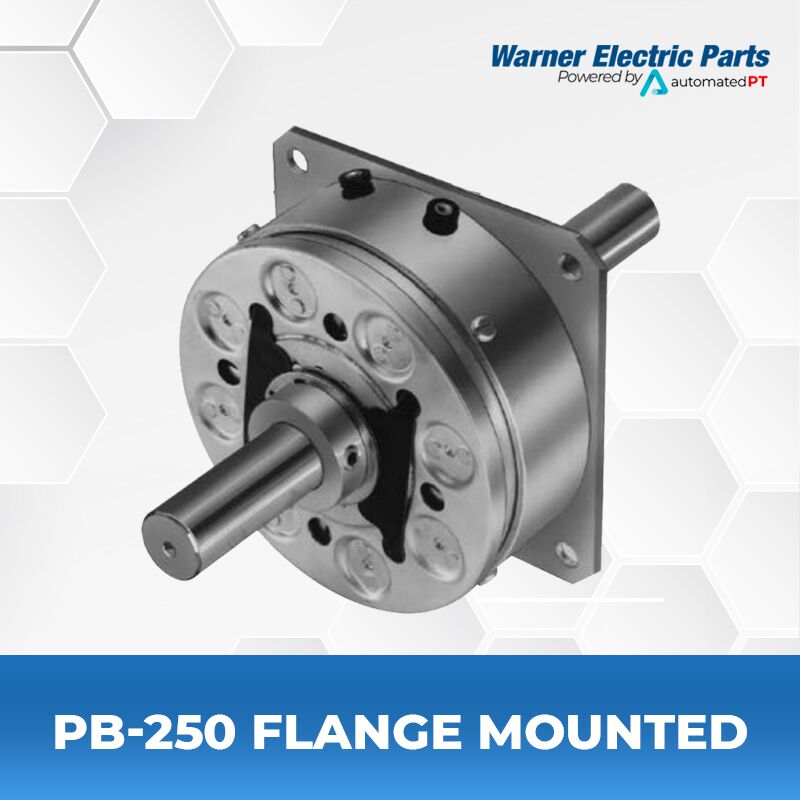

Warner Electric PB-250 Flange Mounted

  • PB Series
  • Model Size: pb-250
  • Voltage: 6/24/90 VDC
  • Static Torque: 70 lb.in.
  • Max RPM: 7,500 rpm

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-250
Function Primary Brake
Max. Rated Torque 70 Lb. in
Max. RPM 7.500 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 2.80 Inches
Overall Length 2 Inches

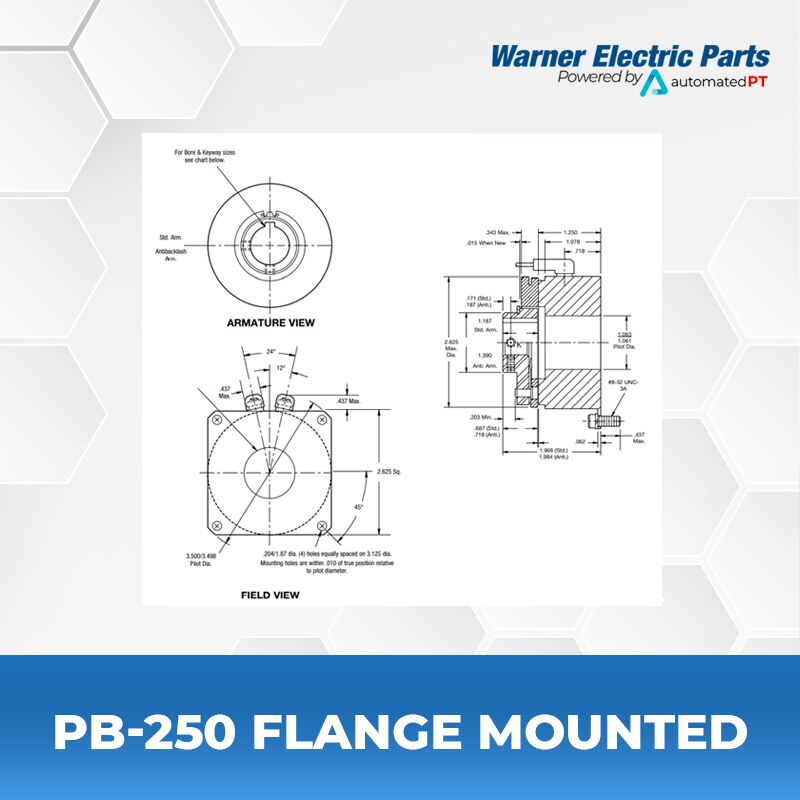

Manufacturer Drawing I-25519

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-250 Users Manual / Installation Instructions
Quick Information Warner Electric PB-125 Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B.
3. Specify Voltage for Item 3.
4. See Controls Section

Warner Electric PB 250 Quick Info

Warner MB Series Controls



PB-250 Flange Mounted Parts List
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
3/8″ Bore 5103-541-002
1/2″ Bore 5103-541-004
5/8″ Bore 5103-541-006
3/4″ Bore 5103-541-008
1A-2 Release Spring 5103-101-003 1
1A-3 Armature 5124-111-001 1
1B Antibacklash Armature 1
3/8″ Bore 5365-111-003
1/2″ Bore 5365-111-005
5/8″ Bore 5365-111-007
3/4″ Bore 5365-111-009
2 Magnet 1
6 Volt 5319-631-002
24 Volt 5319-631-003
90 Volt 5319-631-005
2-1 Terminal Accessory 5103-101-002 1
3 Mounting Accessory 5102-101-001 1
