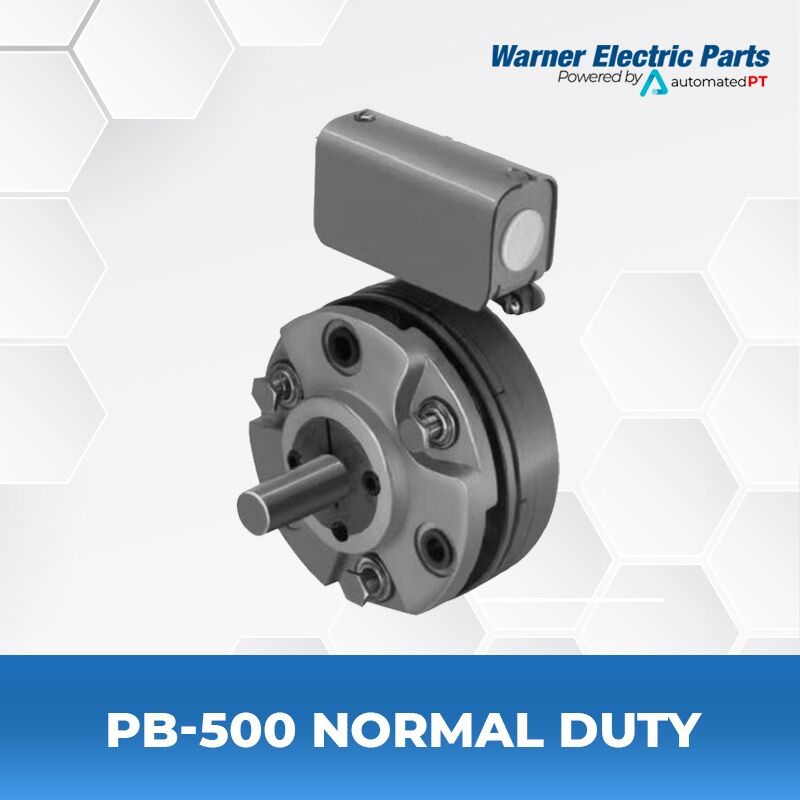

Warner Electric PB-500 Normal Duty

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 40 lb.ft.
  • Max RPM: 5,400 rpm

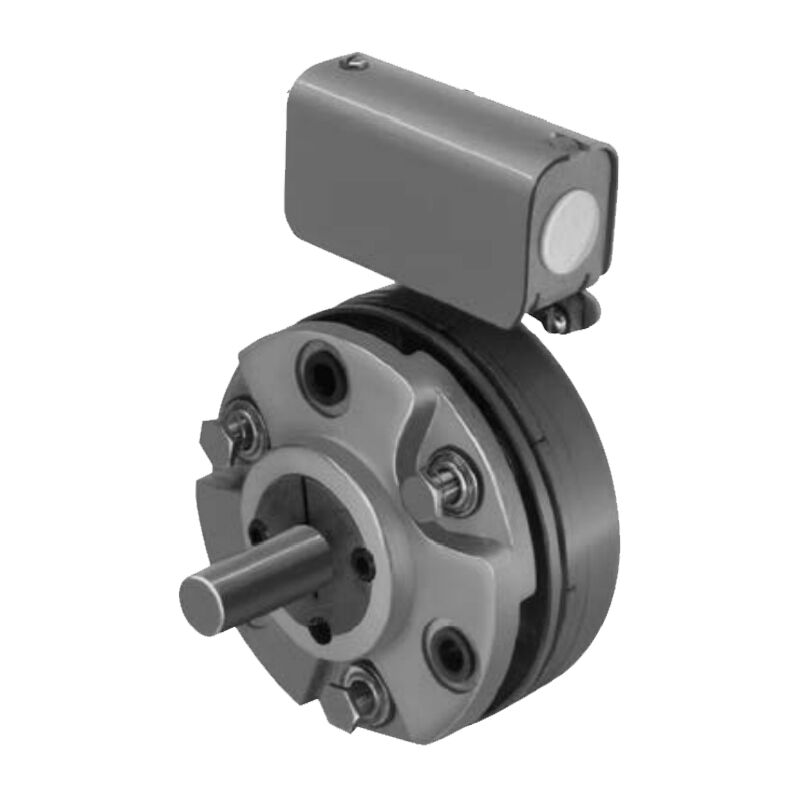

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-500 Normal Duty
Function Primary Brake
Max. Rated Torque 40 lb.ft
Max. RPM 5,400 rpm
Standard Voltage 6, 24, 90 DC

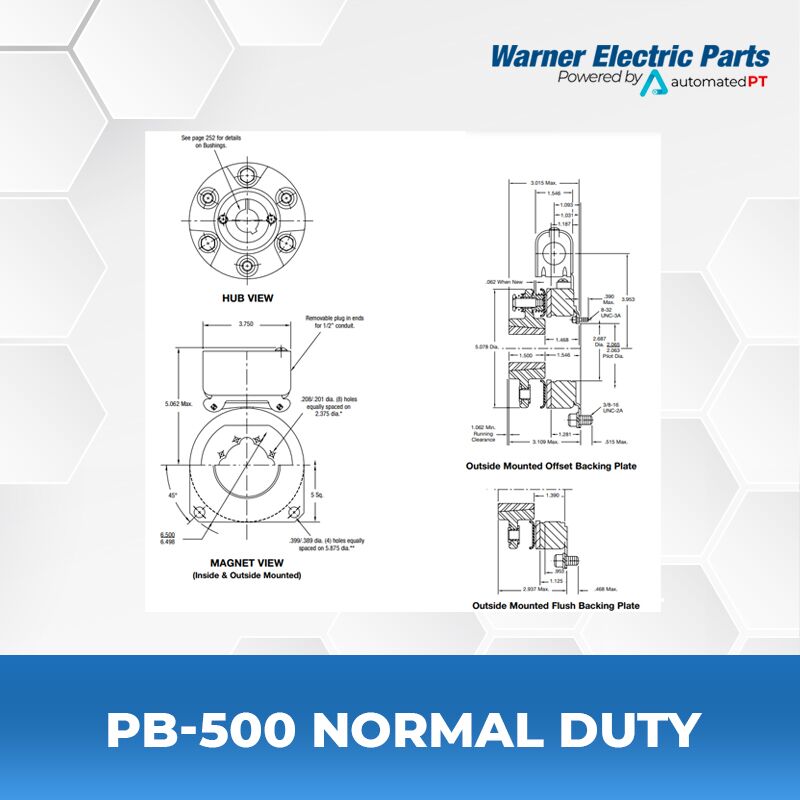

Outside Diameter 5.25 Inches
Overall Length 3 Inches
Manufacturer Drawing I-25544

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-500 Users Manual / Installation Instructions
Quick Information Warner Electric PB-500 Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 7.
2. Specify Voltage for Item 5A, 5B, or 5C.
3. Specify Inside Mounted for Item 5A and Outside Mounted (Offset) for Item 5B or Outside Mounted (Flush) for Item 5C.

Warner Electric PB 500 Quick Info

4. See Controls Section.

Warner MB Series Controls

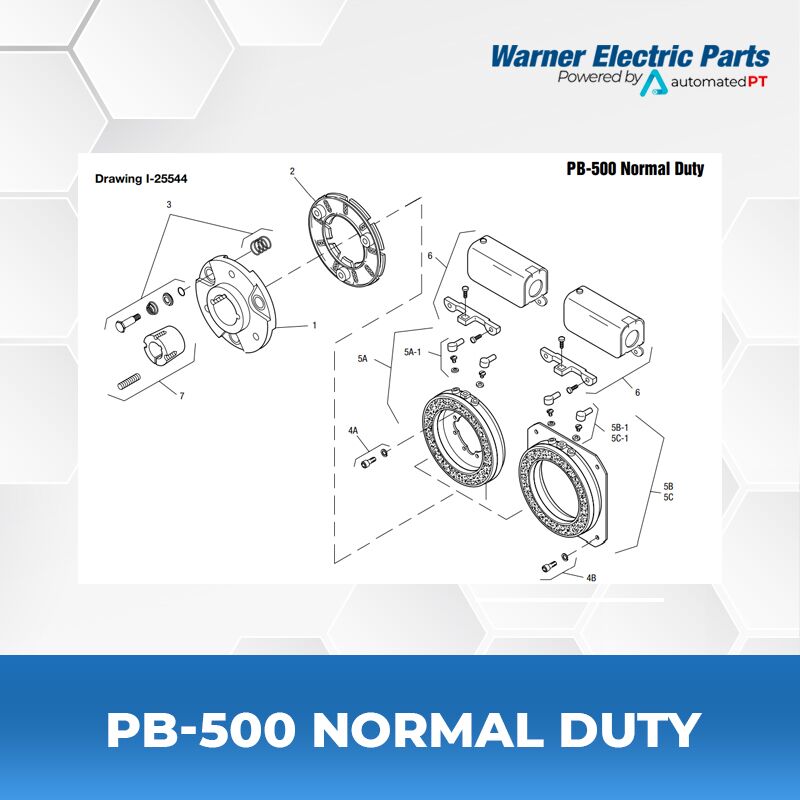

PB-500 Normal Duty Parts List
Item Description Part Number Qty.
1 Armature Hub 5300-541-004 1
2 Armature 5300-111-002 1
3 Autogap Accessory 5200-101-009 3
4A Mounting Accessory – I.M. 5102-101-001 2
4B Mounting Accessory – O.M. 5300-101-008 1
5A Magnet – I.M. 1
6 Volt 5300-631-002
24 Volt 5300-631-003
90 Volt 5300-631-005
5A-1 Terminal Accessory 5311-101-001 1
5B Magnet – O.M. – Offset 1
90 Volt 5300-631-014
5B-1 Terminal Accessory 5311-101-001 1
5C Magnet – O.M. – Flush 1
6 Volt 5300-631-009
24 Volt 5300-631-010
90 Volt 5300-631-011
5C-1 Terminal Accessory 5311-101-001 1
6 Conduit Box 5200-101-010 1
7 Bushing* 1
1/2″ to 1-1/4″ Bore 180-0116 to 180-0128
