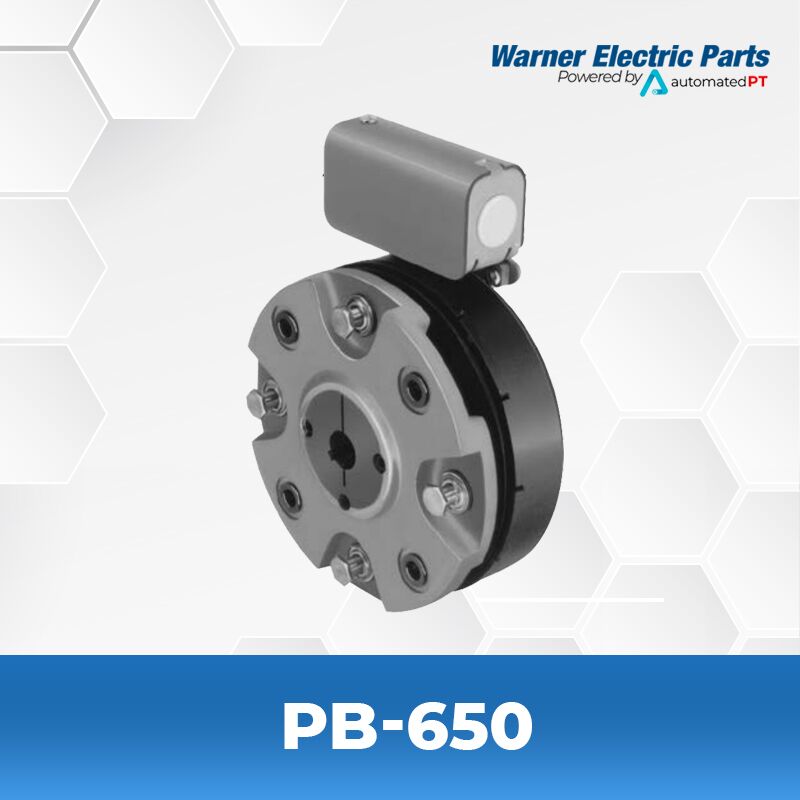

Warner Electric PB-650

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 95 lb. ft.
  • Max RPM: 3,600 rpm
  • Shaft Size: .500 – 1.625

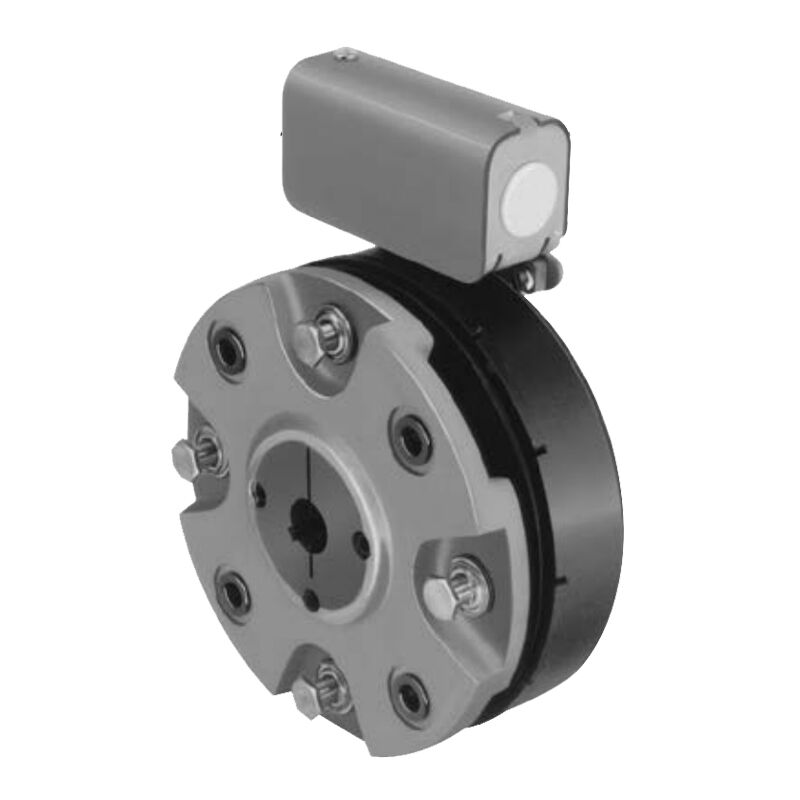

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-650
Function Primary Brake
Max. Rated Torque 95 lb.ft
Shaft Sizes .500 – 1.625
Max. RPM 3,600 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 6.5 Inches
Overall Length 3 Inches

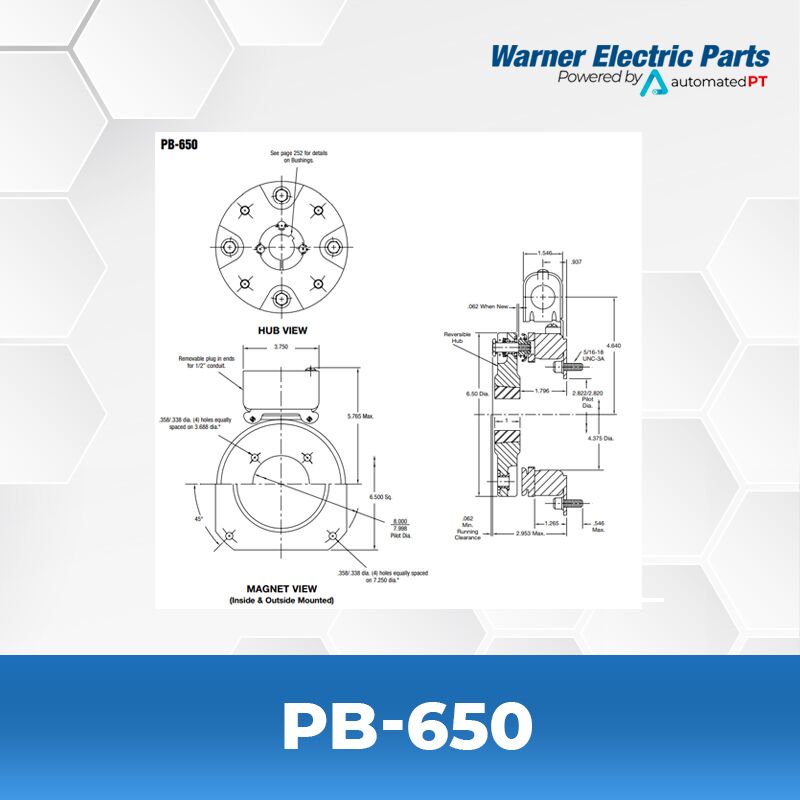

Manufacturer Drawing I-25730

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-500 Users Manual / Installation Instructions
Quick Information Warner Electric PB-500 HD Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 2.
2. Specify Voltage for Item 5.
3. Specify Inside or Outside Mounted for Item 5.
Warner Electric PB 650 Quick Info

4. See Controls Section.

Warner MB Series Controls

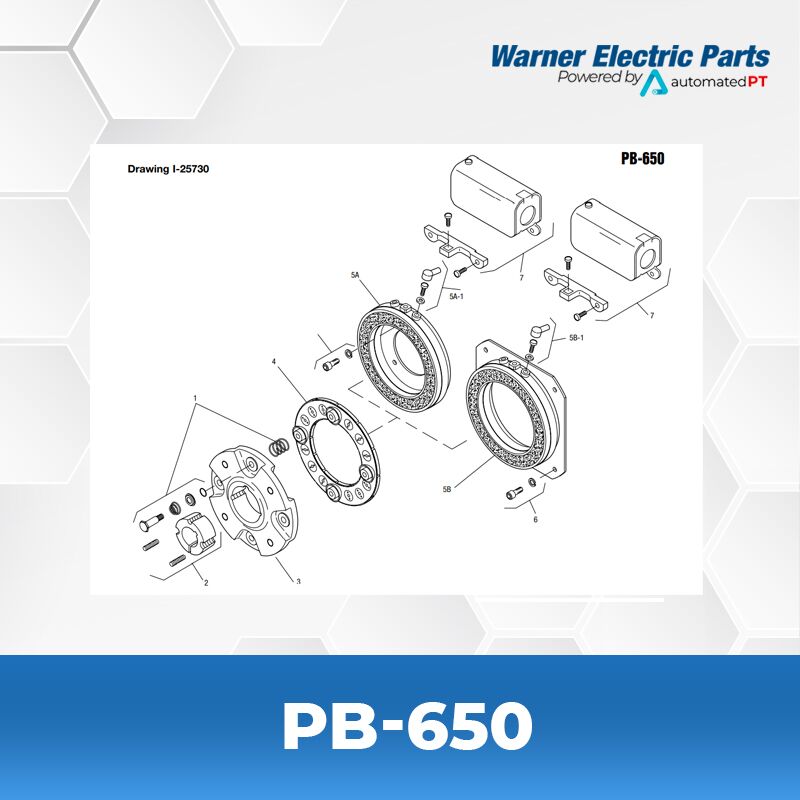

PB-650 Parts List
Item Description Part Number Qty.
1 Autogap Accessory 5181-101-010 4
2 Bushing* 1
1/2″ to 1-5/8″ Bore 180-0326 to 180-0344
3 Armature Hub 5207-541-002 1
4 Armature 5281-111-002 1
5A Magnet – Inside Mounted 1
6 Volt 5369-631-003
24 Volt 5369-631-006
90 Volt 5369-631-005
5A-1 Terminal Accessory 5311-101-001 1
5B Magnet – Outside Mounted 1
6 Volt 5369-631-009
24 Volt 5369-631-012
90 Volt 5369-631-011
5B-1 Terminal Accessory 5311-101-001 1
6 Mounting Accessory 5321-101-002 1
7 Conduit Box 5200-101-010 1
