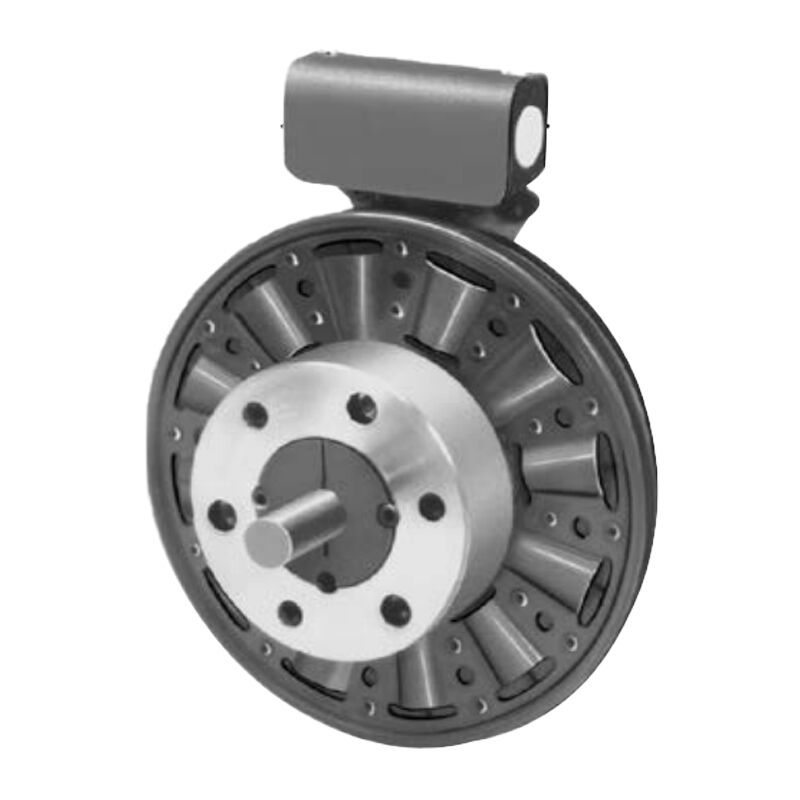

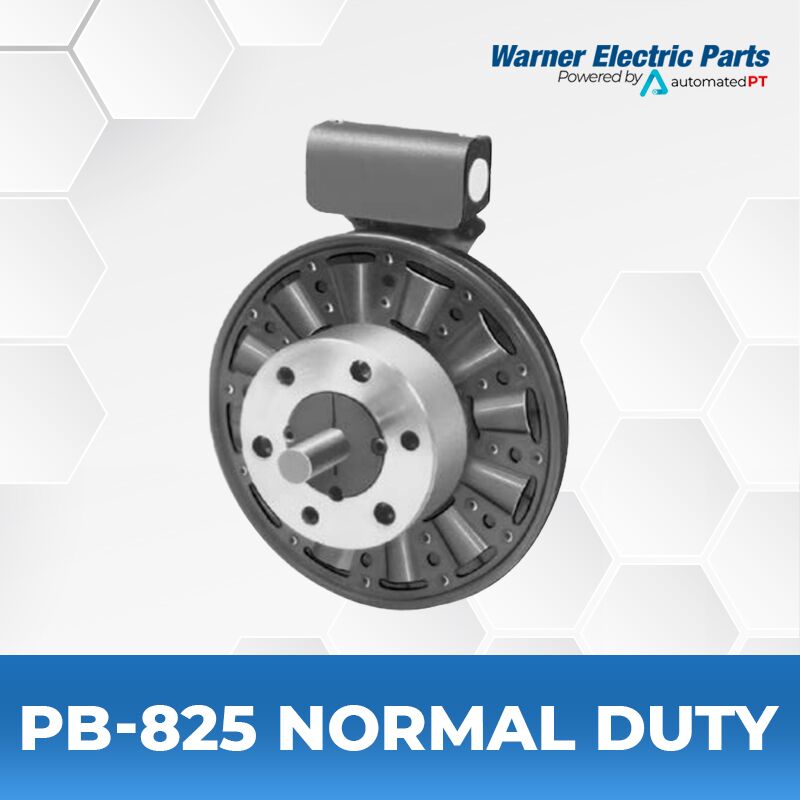

Warner Electric PB-825 Normal Duty

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 125 lb. ft.
  • Max RPM: 4,000 rpm
  • Shaft Size: .500 – 1.625

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-825 Normal Duty
Function Primary Brake
Max. Rated Torque 125 lb.ft
Shaft Sizes .500 – 1.625
Max. RPM 3,600 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 8.75 Inches
Overall Length 3.5 Inches

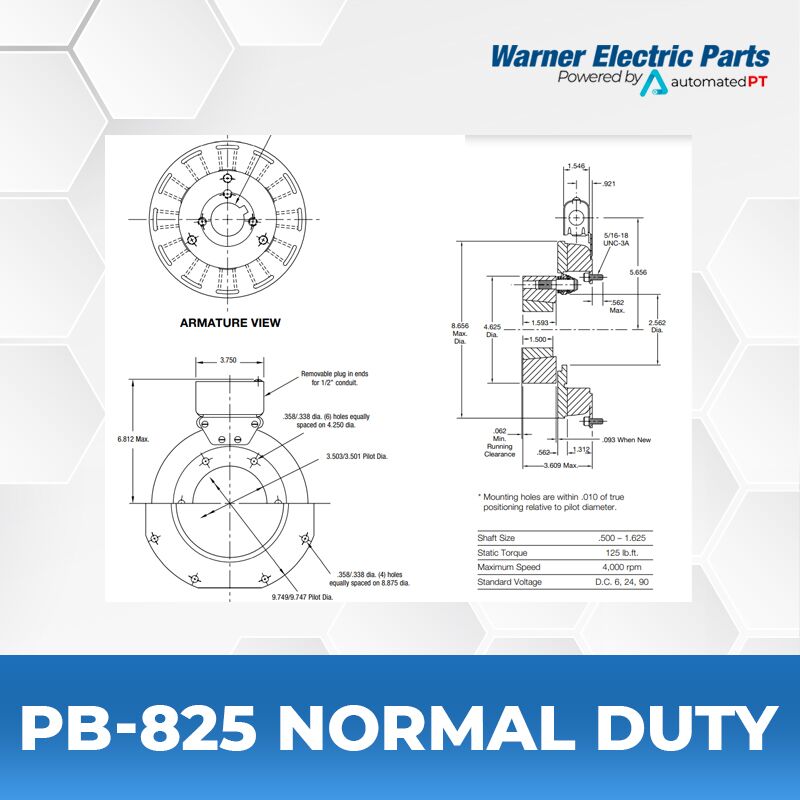

Manufacturer Drawing I-25566

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-825 Users Manual / Installation Instructions
Quick Information Warner Electric PB-825 HD Quick Information

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 2.
2. Specify Voltage for Item 5.
3. Specify Inside or Outside Mounted for Item 5.
Warner Electric PB 825 Quick Info

4. See Controls Section.

Warner MB Series Controls

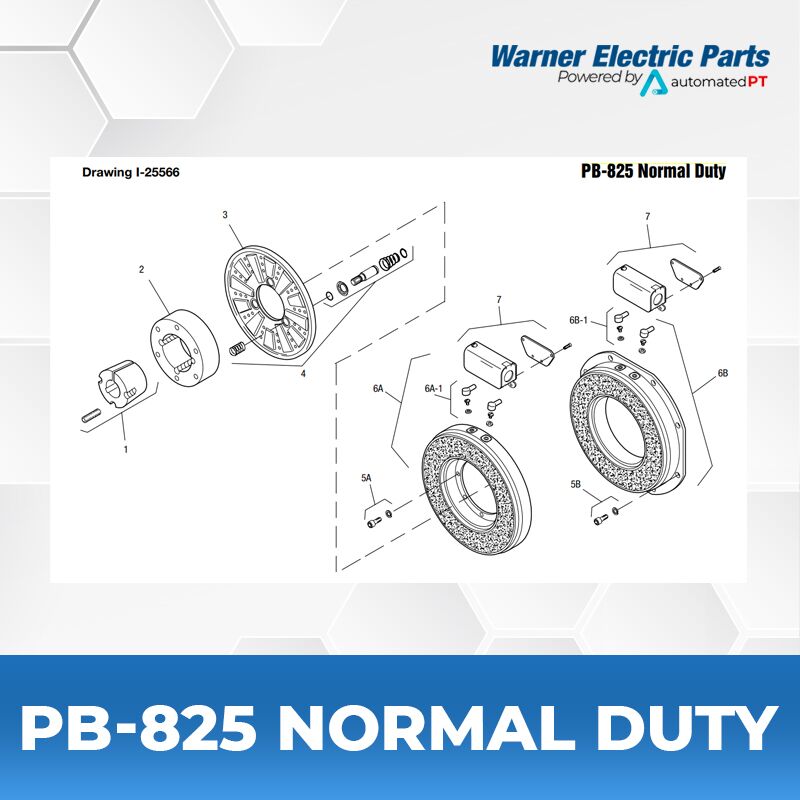

PB-825 Normal Duty Parts List
Item Description Part Number Qty.
1 Bushing* 1
1/2″ to 1-5/8″ Bore 180-0131 to 180-0149
2 Armature Hub 540-0394 1
3 Armature 5301-111-018 1
4 Autogap Accessory 5201-101-008 3
5A Mounting Accessory – I.M. 5321-101-001 1
5B Mounting Accessory – O.M. 5321-101-002 1
6A Magnet – Inside Mounted 1
6 Volt 5311-631-002
24 Volt 5311-631-003
90 Volt 5311-631-004
90 Volt LK Facing 5311-631-011
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet, Outside Mounted 1
6 Volt 5311-631-007
24 Volt 5311-631-009
90 Volt 5311-631-008
90 Volt LK Facing 5311-631-012
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
