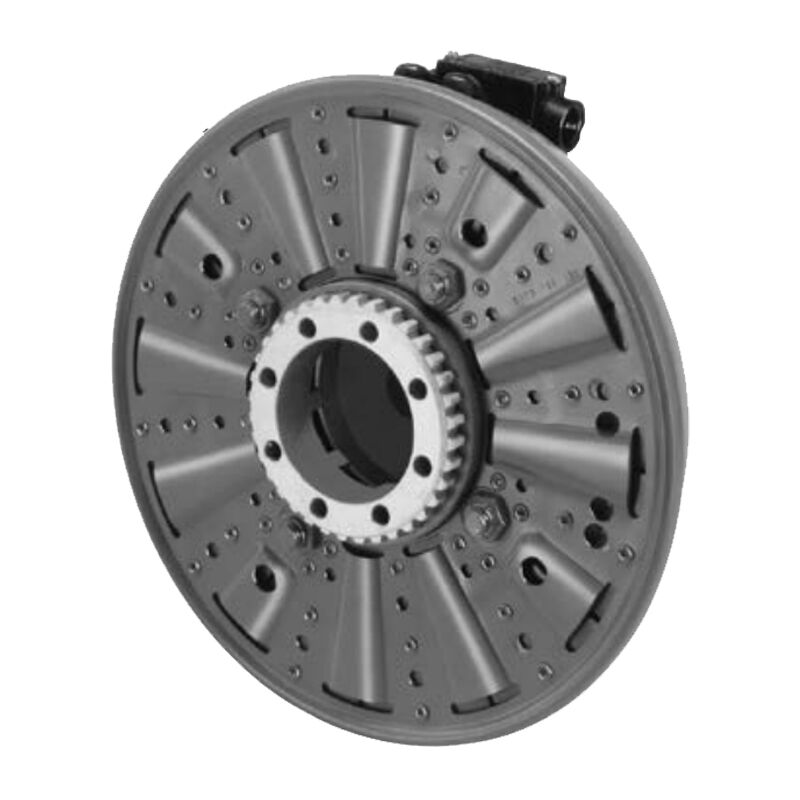

Warner Electric PC-1525 Heavy Duty Clutch
- PC Series
- Voltage: 6/24/90 VDC
- Static Torque: 700 lb.ft.
- Max RPM: 2,000 rpm
- Shaft Size: .937 3.000
Current is carried through brushes and the collector ring to the rotating magnet. The PC design is less expensive than the SF design.
SPECIFICATIONS
| Model Name | PC Series PC-1225 Heavy Duty Clutch |
| Function | Primary Clutch |
| Shaft Size | .937 – 3.000 |
| Max. Rated Torque | 465 lb. ft |
| Max. RPM | 3,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 12.75 Inches |
| Overall Length | 4.5 Inches |
| Manufacturer Drawing | I-25603 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PC-1225 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PC-1525-HD Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Voltage for Item 4.
2. Specify Bore Size for Item 5.
3. Specify left hand or right hand hub for Item 6. (Bushing enters from magnet side for L.H. hub and from hub side for R.H.)

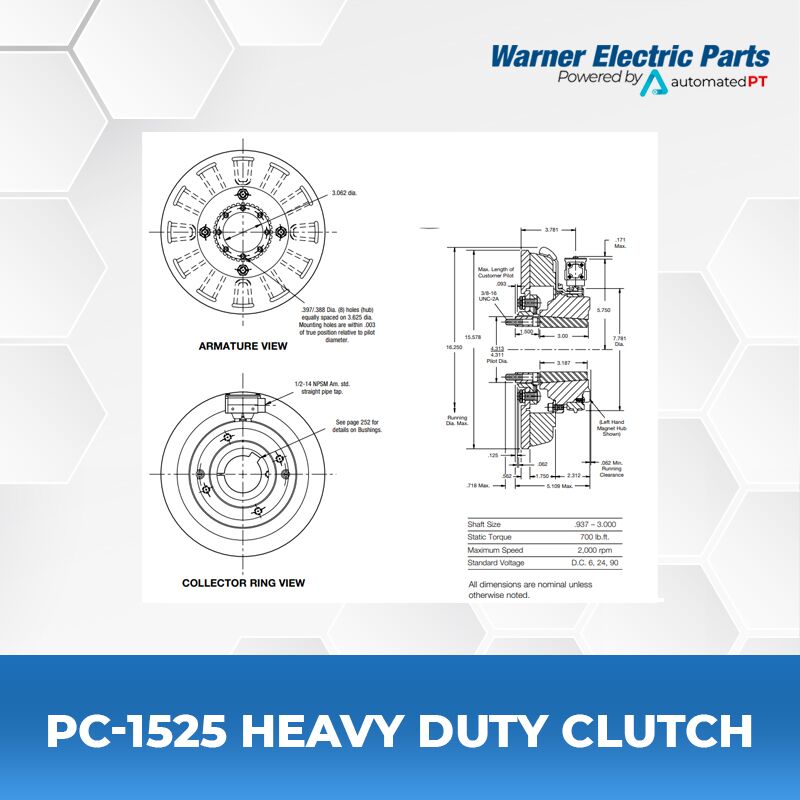

| PC-1525 Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Armature & Splined | ||
| Adapter Assembly | 5324-111-001 | 1 | |
| 1-1 | Armature | 5324-111-034 | 1 |
| 1-2 | Splined Armature Adapter | 104-0011 | 1 |
| 1-3 | Autogap Accessory | 5323-101-002 | 1 |
| Autogap Spring | 808-0044 | 1 | |
| Retainer Ring | 748-0370 | 1 | |
| 1-4 | Button Head Screw | 797-0272 | 8 |
| 1-5 | Locknut | 661-0004 | 8 |
| 1-6 | Retainer Plate | 686-0003 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Splined Hub | 540-0148 | 1 |
| 4 | Mounting Accessory | 5321-101-001 | 2 |
| 5 | Magnet | 1 | |
| 6 Volt | 5304-631-009 | ||
| 24 Volt | 5304-631-011 | ||
| 90 Volt | 5304-631-010 | ||
| 90 Volt LK Facing | 5304-631-002 | ||
| 5-1 | Terminal Accessory | 5311-101-001 | 1 |
| 6 | Magnet Hub Assembly | 1 | |
| Right Hand | 5304-541-002 | ||
| Left Hand (shown) | 5304-541-001 | ||
| 6-1 | Collector Ring | 5301-749-001 | 1 |
| 6-2 | Collector Ring Accessory | 5304-101-004 | 1 |
| 7 | Bushing, Taperlock* | 180-0262 to 180-0295 | 1 |
| 8 | Brushholder | 5300-178-001 | 1 |
| 8-1 | Brush | 176-0001 | 4 |
