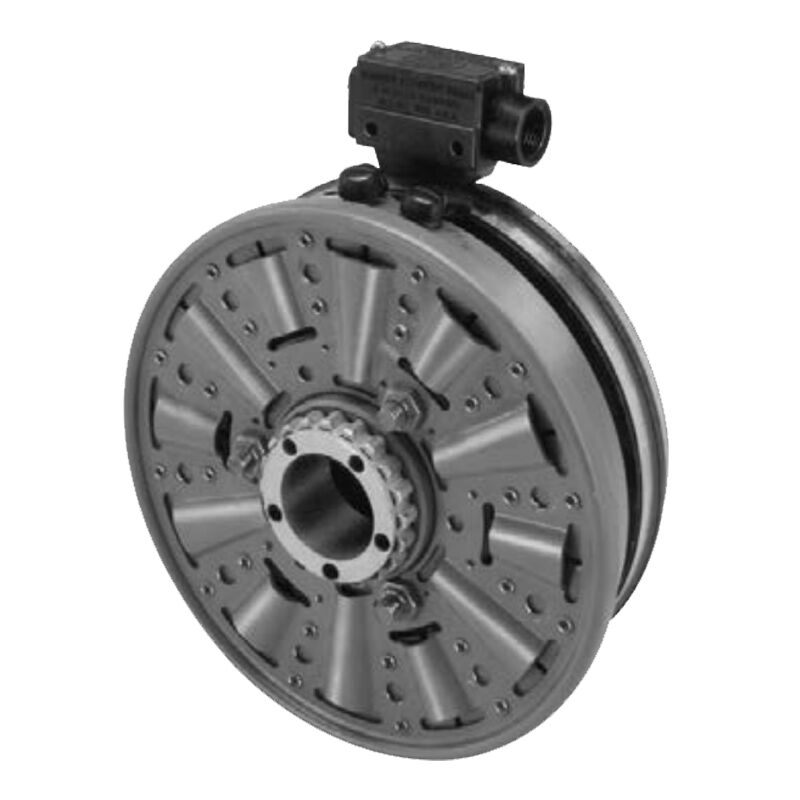

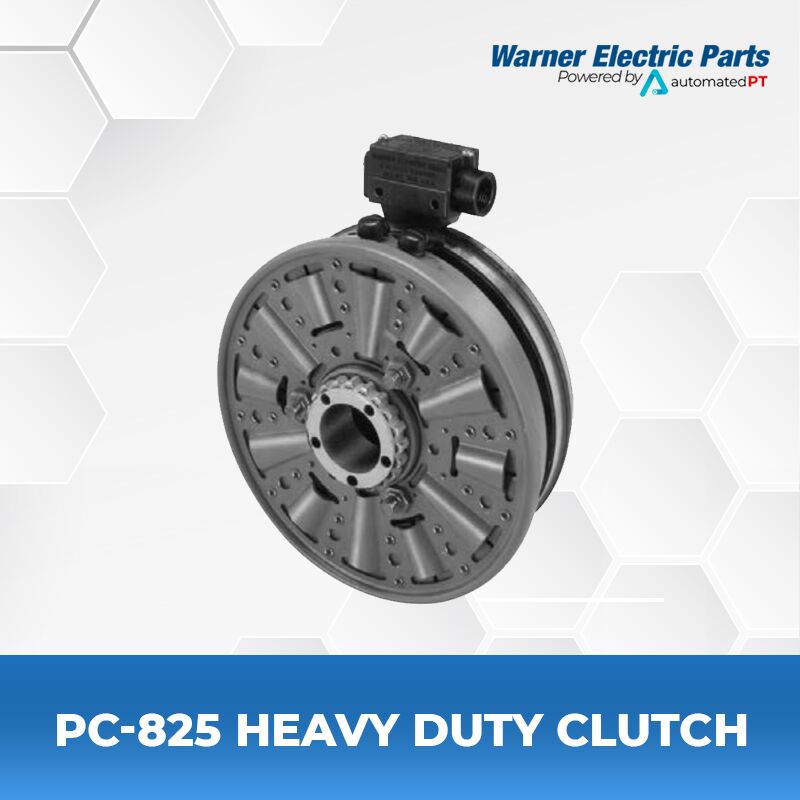

Warner Electric PC-825 Heavy Duty Clutch

  • PC Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 125 lb.ft.
  • Max RPM: 4,000 rpm
  • Shaft Size: .500 – 1.625

Current is carried through brushes and the collector ring to the rotating magnet. The PC design is less expensive than the SF design.

SPECIFICATIONS

Model Name PC Series PC-825 Clutch
Function Primary Clutch
Shaft Size .500 – 1.625
Max. Rated Torque 125 lb. ft
Max. RPM 4,000 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 9.25 Inches
Overall Length 3.5 Inches

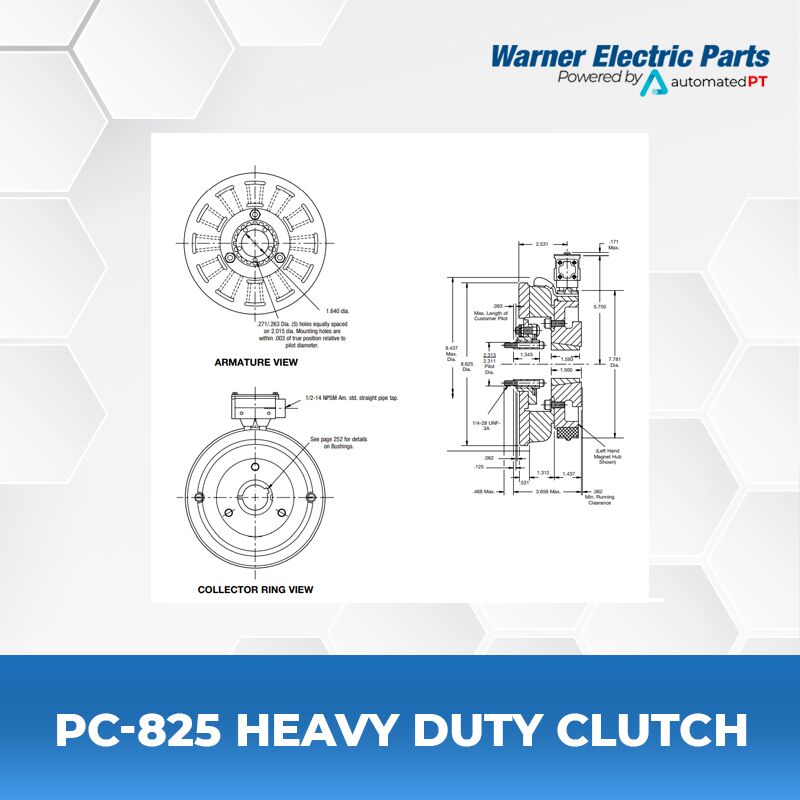

Manufacturer Drawing I-25562

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PC-825-HD Users Manual / Installation Instructions
Quick Information Warner Electric PC-825-HD Quick Information

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Bore Size for Item 3.
2. Specify Voltage for Item 4.
3. See Controls Section.

Warner Electric PC 825 HD Quick Info

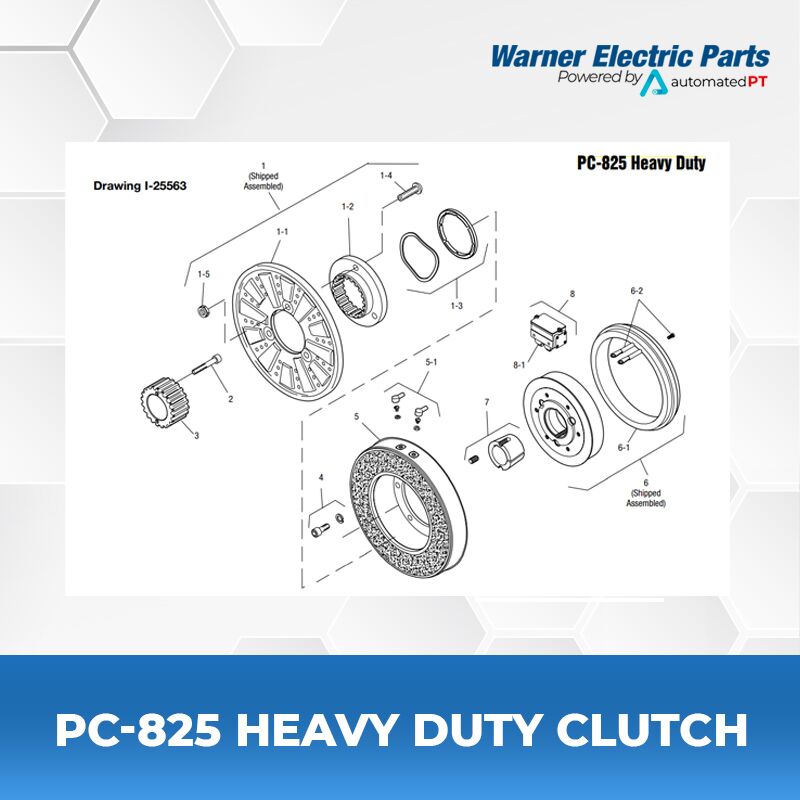

PC-825 Heavy Duty Parts List
Item Description Part Number Qty.
1 Armature & Splined
Adapter Assembly 5321-111-001 1
1-1 Armature 5321-111-022 1
1-2 Splined Armature Adapter 104-0008 1
1-3 Autogap Accessory 5321-101-006 1
Autogap Spring 808-0054 1
Retainer Ring 748-0373 1
1-4 Button Head Screw 797-0272 3
1-5 Locknut 661-0004 3
2 Mounting Accessory 5201-101-001 1
3 Splined Hub 540-0146 1
4 Mounting Accessory 5321-101-001 1
5 Magnet 1
6 Volt 5301-631-002
24 Volt 5301-631-004
90 Volt 5301-631-005
90 Volt LK Facing 5301-631-011
5-1 Terminal Accessory 5311-101-001 1
6 Magnet Hub Assembly 1
Right Hand 5301-541-002
Left Hand (shown) 5301-541-001
6-1 Collector Ring 5301-749-001 1
6-2 Collector Ring Accessory 5301-101-002 1
7 Bushing, Taperlock* 180-0131 to 180-0149 1
8 Brushholder 5300-178-001 1
8-1 Brush 176-0001 4
