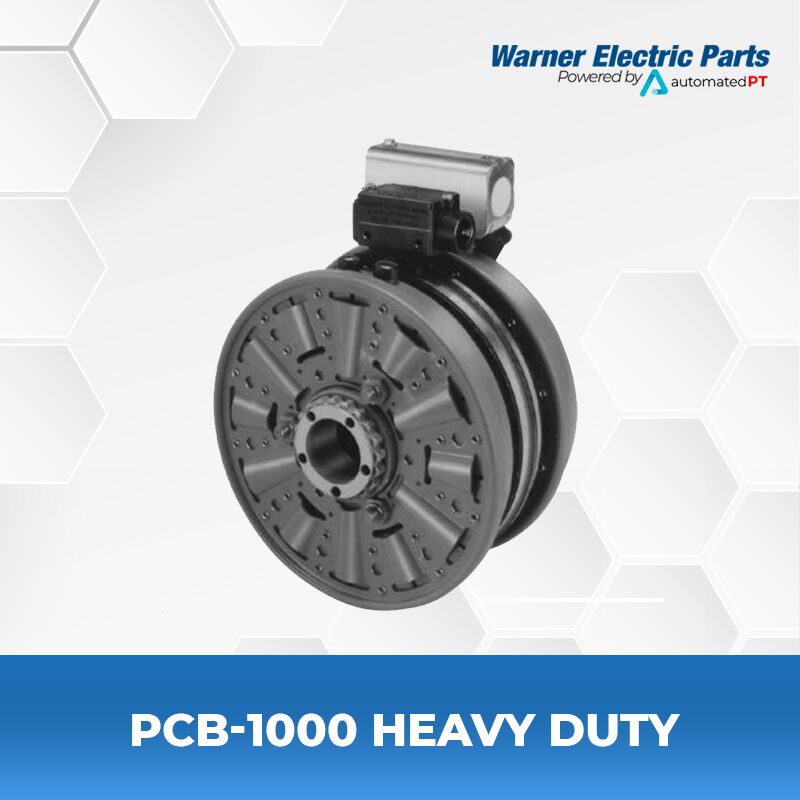

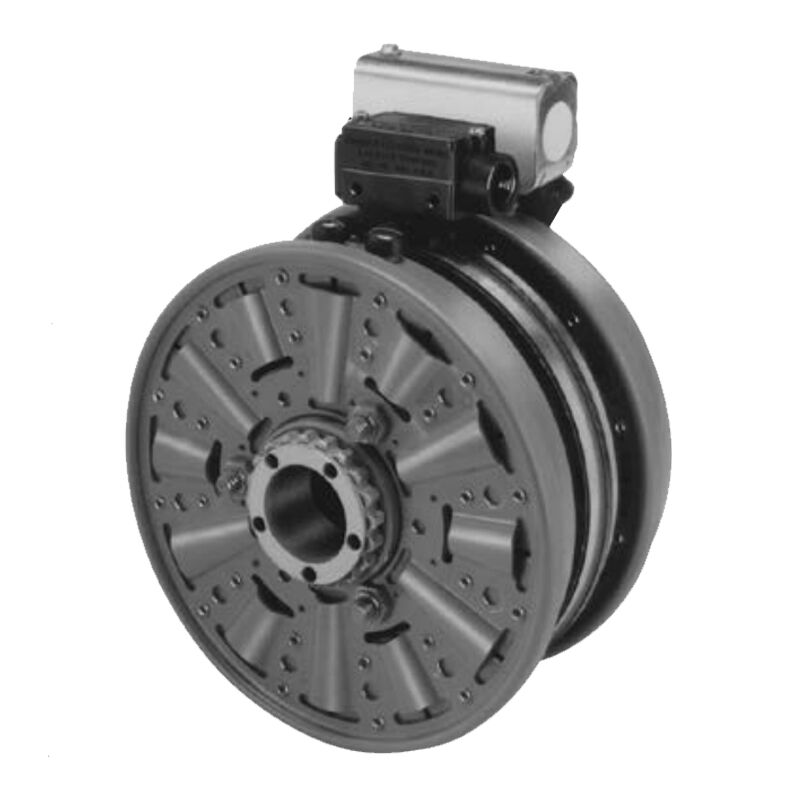

Warner Electric PCB-1000 Heavy Duty
- PCB Series
- Voltage: 6/24/90 VDC
- Static Torque: 240 lb. ft.
- Max RPM: 3,600 rpm
- Shaft Size: .500 – 2.500
The PCB Series clutch-brakes combine a PC clutch and a PB brake into one compact design.
SPECIFICATIONS
| Model Name | PCB-1000 Heavy Duty |
| Function | Primary Clutch Brake |
| Shaft Size | .500 – 2.500 |
| Max. Rated Torque | 240 lb. ft |
| Max. RPM | 3,600 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 10.75 inches |
| Overall Length | 6 Inches |

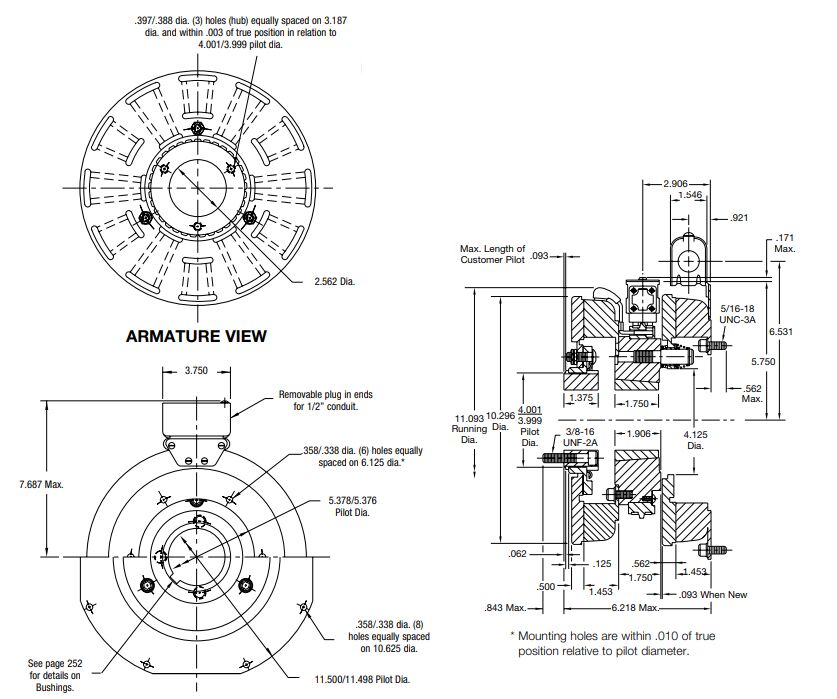

| Manufacturer Drawing | I-25589 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PCB-1000 HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PCB-1000 HD Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Voltage for Item 5 and Item 13A or 13B.
2. Specify left hand or right hand hub for Item 6. Bushing enters from magnet side for L.H. hub and from hub side for R.H. hub.
3. Specify Bore Size for Item 7.
4. Specify Inside Mounted for Items 12A and 13A or Outside Mounted for Item 12B and 13B.

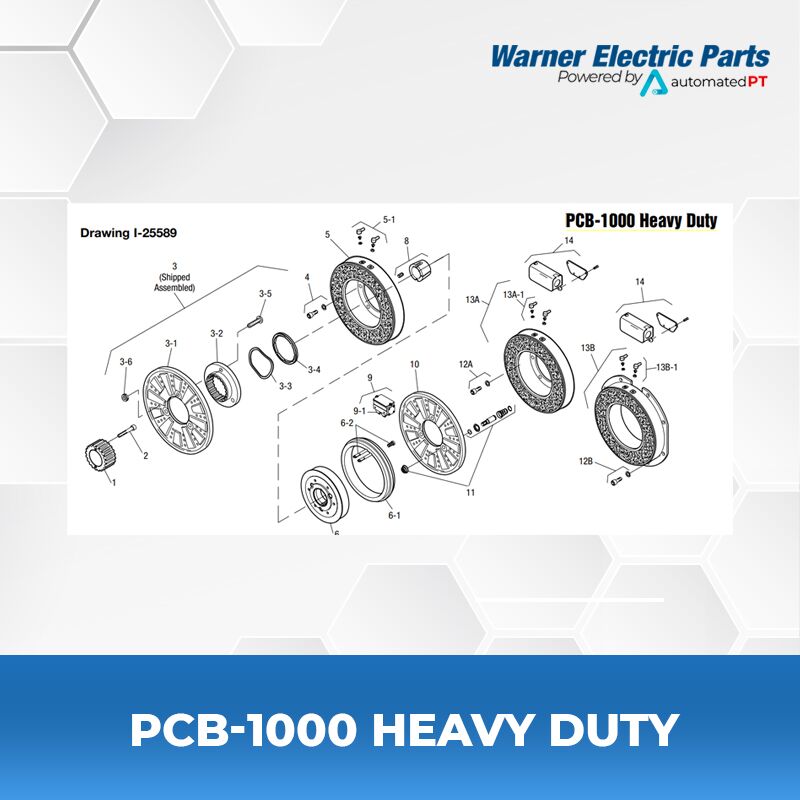

| PCB-1000 Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Splined Hub | 540-0147 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Armature Accessory | 5322-111-002 | 1 |
| 3-1 | Armature | 5322-111-036 | 1 |
| 3-2 | Armature Adapter | 104-0009 | 1 |
| 3-3 | Autogap Spring | 808-0061 | 1 |
| 3-4 | Retainer Ring | 748-0374 | 1 |
| 3-5 | Buttonhead Screw | 797-0272 | 3 |
| 3-6 | Locknut | 661-0004 | 3 |
| 4 | Mounting Accessory | 5321-101-001 | 1 |
| 5 | Magnet | 1 | |
| 6 Volt | 5302-631-003 | ||
| 24 Volt | 5302-631-014 | ||
| 90 Volt | 5302-631-005 | ||
| 5-1 | Terminal Accessory | 5311-101-001 | 1 |
| 6 | Magnet Hub | 1 | |
| Right Hand | 5302-541-002 | ||
| Left Hand (shown) | 5302-541-001 | ||
| 6-1 | Collector Ring | 5301-749-001 | 1 |
| 6-2 | Collector Ring Accessory | 5301-101-002 | 1 |
| 8 | Bushing* | 180-0185 to 180-0217 1 | |
| 9 | Brushholder | 5300-178-001 | 1 |
| 9-1 | Brush | 176-0001 | 4 |
| 10 | Armature | 5302-111-013 | 1 |
| 11 | Autogap Accessory | 5201-101-008 | 3 |
| 12A | Mounting Accessory – I.M. | 5321-101-001 | 1 |
| 12B | Mounting Accessory – O.M. | 5321-101-002 | 2 |
| 13A | Magnet – Inside Mounted | 1 | |
| 6 Volt | 5312-631-004 | ||
| 24 Volt | 5312-631-005 | ||
| 90 Volt | 5312-631-006 | ||
| 13A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 13B | Magnet Hub – Outside Mounted | 1 | |
| 6 Volt | 5312-631-011 | ||
| 24 Volt | 5312-631-013 | ||
| 90 Volt | 5312-631-012 | ||
| 13B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 14 | Conduit Box | 5200-101-011 | 1 |
