Warner Electric PCB-1225 Heavy Duty
- PCB Series
- Voltage: 6/24/90 VDC
- Static Torque: 465 lb. ft.
- Max RPM: 3,000 rpm
- Shaft Size: .937 3.000

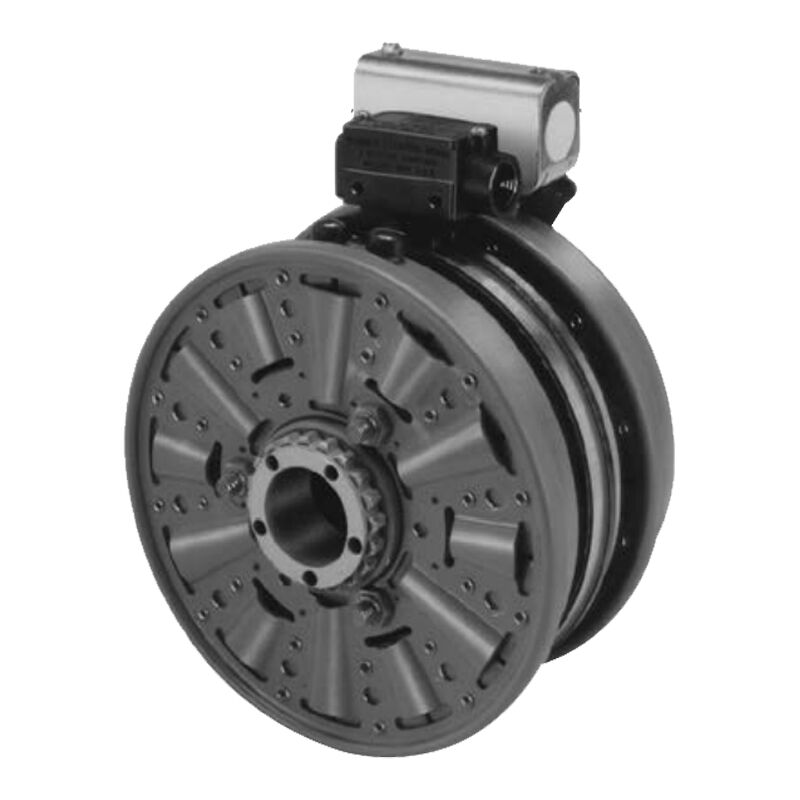

The PCB Series clutch-brakes combine a PC clutch and a PB brake into one compact design.
SPECIFICATIONS
| Model Name | PCB-1225 Heavy Duty |
| Function | Primary Clutch Brake |
| Shaft Size | .937 – 3.000 |
| Max. Rated Torque | 465 lb. ft. |
| Max. RPM | 3,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 12.75 inches |
| Overall Length | 6.25 Inches |

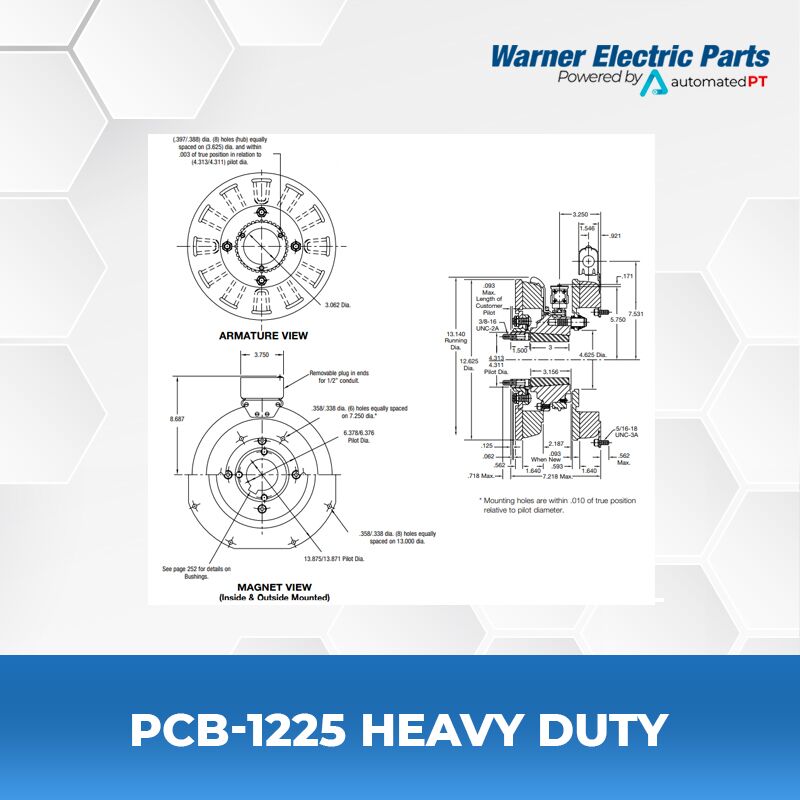

| Manufacturer Drawing | I-25609 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PCB-1225 HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PCB-1225 HD Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Voltage for Item 5 and Item 12A or 12B.
2. Specify left hand or right hand hub for Item 6. Bushing enters from magnet side for L.H. hub and from hub side for R.H.
3. Specify Bore Size for Item 7.
4. Specify Inside Mounted for Items 11A and 12A or Outside Mounted for Items 11B and 12B.
5. See Controls Section.
| PCB-1225 Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Splined Hub | 540-0148 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Armature Assembly | 5323-111-001 | 1 |
| 3-1 | Armature | 5323-111-034 | 1 |
| 3-2 | Armature Adapter | 104-0010 | 1 |
| 3-3 | Autogap Spring | 808-0044 | 1 |
| 3-4 | Retainer Ring | 748-0370 | 1 |
| 3-5 | Buttonhead Screw | 797-0281 | 3 |
| 3-6 | Locknut | 661-0005 | 3 |
| 4 | Mounting Accessory | 5321-101-001 | 1 |
| 5 | Magnet | 1 | |
| 6 Volt | 5303-631-005 | ||
| 24 Volt | 5303-631-007 | ||
| 90 Volt | 5303-631-008 | ||
| 5-1 | Terminal Accessory | 5311-101-001 | 1 |
| 6 | Magnet Hub | 1 | |
| Right Hand | 5303-541-002 | ||
| Left Hand (shown) | 5303-541-001 | ||
| 6-1 | Collector Ring | 5301-749-001 | 1 |
| 6-2 | Collector Ring Accessory | 5303-101-004 | 1 |
| 7 | Bushing* | 180-0262 to 180-0295 | 1 |
| 8 | Brushholder | 5300-178-001 | 1 |
| 8-1 | Brush | 176-0001 | 4 |
| 9 | Armature | 5303-111-009 | 1 |
| 10 | Autogap Accessory | 5201-101-008 | 4 |
| 11A | Mounting Accessory | ||
| Inside Mounted | 5321-101-001 | 1 | |
| 11B | Mounting Accessory | ||
| Outside Mounted | 5321-101-002 | 2 | |
| 12A | Magnet – Inside Mounted | 1 | |
| 6 Volt | 5313-631-005 | ||
| 24 Volt | 5313-631-006 | ||
| 90 Volt | 5313-631-007 | ||
| 12A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 12B | Magnet – Outside Mounted | 1 | |
| 6 Volt | 5313-631-010 | ||
| 24 Volt | 5313-631-012 | ||
| 90 Volt | 5313-631-011 | ||
| 12B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 13 | Conduit Box | 5200-101-010 | 1 |
