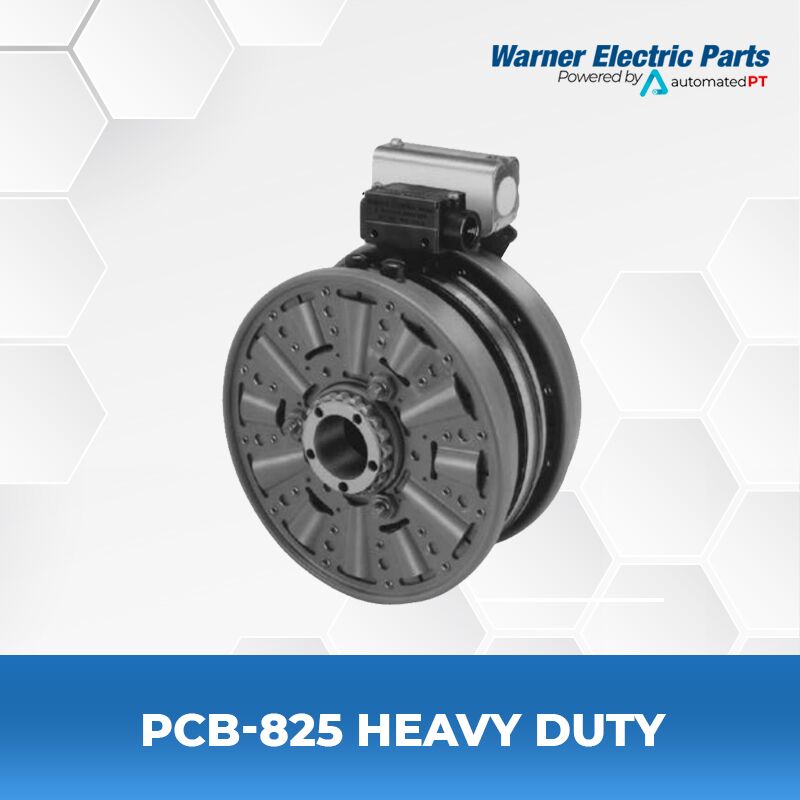

Warner Electric PCB-825 Heavy Duty
- PCB Series
- Voltage: 6/24/90 VDC
- Static Torque: 125 lb. ft
- Max RPM: 4,000 rpm
- Shaft Size: .500 – 1.625

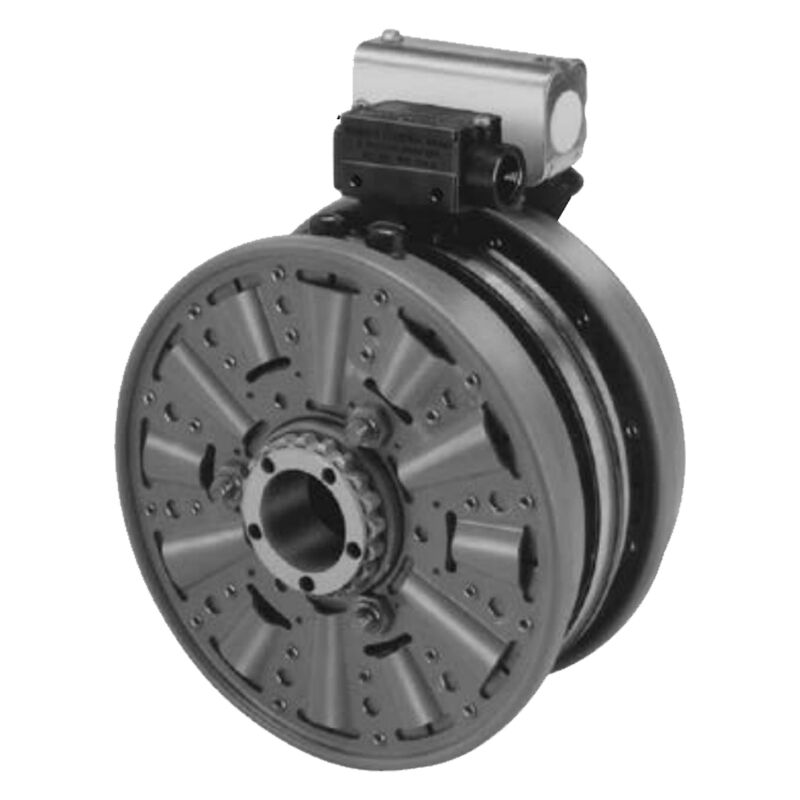

The PCB Series clutch-brakes combine a PC clutch and a PB brake into one compact design.
SPECIFICATIONS
| Model Name | PCB-825 |
| Function | Primary Clutch Brake |
| Shaft Size | .500 – 1.625 |
| Max. Rated Torque | 125 lb. ft. |
| Max. RPM | 4,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 9.25 Inches |
| Overall Length | 5.5 Inches |

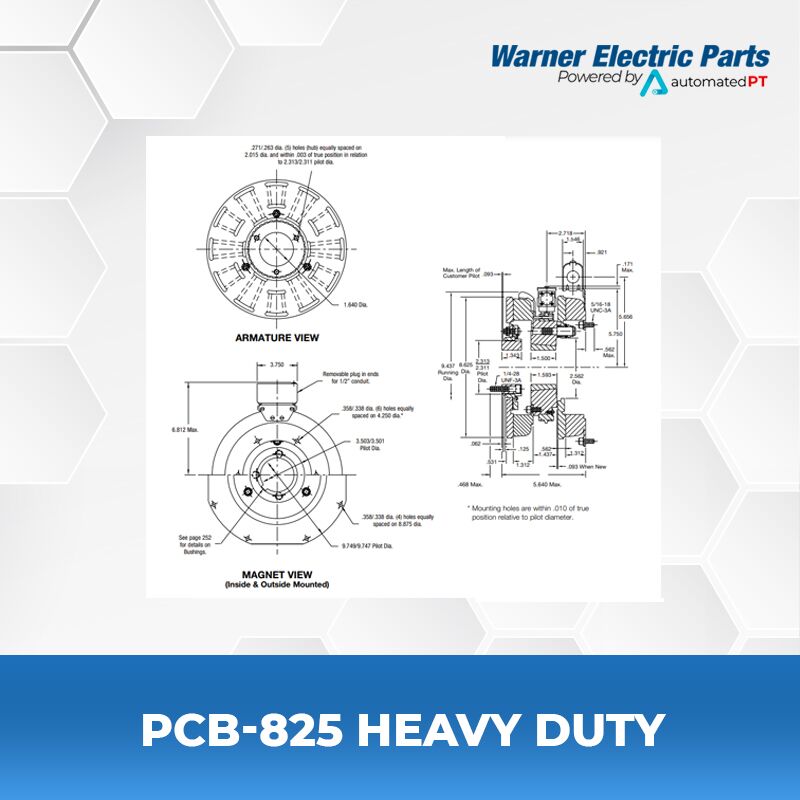

| Manufacturer Drawing | I-25569 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PCB-825 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PCB-825 ND Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Voltage for Item 4 and Item 11A or 11B.
2. Specify left hand or right hand hub for Item 5. Bushing enters from magnet side for L.H. hub and from hub side for R.H.
3. Specify Bore Size for Item 7.
4. Specify Inside Mounted for Items 10A and 11A or Outside Mounted for Items 10B and 11B.
5. See Controls Section.
Example:
PCB-825 Clutch Brake per I-25568 – 90 Volt, Left Hand hub, 1” Bore, Inside Mounted

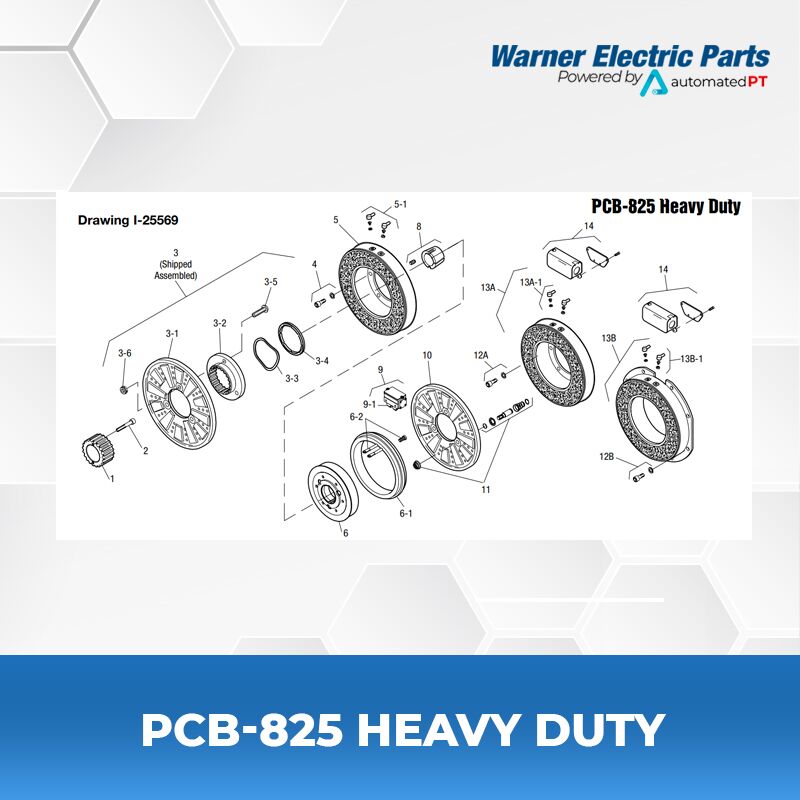

| PCB-825 Heavy Duty Parts List | |||
| Item | Description Part Number | Qty. | |
| 1 | Splined Hub 540-0146 | 1 | |
| 2 | Mounting Accessory 5201-101-001 | 1 | |
| 3 | Armature Accessory 5321-111-001 | 1 | |
| 3-1 | Armature 5321-111-022 | 1 | |
| 3-2 | Armature Adapter 104-0008 | 1 | |
| 3-3 | Autogap Spring 808-0054 | 1 | |
| 3-4 | Retainer Ring 748-0373 | 1 | |
| 3-5 | Buttonhead Screw 797-0272 | 3 | |
| 3-6 | Locknut 661-0004 | 3 | |
| 4 | Mounting Accessory 5321-101-001 | 1 | |
| 5 | Magnet | 1 | |
| 6 Volt 5301-631-002 | |||
| 24 Volt 5301-631-004 | |||
| 90 Volt 5301-631-005 | |||
| 5-1 | Terminal Accessory 5311-101-001 | 1 | |
| 6 | Magnet Hub | 1 | |
| Right Hand 5301-541-002 | |||
| Left Hand (shown) 5301-541-001 | |||
| 6-1 | Collector Ring 5301-749-001 | 1 | |
| 6-2 | Collector Ring Accessory 5301-101-002 | 1 | |
| 8 | Bushing* 180-0131 to 180-0149 | 1 | |
| 9 | Brushholder 5300-178-001 | 1 | |
| 9-1 | Brush 176-0001 | 4 | |
| 10 | Armature 5301-111-018 | 1 | |
| 11 | Autogap Accessory 5201-101-008 | 3 | |
| 12A | Mounting Accessory – I.M. 5321-101-001 | 1 | |
| 12B | Mounting Accessory – O.M. 5321-101-002 | 1 | |
| 13A | Magnet – Inside Mounted | 1 | |
| 6 Volt | 5311-631-002 | ||
| 24 Volt | 5311-631-003 | ||
| 90 Volt | 5311-631-004 | ||
| 13A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 13B | Magnet Hub – Outside Mounted | 1 | |
| 6 Volt | 5311-631-007 | ||
| 24 Volt | 5311-631-009 | ||
| 90 Volt | 5311-631-008 | ||
| 13B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 14 | Conduit Box | 5200-101-011 | 1 |
