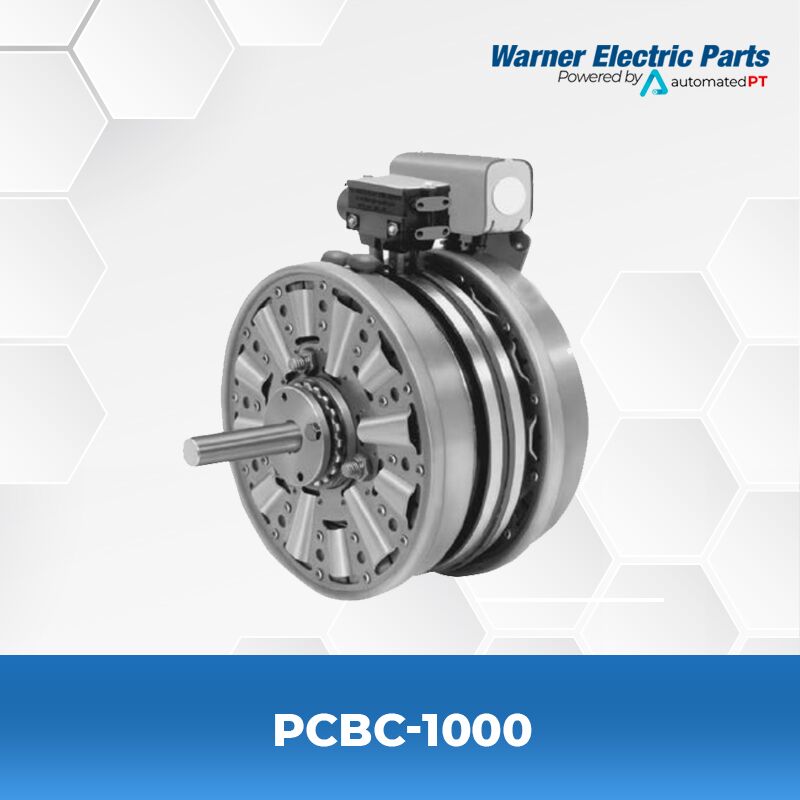

Warner Electric PCBC-1000

  • PCBC Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 240 lb.ft.
  • Max RPM: 3,600 rpm
  • Shaft Size: .750 – 2.687
  • Magnet Shaft Size: .500 – 2.500

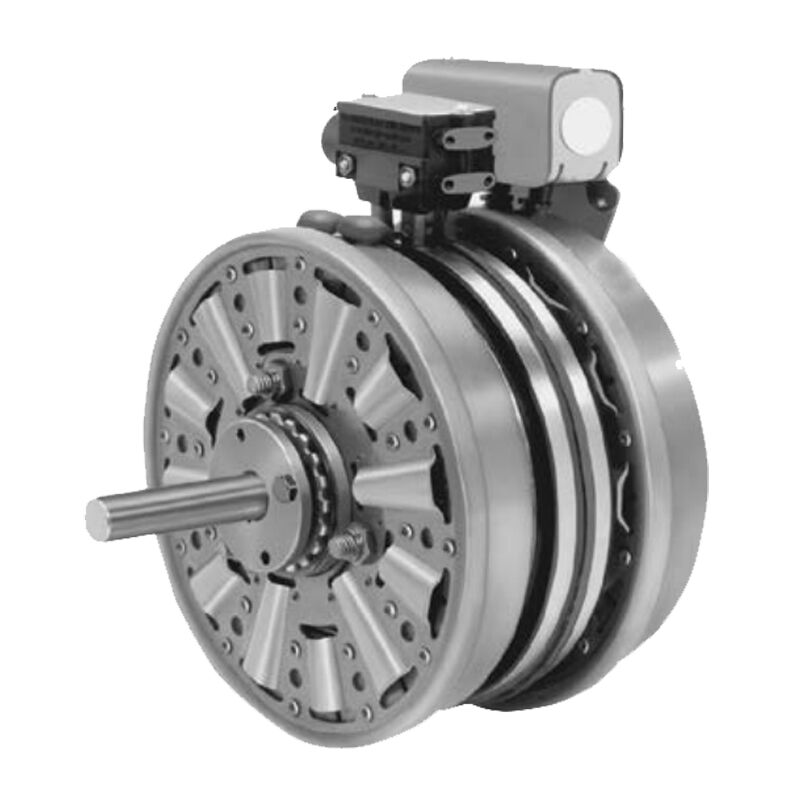

The PCBC clutch/brake coupling series combines a PCC clutch coupling with a PB brake.

SPECIFICATIONS

Model Name PCBC-1000
Function Primary Clutch/Brake Coupling
Armature Shaft .750 – 2.687
Magnetic Shaft .500 – 2.500
Max. Rated Torque 240 lb. ft.
Max. RPM 3,600 rpm
Standard Voltage 6, 24, 90 DC

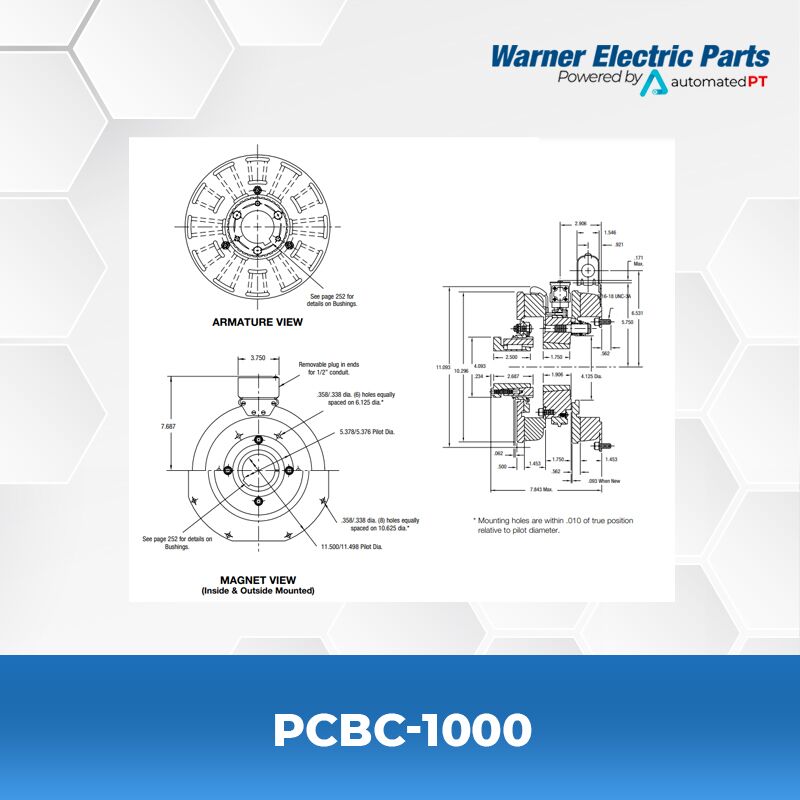

Outside Diameter 10.75 Inches
Overall Length 7.75 Inches
Manufacturer Drawing I-25590

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PCBC-1000 Users Manual / Installation Instructions
Quick Information Warner Electric PCBC-1000-ND Quick Info

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Bore Size for Items 1 and 9.
2. Specify Voltage for Items 6 and 13.
3. Specify left hand or right hand hub for Item 7. Bushing enters from magnet side for L.H. hub and from hub side for R.H.
4. Specify Inside Mounted for Items 12A and 13A or Outside Mounted for Items 12B and 13B.
5. See Controls Section.

Example:
PCBC-1000 Clutch Brake Coupling per I-25590 – 90 Volt, Inside Mounted, Left Hand hub, 1-1/2” Bore, (Items 1 and 9)

Warner Electric PCBC 1000 Quick Info

Warner MB Series Controls

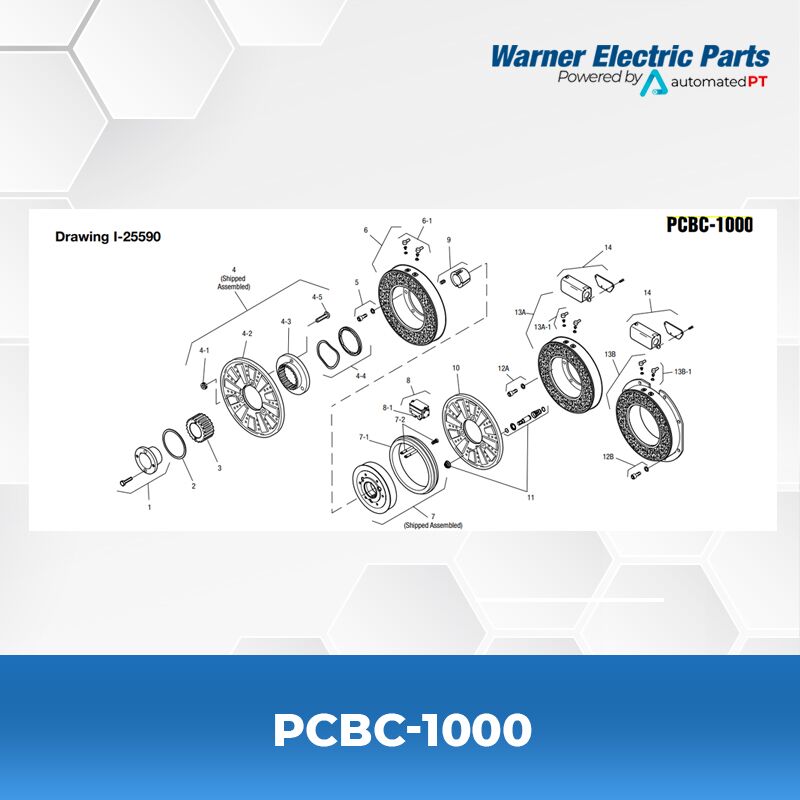

PCBC-1000 Parts List
Item Description Part Number Qty.
1 Bushing* 1
3/4″ to 2-11/16″ Bore 180-0026 to 180-0057
2 Retainer Ring 748-0007 1
3 Splined Hub 540-0062 1
4 Armature & Splined Adapter 5322-111-002 1
4-1 Locknut 661-0004 3
4-2 Armature 5322-111-036 1
4-3 Splined Adapter 104-0009 1
4-4 Autogap Accessory 5322-101-004 1
4-5 Screw 797-0272 3
5 Mounting Accessory 5321-101-001 1
6 Magnet 1
6 Volt 5302-631-003
24 Volt 5302-631-014
90 Volt 5302-631-005
6-1 Terminal Accessory 5311-101-001 1
7 Magnet Hub 1
Left Hand (shown) 5302-541-001
Right Hand 5302-541-002
7-1 Collector Ring 5301-749-001 1
7-2 Collector Ring Accessory 5302-101-002 1
8 Brushholder 5300-178-001 1
8-1 Brush 176-0001 4
9 Bushing* 1
1/2″ to 2-1/2″ Bore 180-0185 to 180-0217
10 Armature 5302-111-013 1
11 Autogap Accessory 5201-101-008 3
12A Mounting Accessory – I.M. 5321-101-001 1
12B Mounting Accessory – O.M. 5321-101-002 2
13A Magnet – Inside Mounted 1
6 Volt 5312-631-004
24 Volt 5312-631-005
90 Volt 5312-631-006
13A-1 Terminal Accessory 5311-101-001 1
13B Magnet – Outside Mounted 1
6 Volt 5312-631-011
24 Volt 5312-631-013
90 Volt 5312-631-012
13B-1 Terminal Accessory 5311-101-001 1
14 Conduit Box 5200-101-011 1
