Warner Electric PCBC-1225

  • PCBC Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 465 lb.ft.
  • Max RPM: 3,000 rpm
  • Shaft Size: .750 – 2.687
  • Magnet Shaft Size: .937 – 3.000

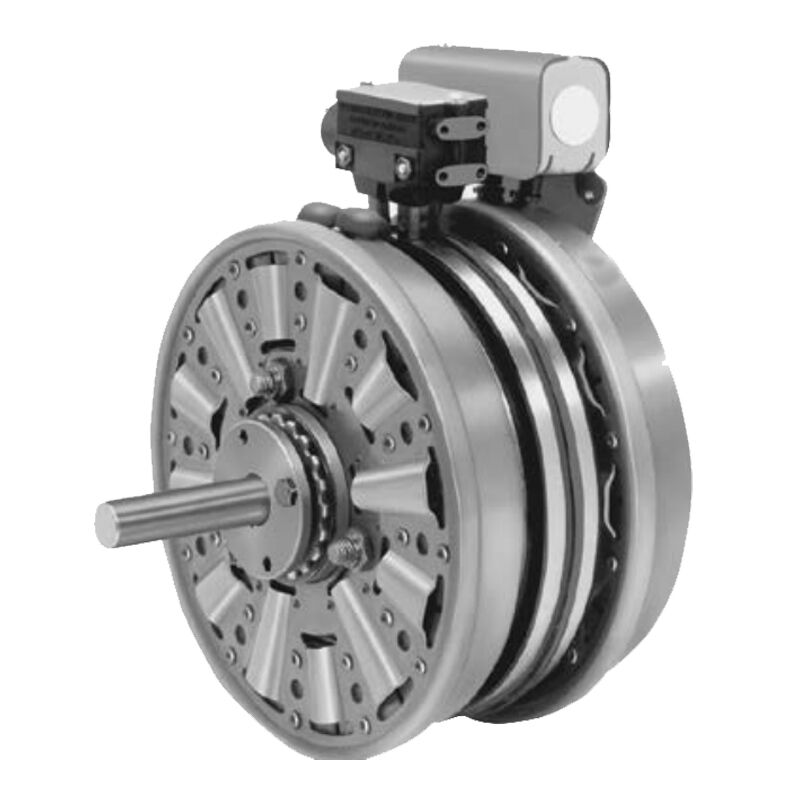

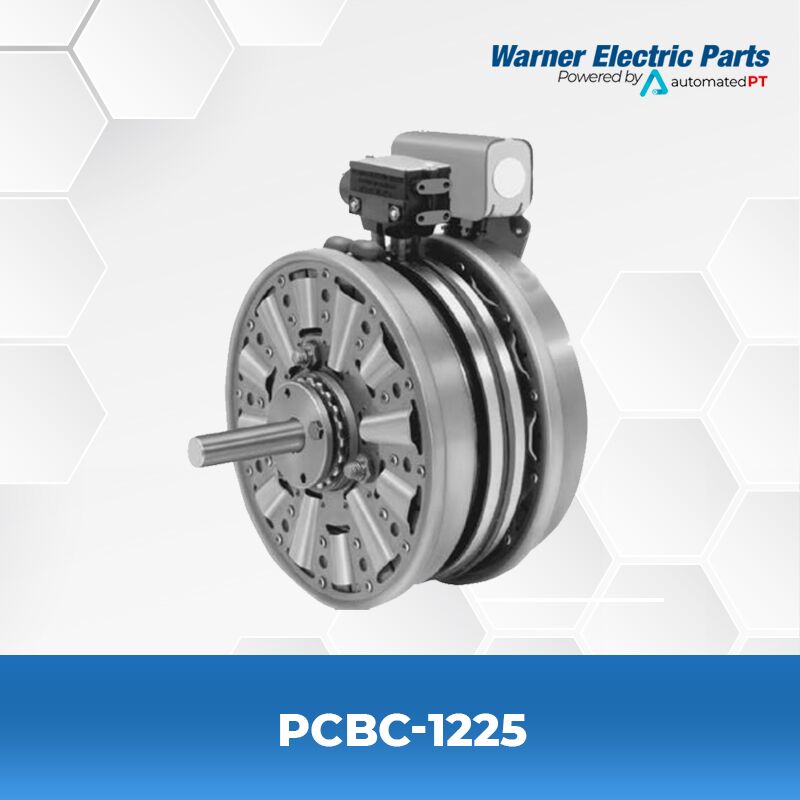

The PCBC clutch/brake coupling series combines a PCC clutch coupling with a PB brake.

SPECIFICATIONS

Model NamePCBC-1225
FunctionPrimary Clutch/Brake Coupling
Armature Shaft.750 – 2.687
Magnetic Shaft.937 – 3.000
Max. Rated Torque465 lb. ft.
Max. RPM3,000 rpm
Standard Voltage6, 24, 90 DC
Outside Diameter12.75 Inches
Overall Length8.75 Inches

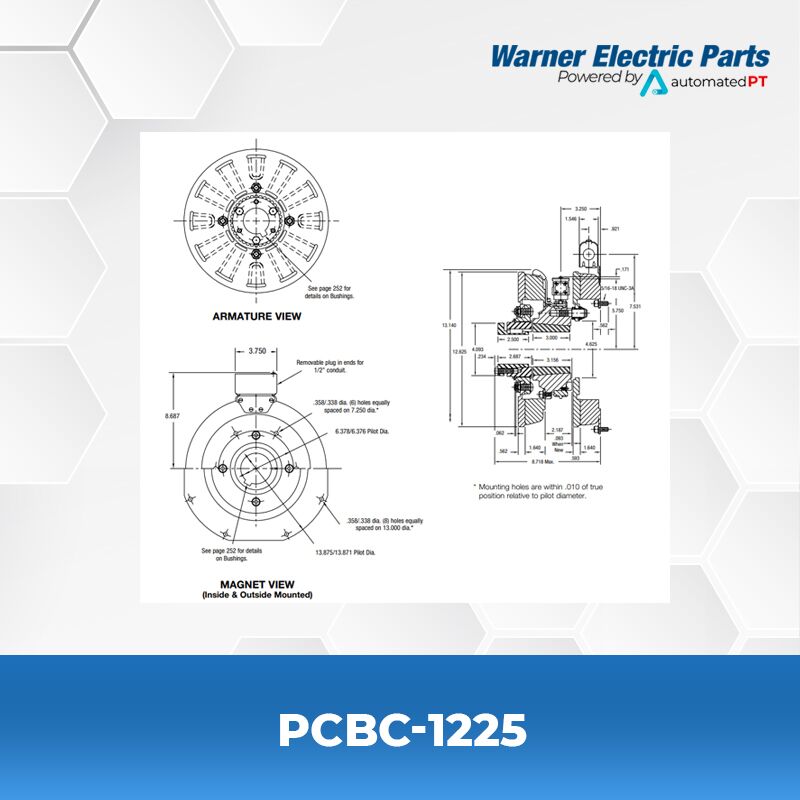

Manufacturer DrawingI-25612

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
CatalogWarner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation InstructionsWarner Electric PCBC-1225 Users Manual / Installation Instructions
Quick InformationWarner Electric PCBC-1225-ND Quick Info

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Bore Size for Items 1 and 9.
2. Specify Voltage for Items 6 and 13.
3. Specify left hand or right hand hub for Item 7. Bushing enters from magnet side for L.H. hub and from hub side for R.H.
4. Specify Inside Mounted for Items 12A and 13A or Outside Mounted for Items 12B and 13B.
5. See Controls Section.

Example:
PCBC-1225 Clutch Brake Coupling per I-25612 – 90 Volt, Inside Mounted Left Hand hub, 1-3/4” Bore (Items 1 and 9)

Warner Electric PCBC 1225 Quick Info

Warner MB Series Controls

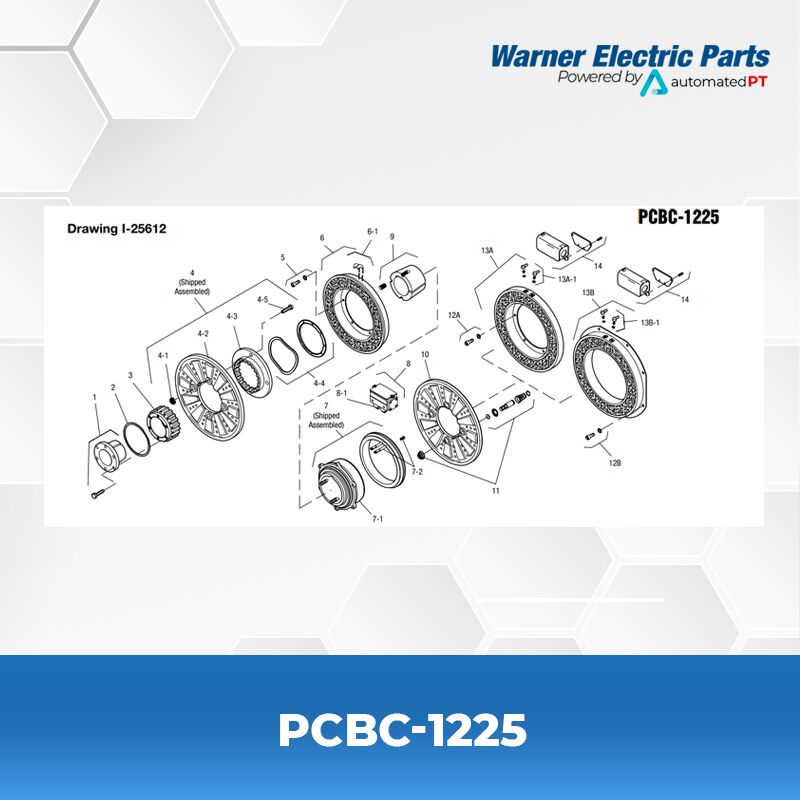

PCBC-1225 Parts List
ItemDescriptionPart NumberQty.
1Bushing*1
3/4″ to 2-11/16″ Bore180-0026 to 180-0057
2Retainer Ring748-00051
3Splined hub540-00641
4Armature & Splined Adapter5323-111-0011
4-1Locknut661-00054
4-2Armature5323-111-0341
4-3Splined Adapter104-00101
4-4Autogap Accessory5323-101-0021
4-5Screw797-02814
5Mounting Accessory5321-101-0011
6Magnet1
6 Volt5303-631-005
24 Volt5303-631-007
90 Volt5303-631-008
6-1Terminal Accessory5311-101-0011
7Magnet Hub1
Left Hand (shown)5303-541-001
Right Hand5303-541-002
7-1Collector Ring5301-749-0011
7-2Collector Ring Assembly5303-101-0041
8Brushholder5300-178-0011
8-1Brush176-00014
9Bushing*1
15/16″ to 3″ Bore180-0262 to 180-0295
10Armature5303-111-0091
11Autogap Accessory5201-101-0084
12AMounting Accessory – I.M.5321-101-0011
12BMounting Accessory – O.M.5321-101-0022
13AMagnet – Inside Mounted1
6 Volt5313-631-005
24 Volt5313-631-006
90 Volt5313-631-007
13A-1Terminal Accessory5311-101-0011
13BMagnet – Outside Mounted1
6 Volt5313-631-010
24 Volt5313-631-012
90 Volt5313-631-011
13B-1Terminal Accessory5311-101-0011
14Conduit Box5200-101-0111
