Warner Electric PCBC-825
- PCBC Series
- Voltage: 6/24/90 VDC
- Static Torque: 125 lb.ft.
- Max RPM: 4,000 rpm
- Shaft Size: .500 – 1.500
- Magnet Shaft Size: .500 – 1.625

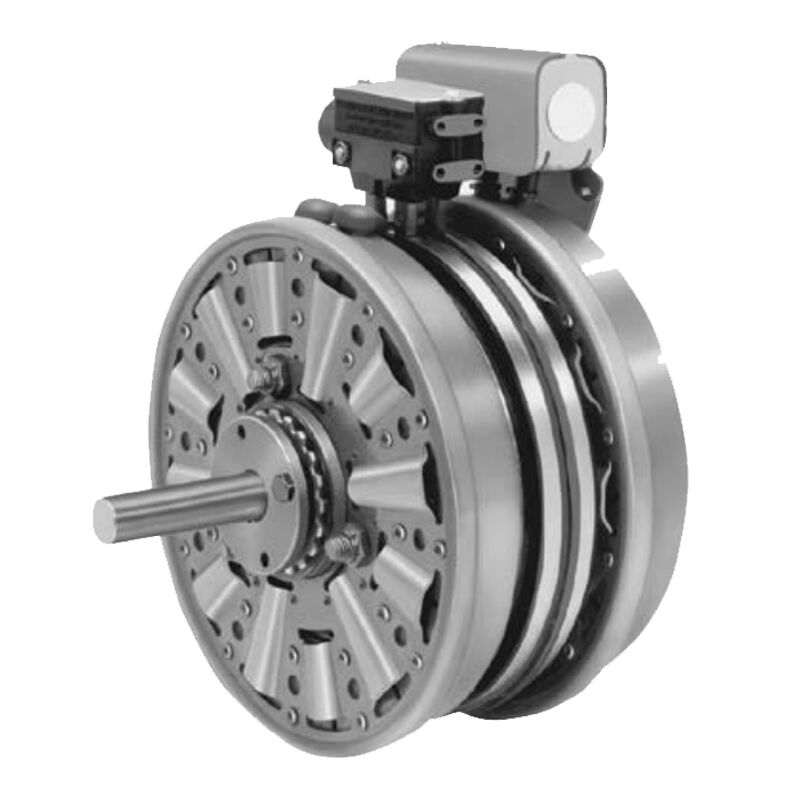

The PCBC clutch/brake coupling series combines a PCC clutch coupling with a PB brake.
SPECIFICATIONS
| Model Name | PCBC-825 |
| Function | Primary Clutch/Brake Coupling |
| Shaft Size | .500 – 1.500 |
| Max. Rated Torque | 125 lb. ft. |
| Max. RPM | 4,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 9.25 Inches |
| Overall Length | 6.25 Inches |

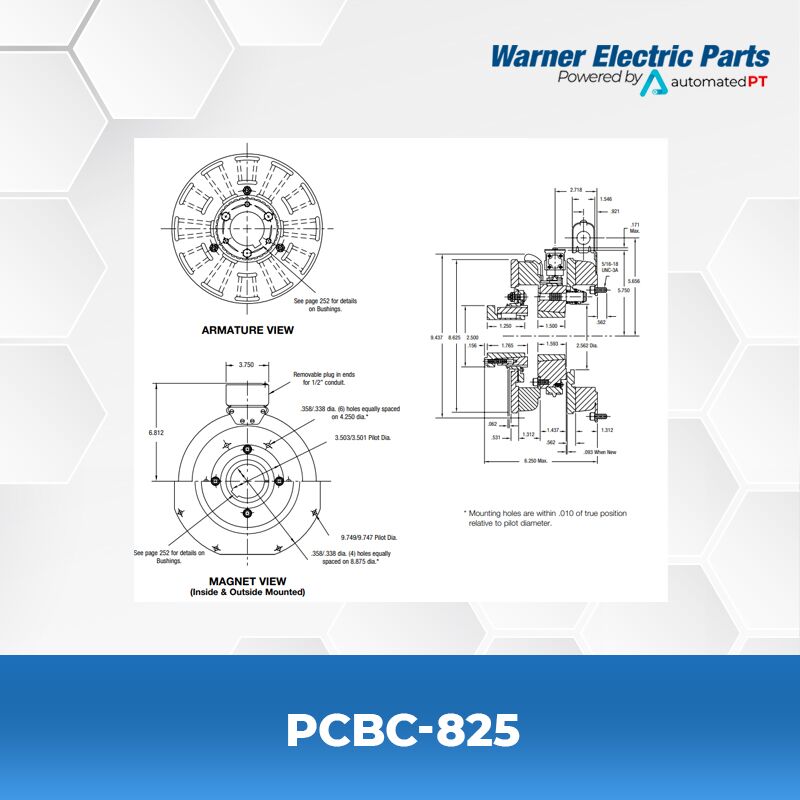

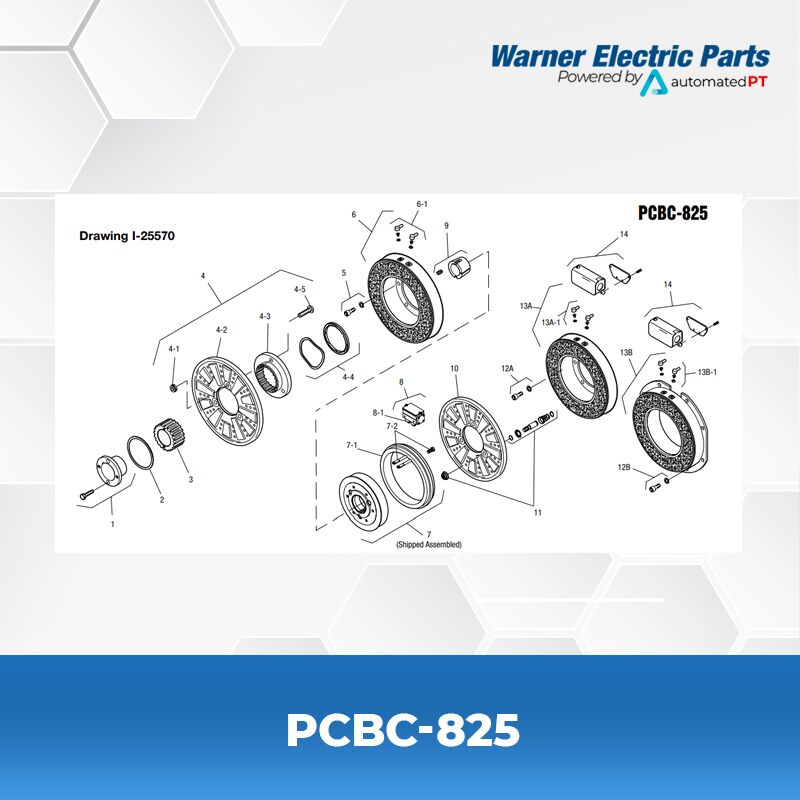

| Manufacturer Drawing | I-25570 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PCBC-825 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PCBC-825-ND Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Items 1 and 9.
2. Specify Voltage for Items 6 and 13.
3. Specify left hand or right hand hub for Item 7. Bushing enters from magnet side for L.H. hub and from hub side for R.H.
4. Specify Inside Mounted for Items 12A and 13A or Outside Mounted for Items 12B and 13B.
5. See Controls Section.
Example:
PCBC-825 Clutch Brake Coupling per I-25570 – 90 Volt, Inside Mounted, Left Hand hub, 1” Bore, ( Items 1 and 9)
| PCBC-825 Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Bushing* – 1/2″ to 1-1/2″ Bore | 180-0002 to 180-0018 | 1 |
| 2 | Retainer Ring | 748-0006 | 1 |
| 3 | Splined Hub | 540-0057 | 1 |
| 4 | Armature & Splined Adapter | 5321-111-001 | 1 |
| 4-1 | Locknut | 661-0004 | 3 |
| 4-2 | Armature | 5321-111-022 | 1 |
| 4-3 | Splined Adapter | 104-0008 | 1 |
| 4-4 | Autogap Accessory | 5321-101-006 | 1 |
| 4-5 | Screw | 797-0272 | 3 |
| 5 | Mounting Accessory | 5321-101-001 | 1 |
| 6 | Magnet | 1 | |
| 6 Volt | 5301-631-002 | ||
| 24 Volt | 5301-631-004 | ||
| 90 Volt | 5301-631-005 | ||
| 6-1 | Terminal Accessory | 5311-101-001 | 1 |
| 7 | Magnet Hub | 1 | |
| Left Hand (shown) | 5301-541-001 | ||
| Right Hand | 5301-541-002 | ||
| 7-1 | Collector Ring | 5301-749-001 | 1 |
| 7-2 | Collector Ring Accessory | 5301-101-002 | 1 |
| 8 | Brushholder | 5300-178-001 | 1 |
| 8-1 | Brush | 176-0001 | 4 |
| 9 | Bushing* – 1/2″ to 1-5/8″ Bore | 180-0131 to 180-0149 | 1 |
| 10 | Armature | 5301-111-018 | 1 |
| 11 | Autogap Accessory | 5201-101-008 | 3 |
| 12A | Mounting Accessory – I.M. | 5321-101-001 | 1 |
| 12B | Mounting Accessory – O.M. | 5321-101-002 | 1 |
| 13A Magnet – Inside Mounted | 1 | ||
| 6 Volt | 5311-631-002 | ||
| 24 Volt | 5311-631-003 | ||
| 90 Volt | 5311-631-004 | ||
| 13A-1 Terminal Accessory | 5311-101-001 | 1 | |
| 13B Magnet – Outside Mounted | 1 | ||
| 6 Volt | 5311-631-007 | ||
| 24 Volt | 5311-631-009 | ||
| 90 Volt | 5311-631-008 | ||
| 13B-1 Terminal Accessory | 5311-101-001 | 1 | |
| 14 Conduit Box | 5200-101-011 | 1 |
