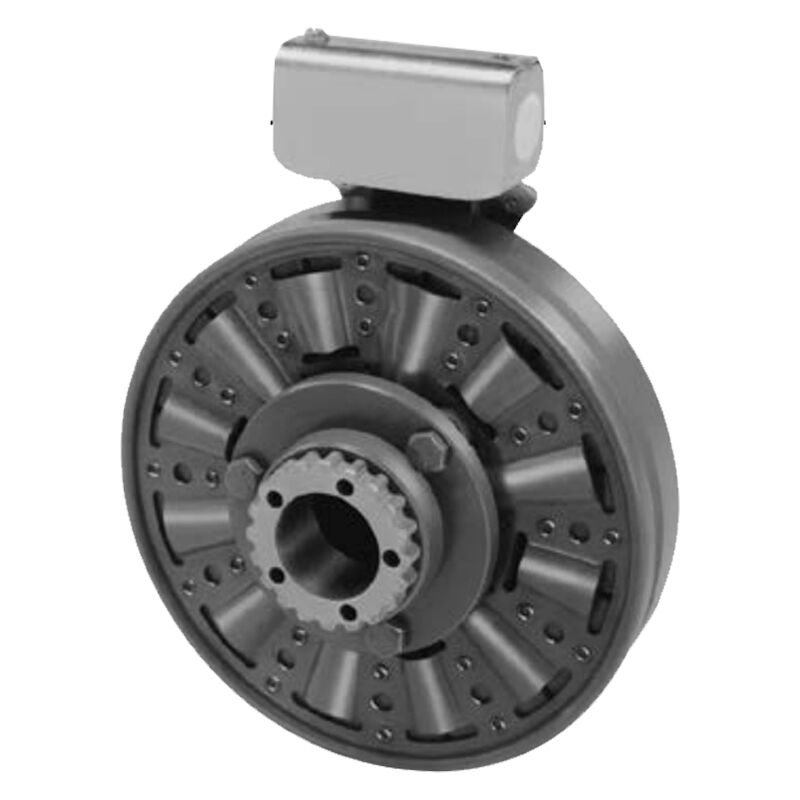

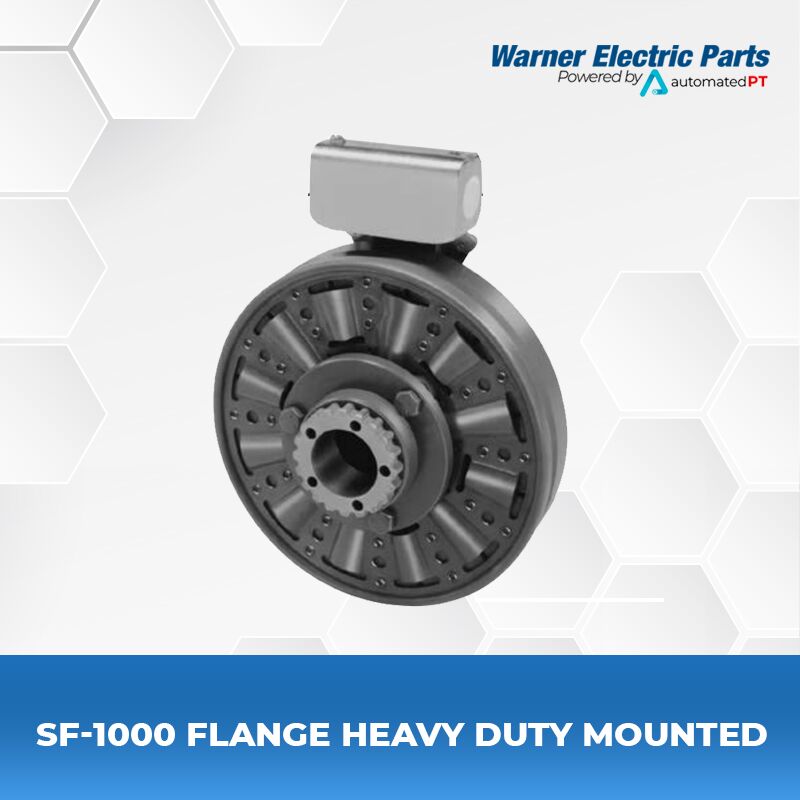

Warner Electric SF-1000 Flange Heavy Duty Mounted
- SF Series
- Model Size: sf-1000
- Voltage: 6/24/90 VDC
- Static Torque: 240 lb.ft.
- Max RPM: 3,600 rpm
- Shaft Size: .500 – 2.000
The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.
SPECIFICATIONS
| Model Name | SF-1000 Flange Heavy Duty Mounted |
| Function | Stationary Field Clutch |
| Shaft Size | .500 – 2.000 |
| Static Torque | 240 lb. ft. |
| Max. RPM | 3,600 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 10.5 Inches |
| Overall Length | 3.25 Inches |

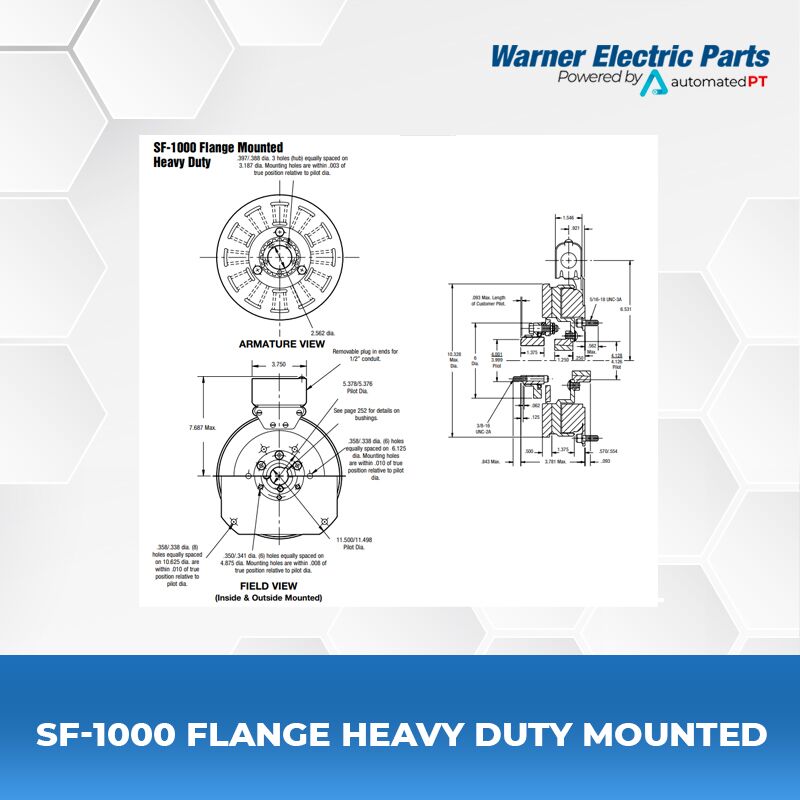

| Manufacturer Drawing | I-25581 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SF-1000 FM HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SF-1000 FM HD – Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 6.
2. Specify Voltage for Item 9A or 9B.
3. Specify Inside Mounted for Items 8A and 9A or Outside Mounted for Items 8B and 9B.
4. See Controls Section.
Example:
SF-1000 Clutch Coupling, Heavy Duty per I-25581 – 90 Volt, Inside Mounted, 1-1/4” Bore (Item 6)

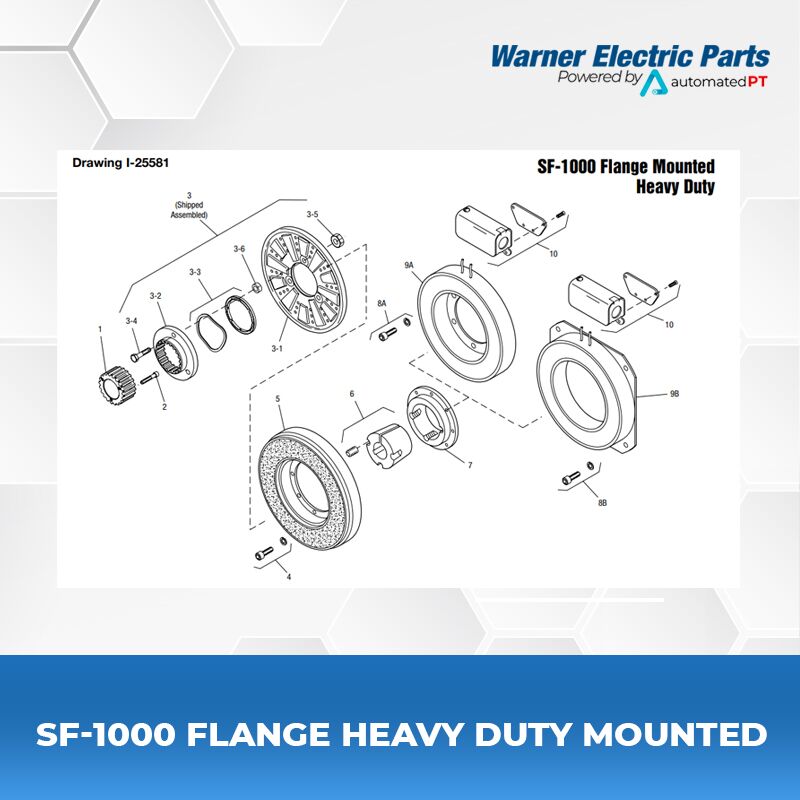

| SF-1000 Flange Mounted Parts List | |||
| Heavy Duty | |||
| Item | Description | Part Number | Qty. |
| 1 | Splined Hub | 540-0147 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Armature & Splined Adapter | 5202-111-001 | 1 |
| 3-1 | Armature | 5322-111-036 | 1 |
| 3-2 | Splined Adapter | 104-0009 | 1 |
| 3-3 | Autogap Accessory | 5322-101-004 | 1 |
| 3-4 | Screw | 797-0341 | 3 |
| 3-5 | Locknut | 661-0004 | 3 |
| 3-6 | Spacer | 748-0333 | 3 |
| 4 | Mounting Accessory | 5201-101-007 | 1 |
| 5 | Rotor | 1 | |
| Standard Friction Material | 5202-751-003 | ||
| Optional LK Facing | 5202-751-007 | ||
| 6 | Bushing, Taperlock* | 180-0155 to 180-0179 | 1 |
| 7 | Rotor Hub | 540-0315 | 1 |
| 8A | Mounting Accessory, I.M. | 5321-101-001 | 1 |
| 8B | Mounting Accessory, O.M. | 5321-101-002 | 2 |
| 9A | Field, Inside Mounted | 1 | |
| 6 Volt | 5202-451-004 | ||
| 24 Volt | 5202-451-006 | ||
| 90 Volt | 5202-451-007 | ||
| 4-4 | Retainer Ring | 748-0111 | 1 |
| 4-6 | Retainer Ring | 748-0016 | 1 |
| 5 | Bushing* | 180-0002 to180-0018 | 1 |
| 6 | Conduit Box | 5200-101-012 | 1 |
| 4-8 | Buttonhead Capscrew | 797-1261 | 6 |
| 4-9 | Ring Adapter | 748-1047 | 1 |
| 4-10 | Lockwasher | 950-0359 | 6 |
| 4-11 | Socket Head Capscrew | 797-0424 | 6 |
| 5 | Conduit Box | 5200-101-012 | 1 |
| 9B | Field, Outside Mounted | 1 | |
| 6 Volt | 5202-451-011 | ||
| 24 Volt | 5202-451-013 | ||
| 90 Volt | 5202-451-014 | ||
| 10 | Conduit Box | 5200-101-012 | 1 |
