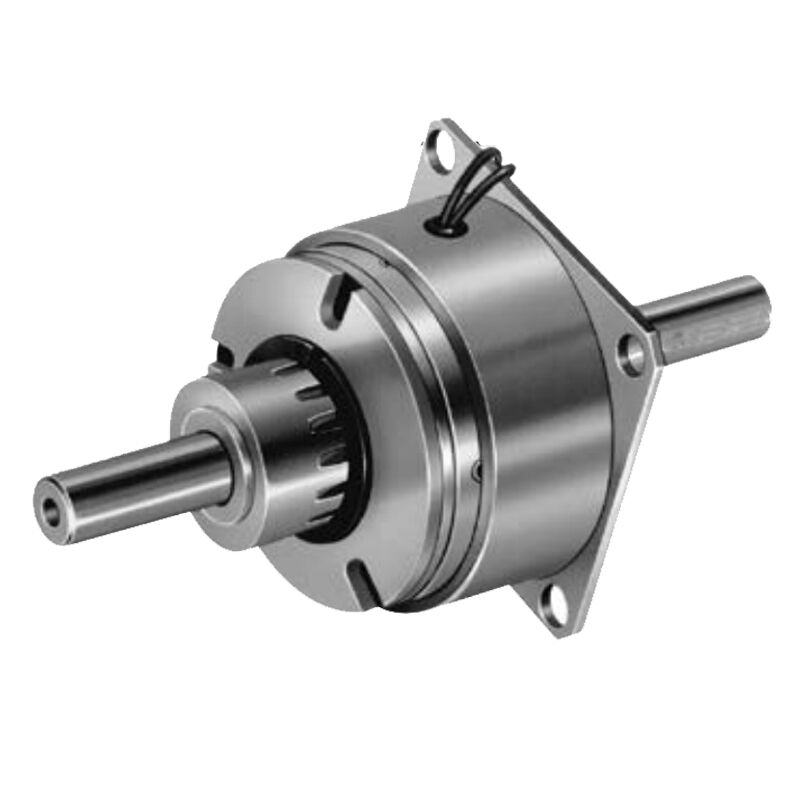

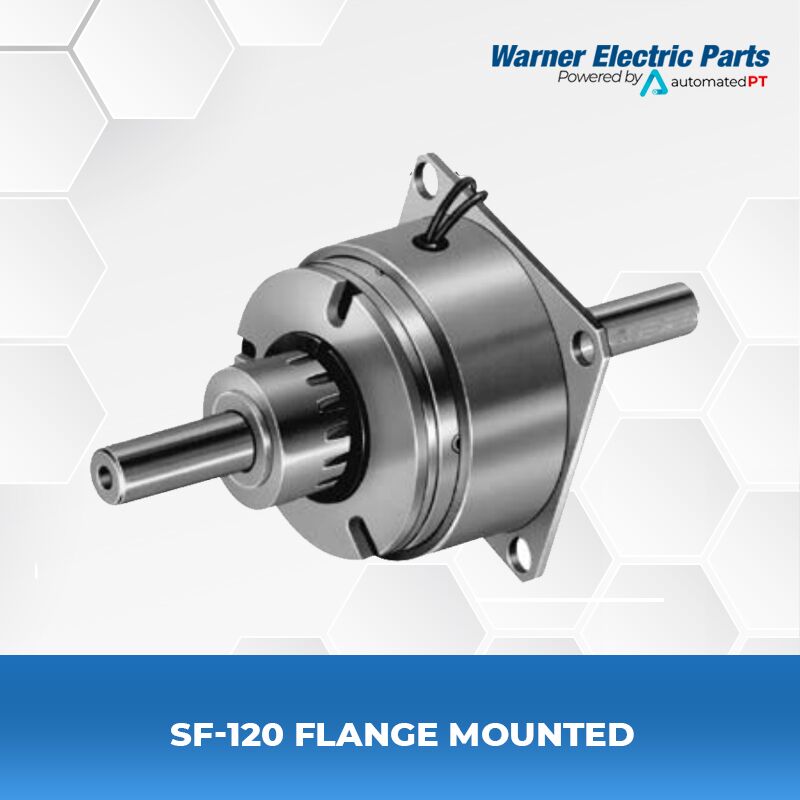

Warner Electric SF-120 Flange Mounted

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 5 lb.in
  • Max RPM: 3,600 rpm
  • Shaft Size: .188/.187- .313/.312
  • Armature Bore: .195/.190- .257/.252

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-120 Flange Mounted
Function Stationary Field Clutch
Static Torque 5 lb.in.
Max. RPM 3,600 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 1.25 Inches
Overall Length 1.5 Inches

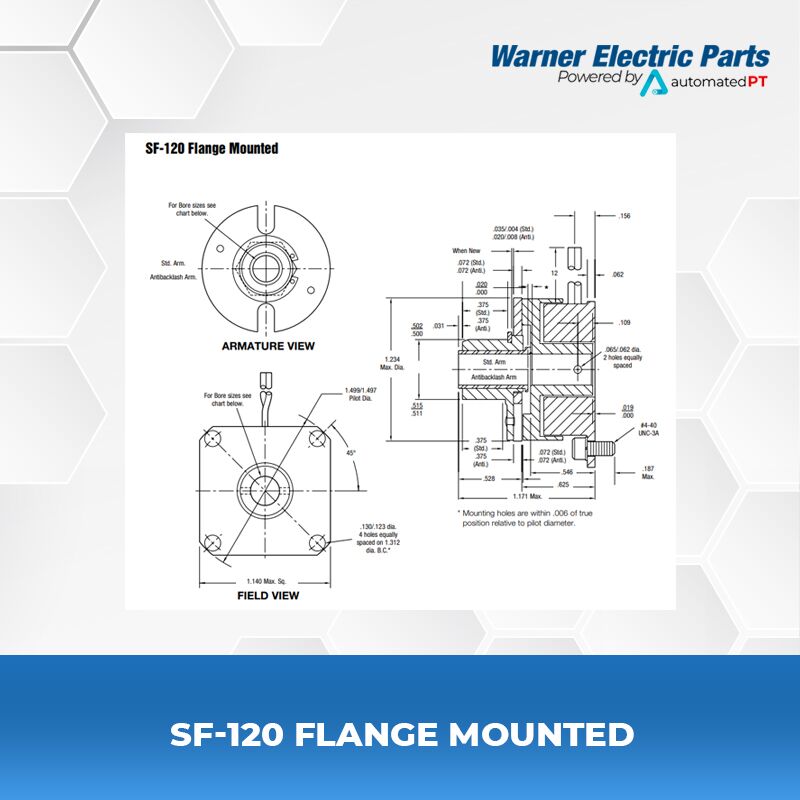

Manufacturer Drawing I-25508

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-120 FM Users Manual / Installation Instructions
Quick Information Warner Electric SF-120 FM Normal Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 4.
4. See Controls Section.

Warner Electric SF Series 120 FM

Warner MB Series Controls

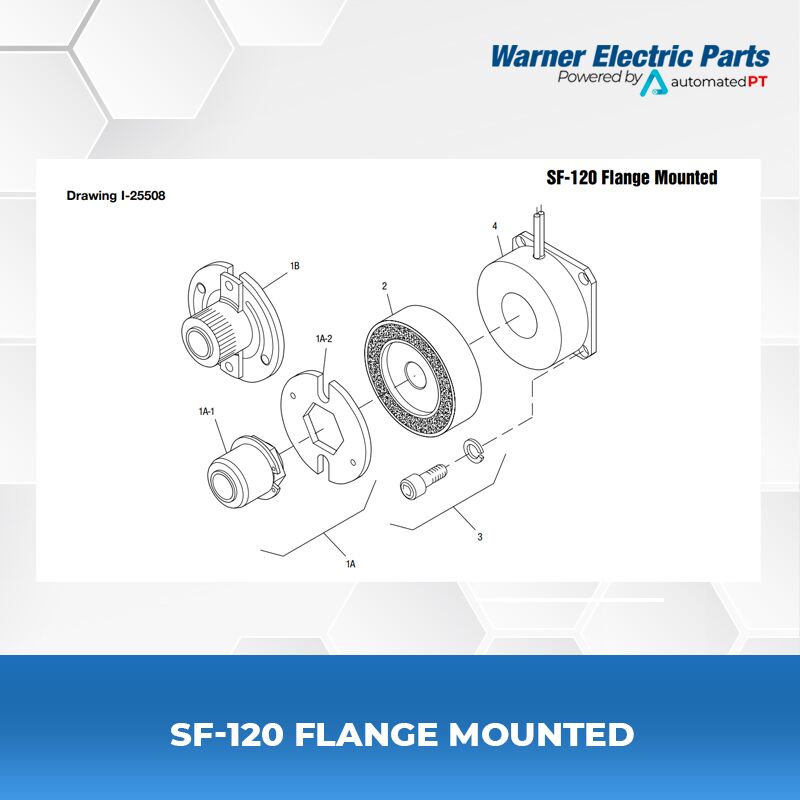

SF-120 Flange Mounted Parts List
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
3/16″ Bore 5602-541-009
1/4″ Bore 5602-541-008
1A-2 Armature 110-0110 1
1B Antibacklash Armature 1
3/16″ Bore 5602-111-002
1/4″ Bore 5602-111-003
5/16″ Bore 5602-111-007
2 Rotor 1
3/16″ Bore 5602-751-004
1/4″ Bore 5602-751-002
5/16″ Bore 5602-751-003
3 Mounting Accessory 5101-101-001 1
4 Field 1
6 Volt 5602-451-003
24 Volt 5602-451-005
90 Volt 5602-451-007
