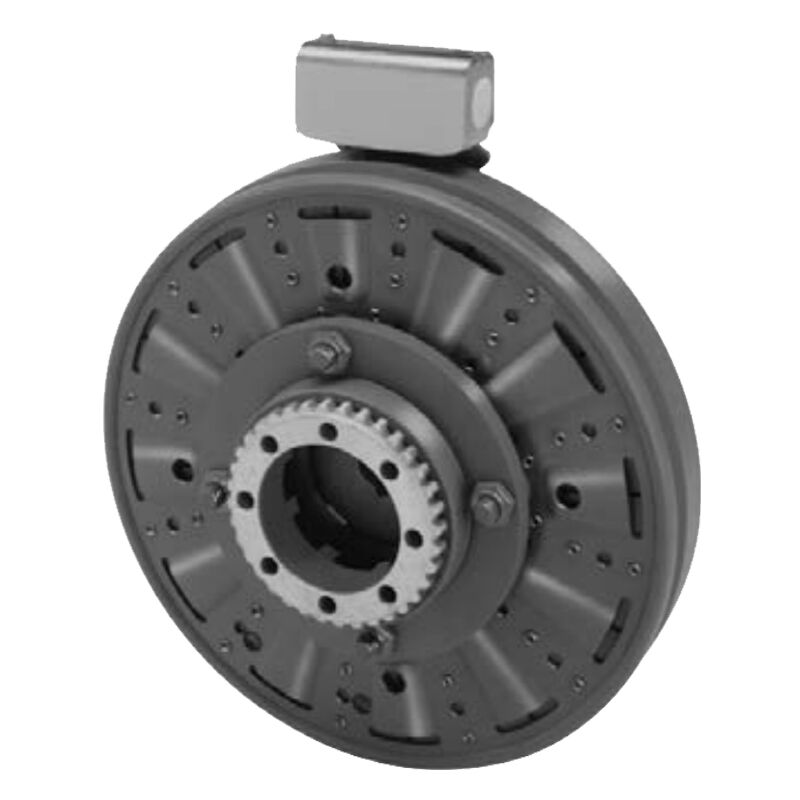

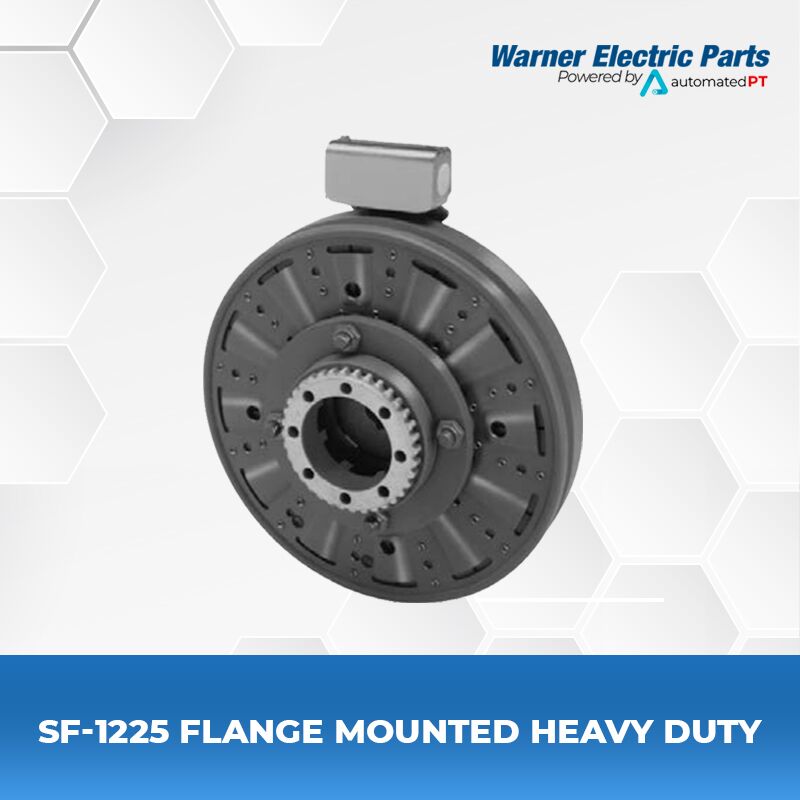

Warner Electric SF-1225 Flange Mounted Heavy Duty
- SF Series
- Voltage: 6/24/90 VDC
- Static Torque: 465lb.ft.
- Max RPM: 3,000 rpm
- Shaft Size: .500 – 2.500
The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.
SPECIFICATIONS
| Model Name | SF-1225 Flange Mounted Heavy Duty |
| Function | Stationary Field Clutch |
| Shaft Size | .500 – 2.000 |
| Static Torque | 465 lb. ft. |
| Max. RPM | 3,000 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 12.75 Inches |
| Overall Length | 3.50 Inches |

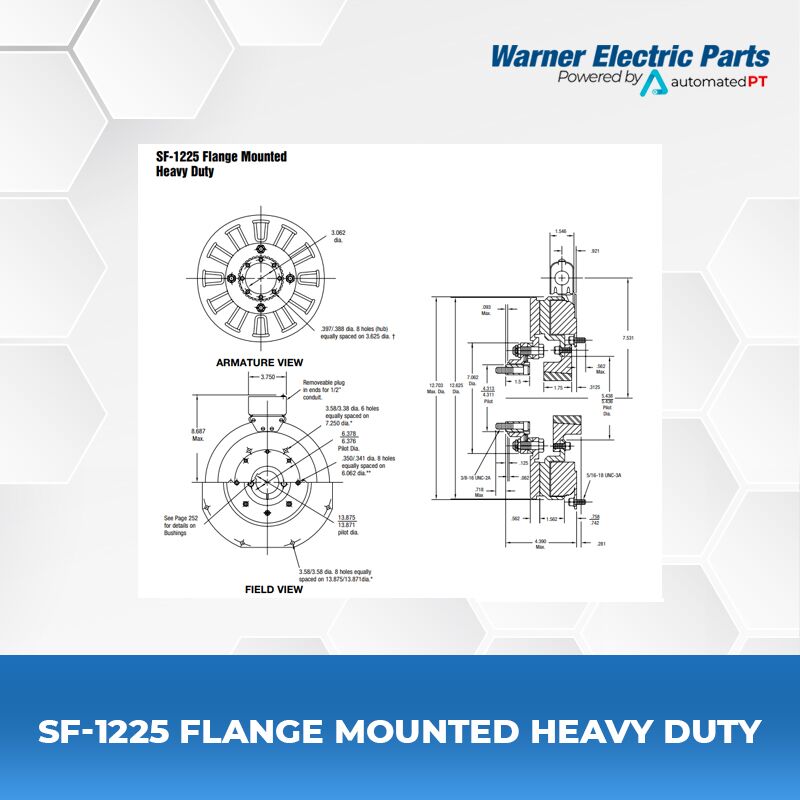

| Manufacturer Drawing | I-25601 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SF-1225 FM-HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SF-1225 FM – HD Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 6.
2. Specify Voltage for Item 9A or 9B.
3. Specify Inside Mounted for Items 8A and 9A or Outside Mounted for Items 8B and 9B.
4. See Controls Section.
Example:
SF-1225 Clutch per I-25601 – 90 Volt, 1-1/2” Bore, Inside Mounted.

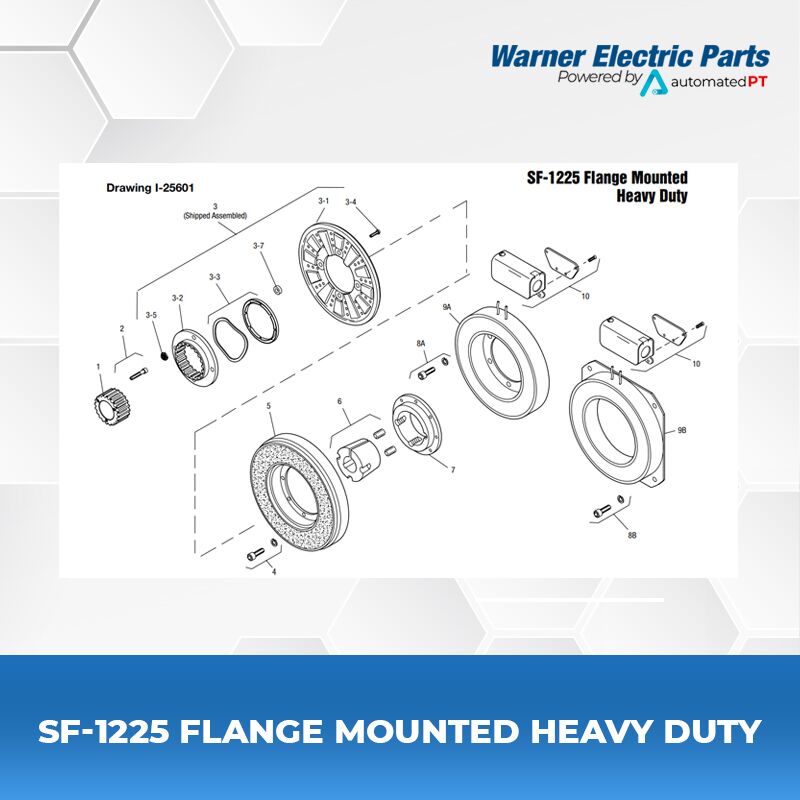

| SF-1225 Flange Mounted Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Splined Hub | 540-0148 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Armature and Splined Adapter | 5203-111-001 | 1 |
| 3-1 | Armature | 5323-111-034 | 1 |
| 3-2 | Splined Adapter | 104-0010 | 1 |
| 3-3 | Autogap Accessory | 5323-101-002 | 1 |
| 3-4 | Screw | 797-0356 | 4 |
| 3-5 | Locknut | 661-0005 | 4 |
| 3-7 | Spacer | 266-0004 | 4 |
| 4 | Mounting Accessory | 5321-101-002 | 2 |
| 5 | Rotor | 1 | |
| Standard Friction Material | 5203-751-001 | ||
| Optional LK Facing | 5203-751-004 | ||
| 6 | Bushing, Taperlock* | 180-0185 to 180-0217 | 1 |
| 7 | Rotor Hub | 540-0318 | 1 |
| 8A | Mounting Accessory, I.M. | 5321-101-001 | 1 |
| 8B | Mounting Accessory, O.M. | 5321-101-002 | 2 |
| 9A | Field, Inside Mtd. | 1 | |
| 6 Volt | 5203-451-002 | ||
| 24 Volt | 5203-451-006 | ||
| 90 Volt | 5203-451-005 | ||
| 9B | Field, Outside Mtd. | 1 | |
| 6 Volts | 5203-451-010 | ||
| 24 Volts | 5203-451-013 | ||
| 90 Volts | 5203-451-011 | ||
| 10 | Conduit Box | 5200-101-012 | 1 |
