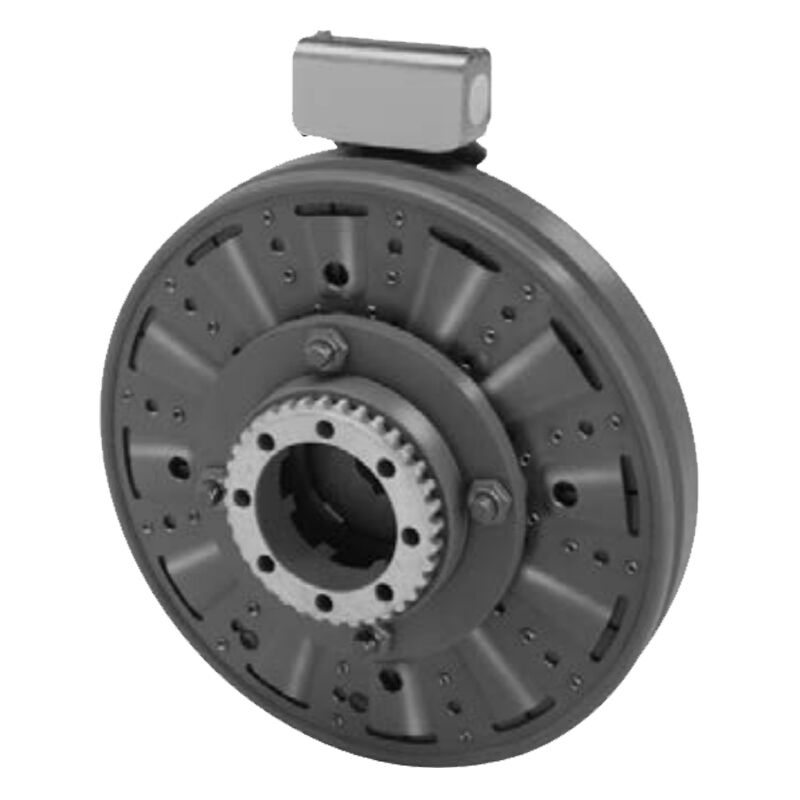

Warner Electric SF-1525 Flange Mounted Heavy Duty
- SF Series
- Voltage: 6/24/90 VDC
- Static Torque: 700 lb.ft.
- Max RPM: 2,000 rpm
- Shaft Size: .937 – 3.000
The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.
SPECIFICATIONS
| Model Name | SF-1525 Flange Mounted |
| Function | Stationary Field Clutch |
| Shaft Size | .937 – 3.000 |
| Static Torque | 700 lb. ft. |
| Max. RPM | 2,000 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 15.75 Inches |
| Overall Length | 4.25 Inches |

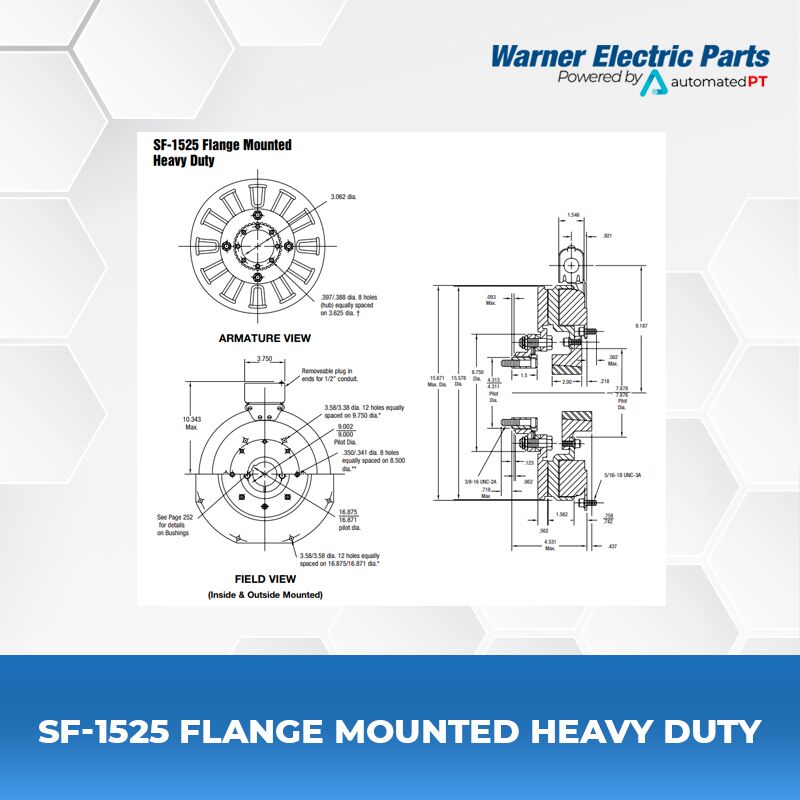

| Manufacturer Drawing | I-25626 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SF-1525 FM-HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SF-1525 FM-HD Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 5.
2. Specify Voltage for Item 7A or 7B.
3. Specify Inside Mounted for Items 7A and 8A or Outside Mounted for Items 7B and 8B.
4. See Controls Section.
Example:
SF-1525 Clutch per I-25625 – 90 Volt, 2” Bore, Inside Mounted.

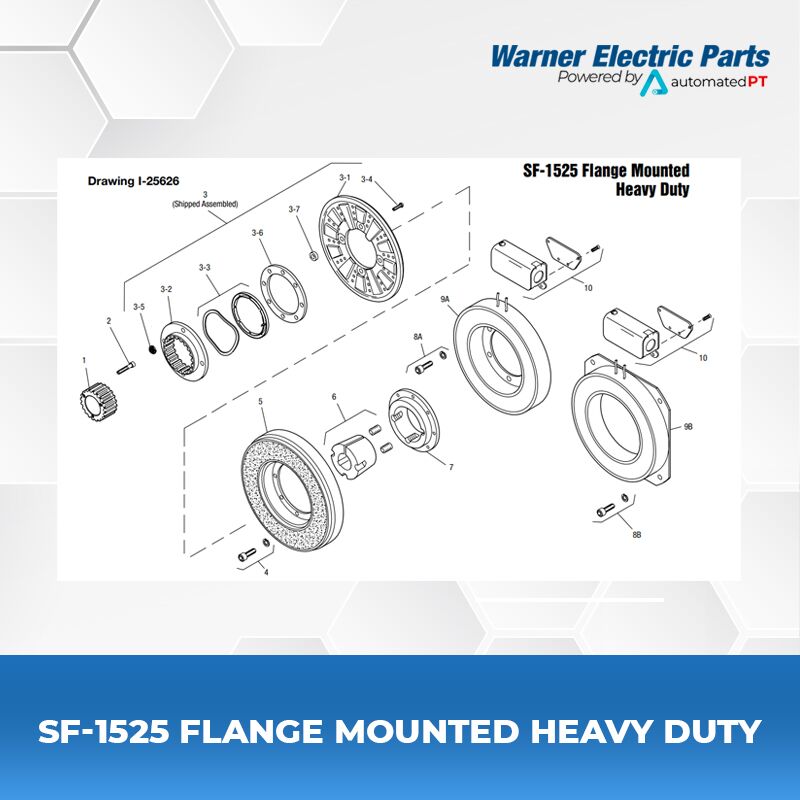

| SF-1525 Flange Mounted Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Splined Hub | 540-0148 | 1 |
| 2 | Mounting Accessory | 5202-101-001 | 1 |
| 3 | Armature and Splined Adapter | 5204-111-004 | 1 |
| 3-1 | Armature | 5324-111-034 | 1 |
| 3-2 | Splined Adapter | 104-0011 | 1 |
| 3-3 | Autogap Accessory | 5323-101-002 | 1 |
| 3-4 | Screw | 797-0342 | 8 |
| 3-5 | Locknut | 661-0004 | 8 |
| 3-6 | Retainer Plate | 686-0003 | 1 |
| 3-7 | Spacer | 748-0333 | 8 |
| 4 | Mounting Accessory | 5321-101-002 | 2 |
| 5 | Rotor | 1 | |
| Standard Friction Material | 5204-751-002 | ||
| Optional LK Facing | 5204-751-004 | ||
| 6 | Bushing, Taperlock* | 180-0223 to 180-0256 | 1 |
| 7 | Rotor Hub | 540-0004 | 1 |
| 8A | Mounting Accessory, I.M. | 5321-101-001 | 2 |
| 8B | Mounting Accessory, O.M. | 5321-101-002 | 2 |
| 9A | Field, Inside Mtd. | 1 | |
| 6 Volt | 5204-451-013 | ||
| 24 Volt | 5204-451-015 | ||
| 90 Volt | 5204-451-016 | ||
| 9B | Field, Outside Mtd. | 1 | |
| 6 Volt | 5204-451-055 | ||
| 24 Volt | 5204-451-056 | ||
| 90 Volt | 5204-451-057 | ||
| 10 | Conduit Box | 5200-101-012 | 1 |
