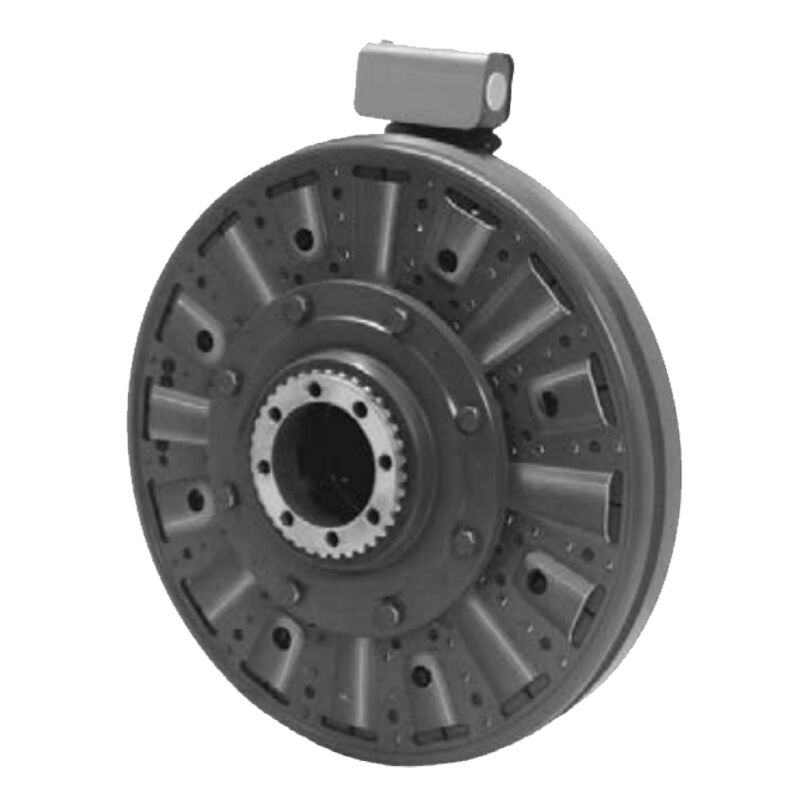

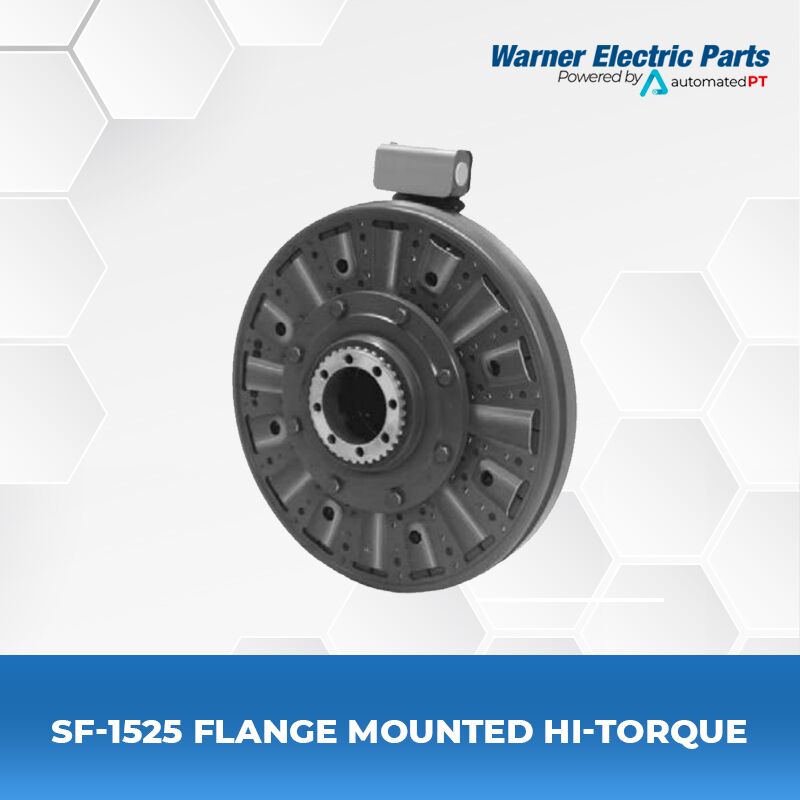

Warner Electric SF-1525 Flange Mounted Hi-Torque

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 1,350 lb.ft.
  • Max RPM: 2,000 rpm
  • Shaft Size: .937 – 3.000

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-1525 Flange Mounted Hi-Torque
Function Stationary Field Clutch
Shaft Size .937 – 3.000
Static Torque 1,350 lb. ft.
Max. RPM 2,000 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 15.75 Inches
Overall Length 4.25 Inches

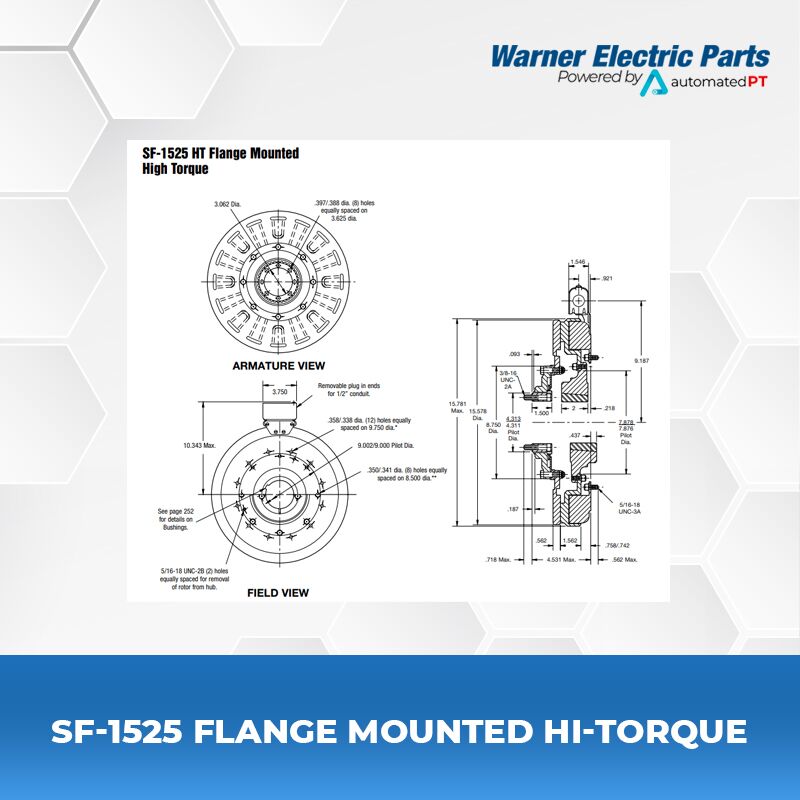

Manufacturer Drawing I-25627

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-1525 Flange Mounted Hi-Torque Users Manual / Installation Instructions
Quick Information Warner Electric SF-1525 Flange Mounted Hi-Torque Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 5.
2. Specify Voltage for Item 4.
3. See Controls Section.

Example:
SF-1525 Clutch Hi-Torque per I-25643 – 90 Volt, 1” Bore

Warner Electric SF Series HT FL



Warner MB Series Controls

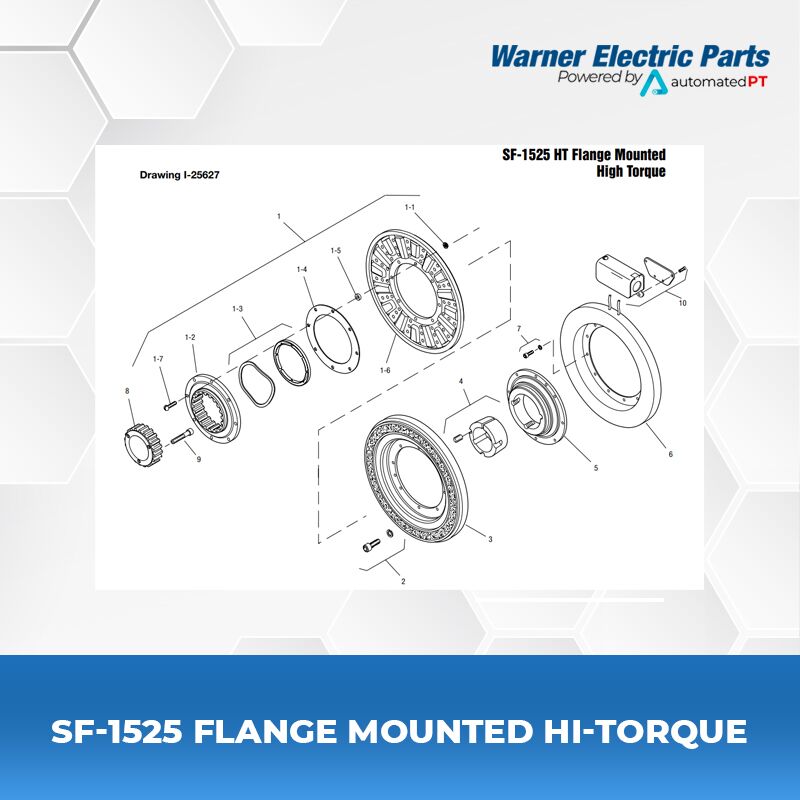

SF-1525 H.T. Flange Mounted Parts List
Item Description Part Number Qty.
1 Armature Assembly 5204-111-004 1
1-1 Locknut 661-0004 8
1-2 Splined Adapter 104-0011 1
1-3 Autogap Accessory 5323-101-002 1
1-4 Retainer Plate 686-0003 1
1-5 Spacer 748-0333 8
1-6 Armature 5324-111-034 1
1-7 Screw 797-0342 8
2 Mounting Accessory 5321-101-002 2
3 Rotor 5204-751-001 1
4 Bushing*
15/16″ to 3″ Bore 180-0223 to 180-0256 1
5 Rotor Hub 540-0004 1
6 Field – Inside Mounted 1
6 Volt 5204-451-005
90 Volt 5204-451-006
7 Mounting Accessory – I.M. 5321-101-001 2
8 Splined Hub 540-0148 1
9 Mounting Accessory 5202-101-001 1
10 Conduit Box 5200-101-012 1
