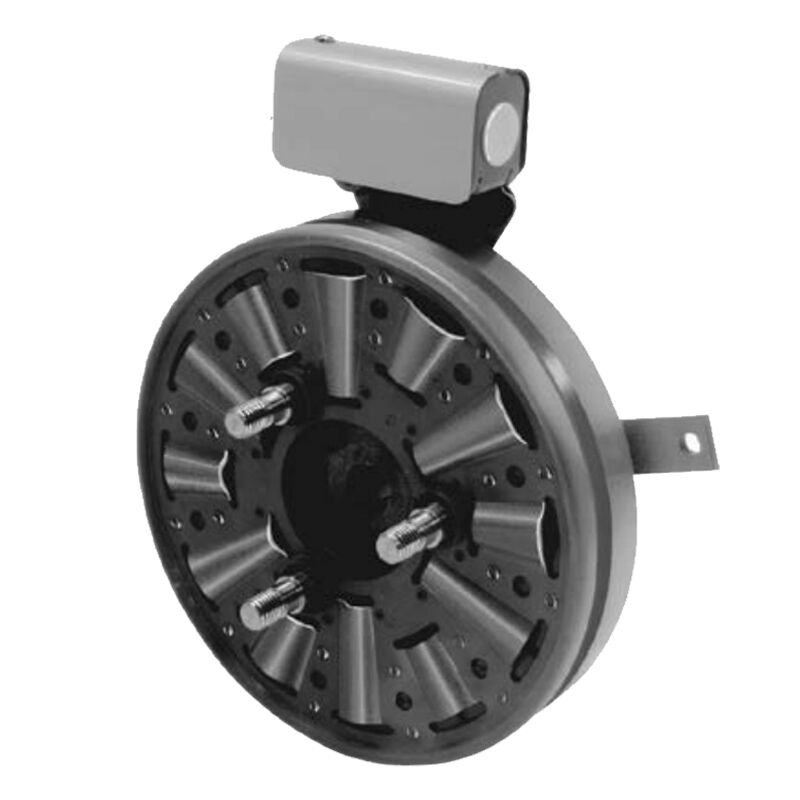

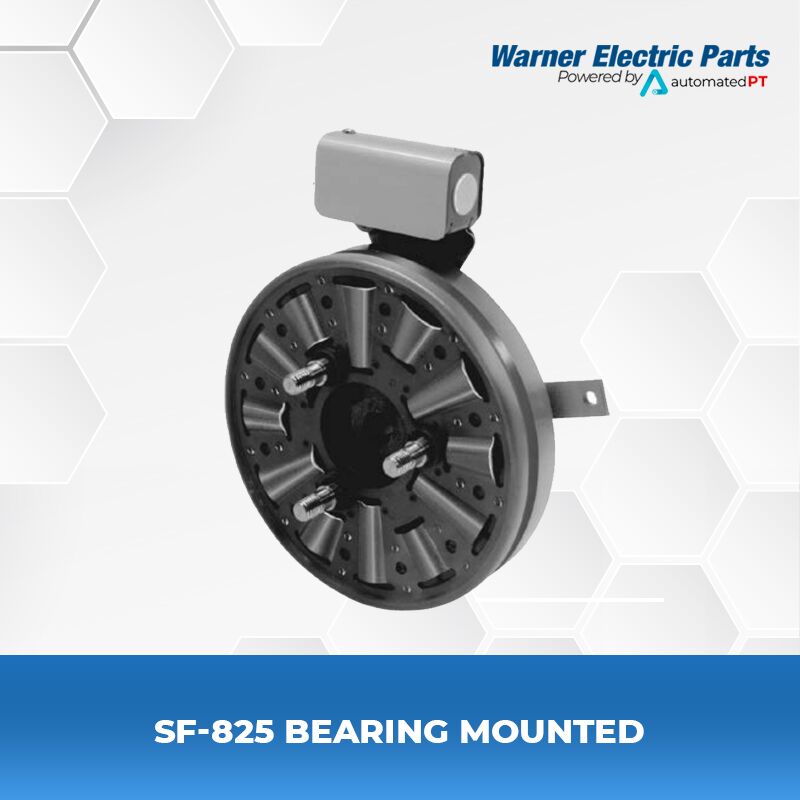

Warner Electric SF-825 Bearing Mounted

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 150 lb.ft.
  • Max RPM: 3,600 rpm
  • Shaft Size: .500 – 1.500

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

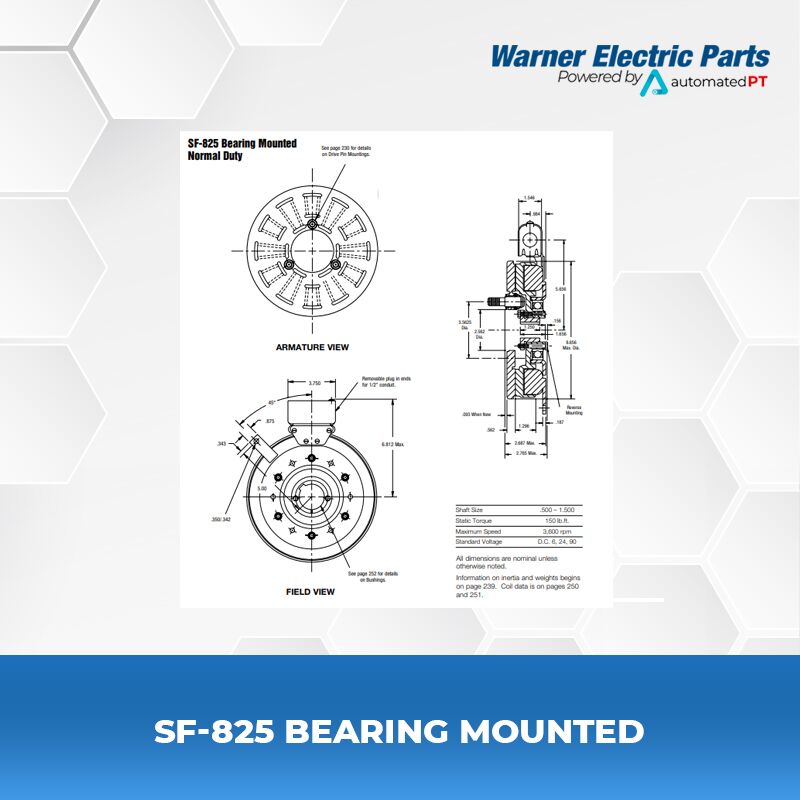

Model Name SF-825 Bearing Mounted
Function Stationary Field Clutch
Shaft Size .500 – 1.500
Static Torque 150 lb. ft.
Max. RPM 3,600 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 8.50 Inches
Overall Length 2.75 Inches
Manufacturer Drawing I-25575

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-825 BM Users Manual / Installation Instructions
Quick Information Warner Electric SF-825 BM Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 3.
2. Specify Voltage for Items 7A or 7B.
3. Specify Inside Mounted for Items 7A and 8A or Outside Mounted for Items 7B and 8B.
4. See Controls Section.

Example:
SF-825 Clutch per I-25560 -90 Volt, 1” Bore, Inside Mounted

SF Series 825 BM





Warner MB Series Controls

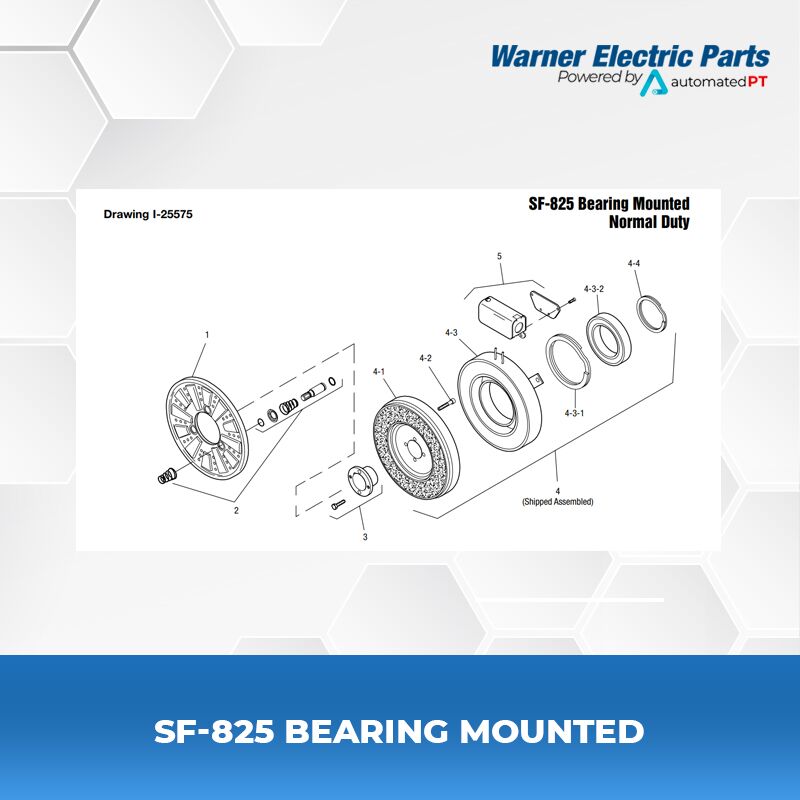

SF-825 Bearing Mounted Parts List
Normal Duty Description Part Number Qty.
1 Armature 5301-111-018 1
2 Autogap Accessory 5201-101-008 3
3 Bushing* 1
1/2″ to 1-1/2″ Bore 180-0002 to 180-0018
4 Field & Rotor Assembly 1
6 Volt 5201-452-002
24 Volt 5201-452-004
90 Volt 5201-452-006
4-1 Rotor 1
Standard Friction Material 5201-751-008
Optional LK Facing 5201-751-014
4-2 Mounting Accessory 5201-101-005 1
4-3 Field & Bearing Assembly 1
6 Volt 5201-451-054
24 Volt 5201-451-056
90 Volt 5201-451-057
4-3-1 Retainer Ring 748-0111 1
4-3-2 Ball Bearing 166-0142 1
4-4 Retainer Ring 748-0016 1
5 Conduit Box 5200-101-012 1
