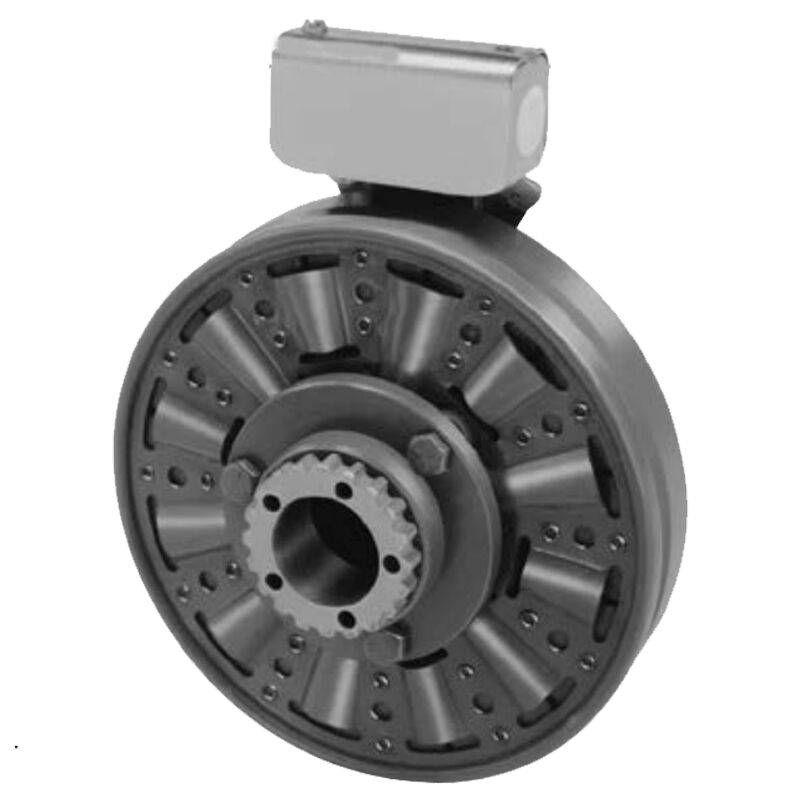

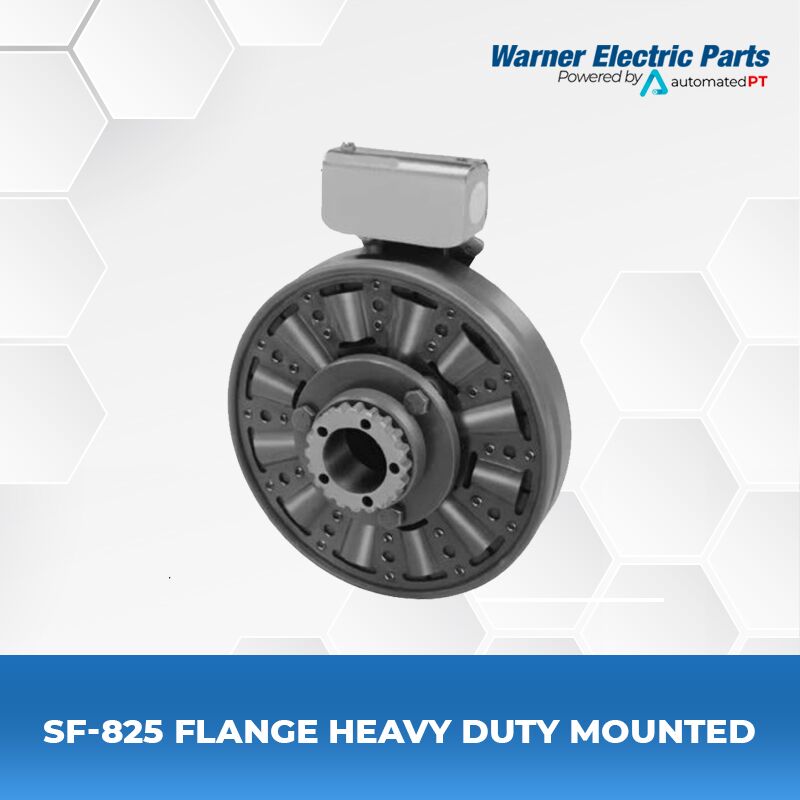

Warner Electric SF-825 Flange Heavy Duty Mounted

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 125 lb.ft.
  • Max RPM: 4,000 rpm
  • Shaft Size: .500 – 1.250

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-825 Flange Heavy Duty
Function Stationary Field Clutch
Shaft Size .500 – 1.250
Static Torque 125 lb. ft.
Max. RPM 4,000 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 8.50 Inches
Overall Length 3 Inches

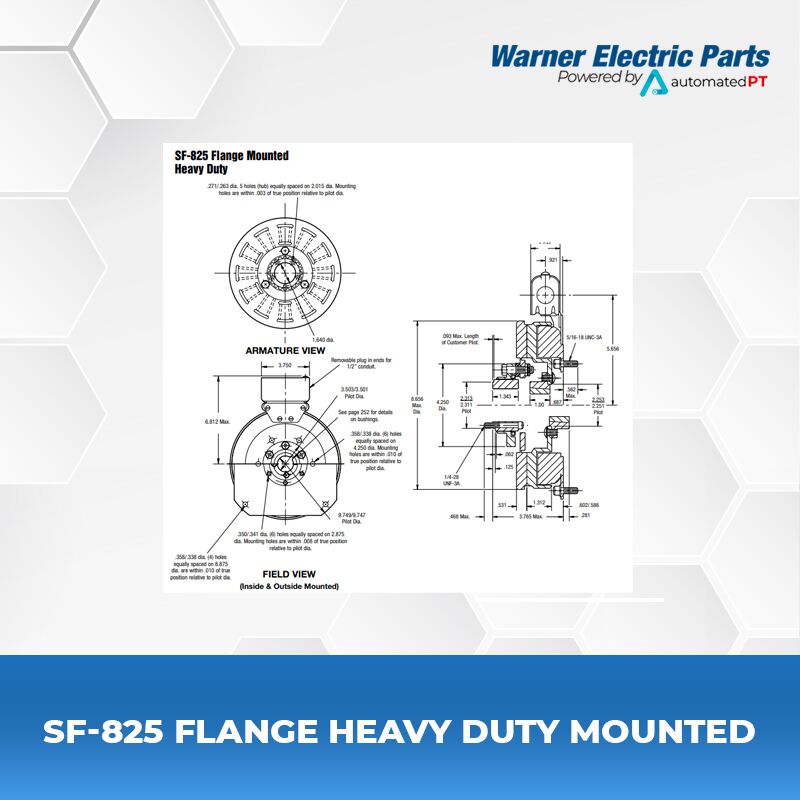

Manufacturer Drawing I-25561

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-825 FM-HD Users Manual / Installation Instructions
Quick Information Warner Electric SF-825 FM – HD Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 3.
2. Specify Voltage for Items 7A or 7B.
3. Specify Inside Mounted for Items 7A and 8A or Outside Mounted for Items 7B and 8B.
4. See Controls Section.

Example:
SF-825 Clutch per I-25560 -90 Volt, 1” Bore, Inside Mounted

Warner Electric SF Series 825 FM HD





Warner MB Series Controls

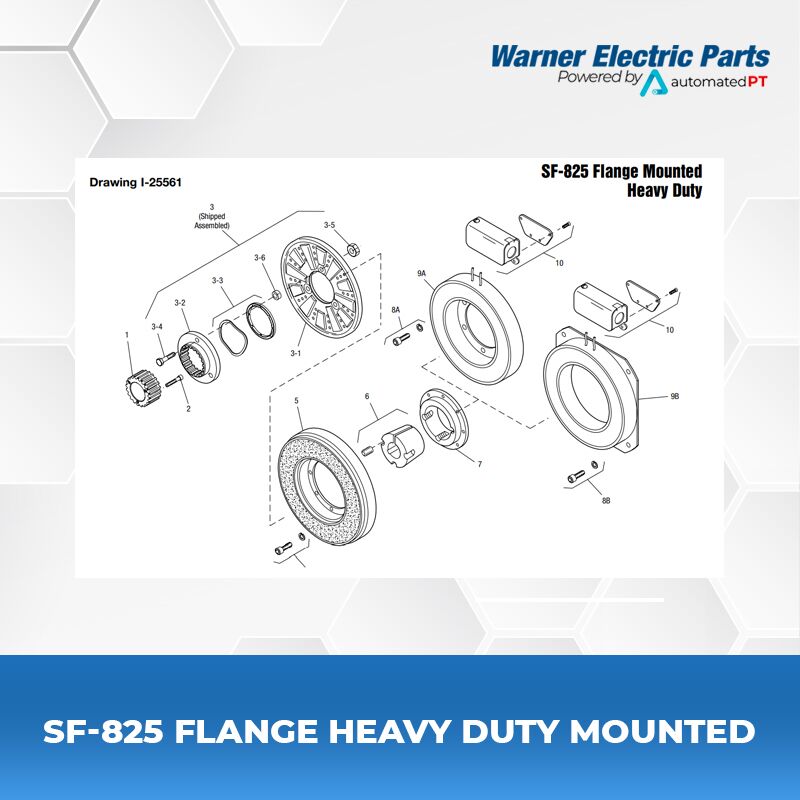

SF-825 Flange Mounted Parts List
Normal Duty Description Part Number Qty.
1 Armature 5301-111-018 1
2 Autogap Accessory 5201-101-008 3
3 Bushing* 1
1/2″ to 1-1/4″ Bore 180-0101 to 180-0113
4 Mounting Accessory 5201-101-007 1
5 Rotor 1
Standard Friction Material 5201-751-003
Optional LK Facing 5201-751-007
6 Rotor Hub 540-0013 1
7A Field – Inside Mounted 1
6 Volt 5201-451-006
24 Volt 5201-451-008
90 Volt 5201-451-010
7B Field – Outside Mounted 1
6 Volt 5201-451-014
24 Volt 5201-451-016
90 Volt 5201-451-018
8A Mounting Accessory – I.M. 5321-101-001 1
8B Mounting Accessory – O.M. 5321-101-002 1
9 Conduit Box 5200-101-012 1
