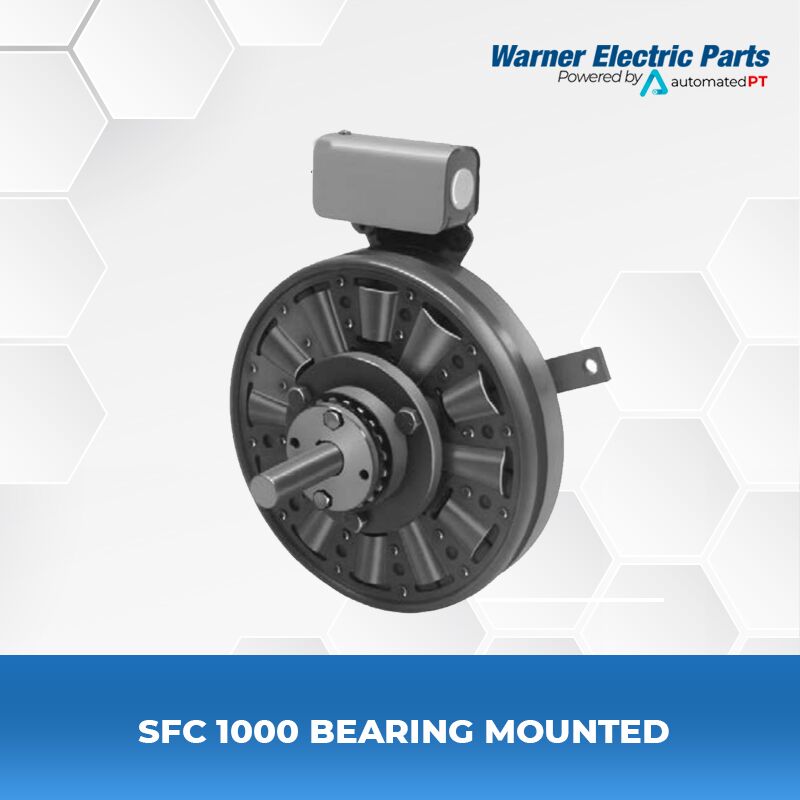

Warner Electric SFC 1000 Bearing Mounted
- SFC 1000 Series
- Model Size: sfc-1000
- Voltage: 6/24/90 VDC
- Static Torque: 240 lb. ft.
- Max RPM: 2,500 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC 1000 Flange Mounted |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .750 – 2.687 |
| Rotor Shaft | .500 – 2.000 |
| Static Torque | 240 lb.ft. |
| Max. RPM | 2,500 rpm |
| Standard Voltage | DC 6,24, 90 |
| Outside Diameter | 10.25 Inches |
| Overall Length | 5.75 Inches |

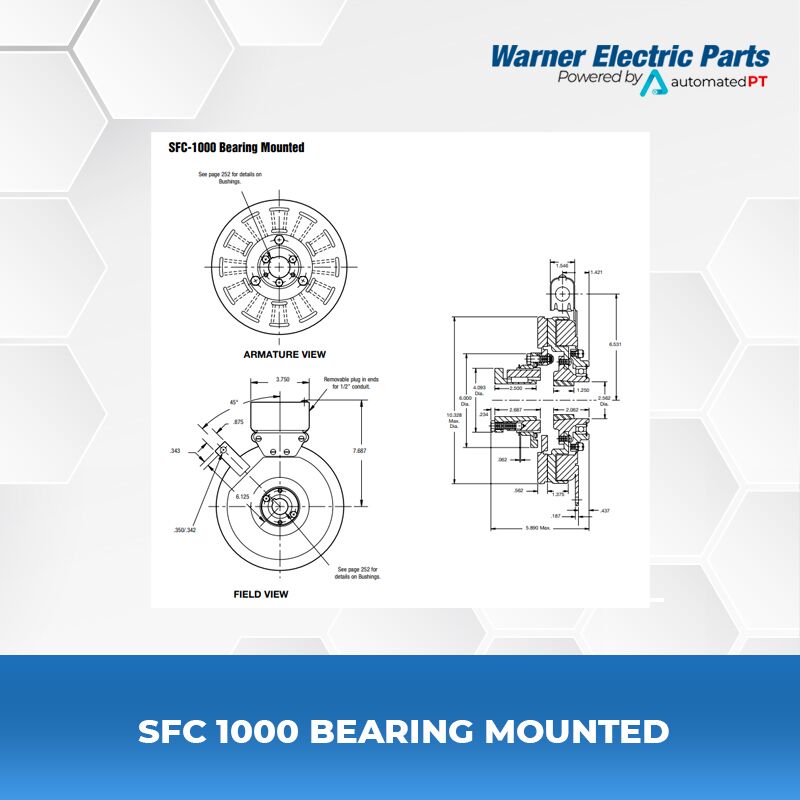

| Manufacturer Drawing | I-25598 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-1000-FM Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-1000-BM-Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Items 1 and 6.
2. Specify Voltage for Item 5.
3. See Controls Section.
Example:
SFC-1000 Clutch Coupling per I-25598 – 90 Volt, 1” Bore

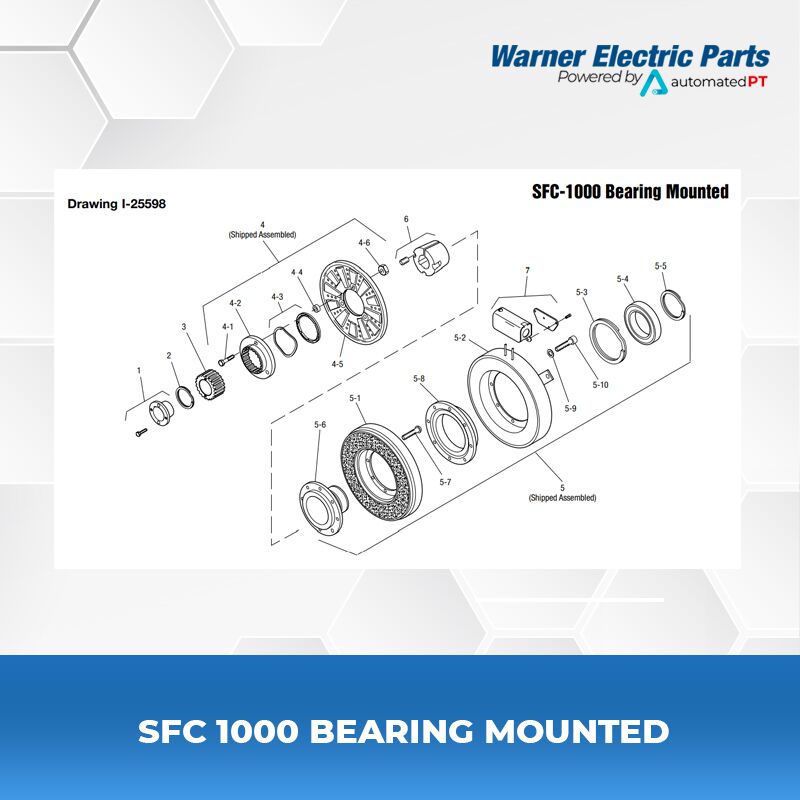

| SFC-1000 Bearing Mounted Parts List | |||
| Item | Description | Part # | Qty. |
| 1 | Bushing* | 1 | |
| 3/4″ to 2-11/16″ Bore | 180-0026 to 180-0057 | ||
| 2 | Retainer Ring | 748-0007 | 1 |
| 3 | Splined Hub | 540-0062 | 1 |
| 4 | Armature & Splined Adapter | 5202-111-001 | 1 |
| 4-1 | Capscrew | 797-0341 | 3 |
| 4-2 | Splined Adapter | 104-0009 | 1 |
| 4-3 | Autogap Accessory | 5322-101-004 | 1 |
| 4-4 | Spacer | 748-0333 | 3 |
| 4-5 | Armature | 5322-111-036 | 1 |
| 4-6 | Locknut | 661-0004 | 3 |
| 5 | Field & Rotor Assembly | 1 | |
| 6 Volt | 5202-452-012 | ||
| 24 Volt | 5202-452-014 | ||
| 90 Volt | 5202-452-015 | ||
| 5-1 | Rotor | 1 | |
| Standard Friction Material | 5202-751-003 | ||
| Optional LK Facing | 5202-751-007 | ||
| 5-2 | Field & Bearing Assembly | 1 | |
| 6 Volt | 5202-451-040 | ||
| 24 Volt | 5202-451-042 | ||
| 90 Volt | 5202-451-043 | ||
| 5-3 | Retainer Ring | 748-0116 | 1 |
| 5-4 | Ball Bearing | 166-1046 | 1 |
| 5-5 | Retainer Ring | 748-0582 | 1 |
| 5-6 | Rotor Hub | 540-1300 | 1 |
| 5-7 | Buttonhead Capscrew | 797-1261 | 6 |
| 5-8 | Ring Adapter | 748-1047 | 1 |
| 5-9 | Lockwasher | 950-0359 | 6 |
| 5-10 | Socket Head Capscrew | 797-0422 | 6 |
| 6 | Bushing* | 1 | |
| 1/2″ to 2″ Bore | 180-0155 to 180-0179 | ||
| 7 | Conduit Box | 5200-101-012 | 1 |
