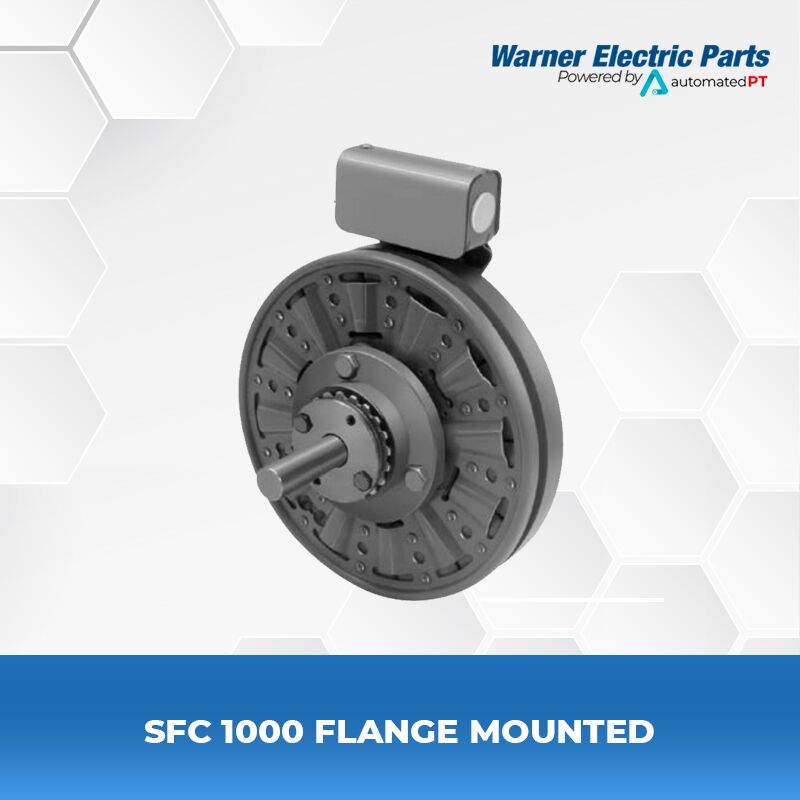

Warner Electric SFC 1000 Flange Mounted

  • SFC 1000 Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 240 lb. ft.
  • Max RPM: 3,600 rpm

The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.

SPECIFICATIONS

Model Name SFC 1000 Flange Mounted
Function Stationary Field Clutch Coupling
Armature Shaft .750 – 2.687
Rotor Shaft .500 – 2.000
Static Torque 240 lb.ft.
Max. RPM 3,600 rpm
Standard Voltage DC 6,24, 90
Outside Diameter 10.25 Inches
Overall Length 5.75 Inches

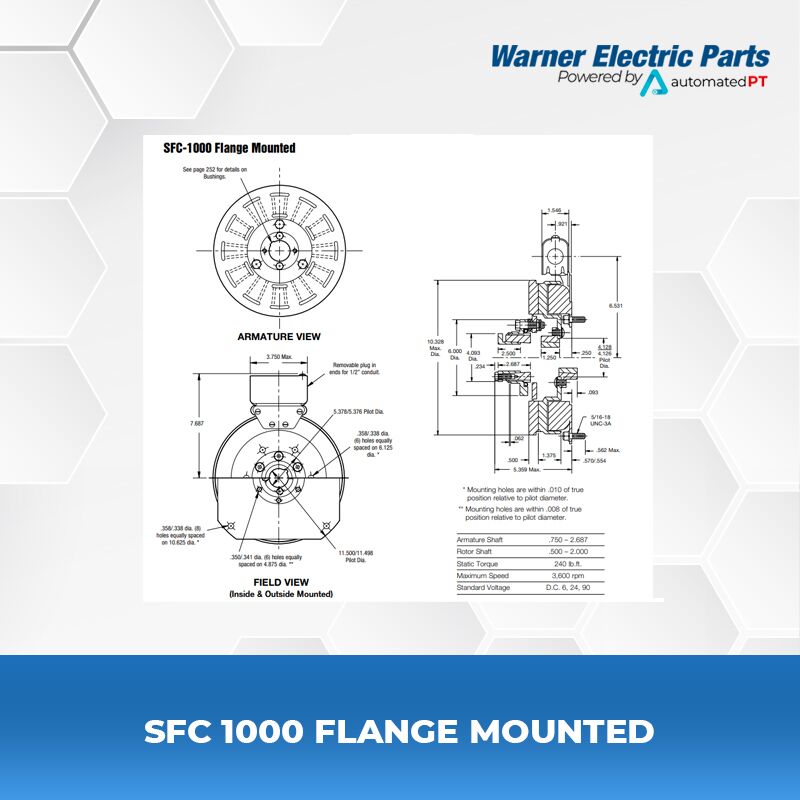

Manufacturer Drawing I-25584

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SFC-1000-FM Users Manual / Installation Instructions
Quick Information Warner Electric SFC-1000-FM-Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 1.
2. Specify Bore Size for Item 7.
3. Specify Voltage for Item 9A or 9B.
4. Specify Inside Mounted for Items 9A and 10A or Outside Mounted for Items 9B and 10B.
5. See Controls Section.

Example:

SFC-1000 Clutch Coupling per I-25584 – 90 Volt, Inside Mounted, 1- 1/4” Bore (Item 1), 1-1/2” Bore (Item 7)

Warner Electric SFC Series 1000 FM



Warner MB Series Controls

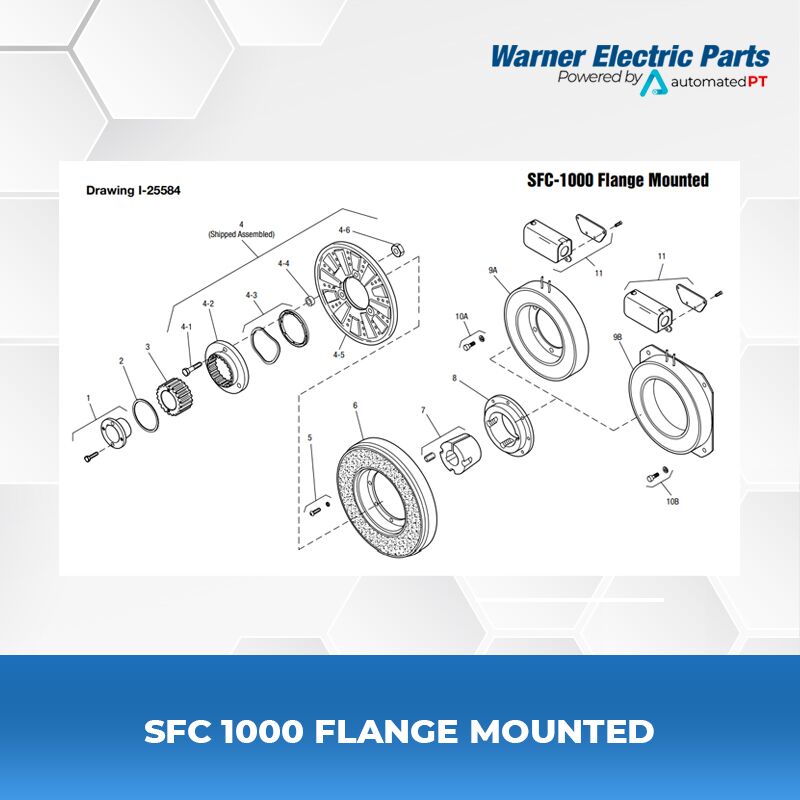

SFC-1000 Flange Mounted Parts List
Item Description Part # Qty.
1 Bushing* 1
3/4″ to 2-11/16″ Bore 180-0026 to 180-0057
2 Retainer Ring 748-0007 1
3 Splined Hub 540-0062 1
4 Armature & Splined Adapter 5202-111-001 1
4-1 Capscrew 797-0341 3
4-2 Splined Adapter 104-0009 1
4-3 Autogap Accessory 5322-101-004 1
4-4 Spacer 748-0333 3
4-5 Armature 5322-111-036 1
4-6 Locknut 661-0004 3
5 Mounting Accessory 5201-101-007 1
6 Rotor 1
Standard Friction Material 5202-751-003
Optional LK Facing 5202-751-007
7 Bushing* 1
1/2″ to 2″ Bore 180-0155 to 180-0179
8 Rotor Hub 540-0013
9A Field, Inside Mounted 1
6 Volt 5202-451-004
24 Volt 5202-451-006
90 Volt 5202-451-007
9B Field, Outside Mounted 1
6 Volt 5202-451-011
24 Volt 5202-451-013
90 Volt 5202-451-014
10A Mounting Accessory IM 5321-101-001 1
10B Mounting Accessory OM 5321-101-002 2
11 Conduit Box 5200-101-012 1
