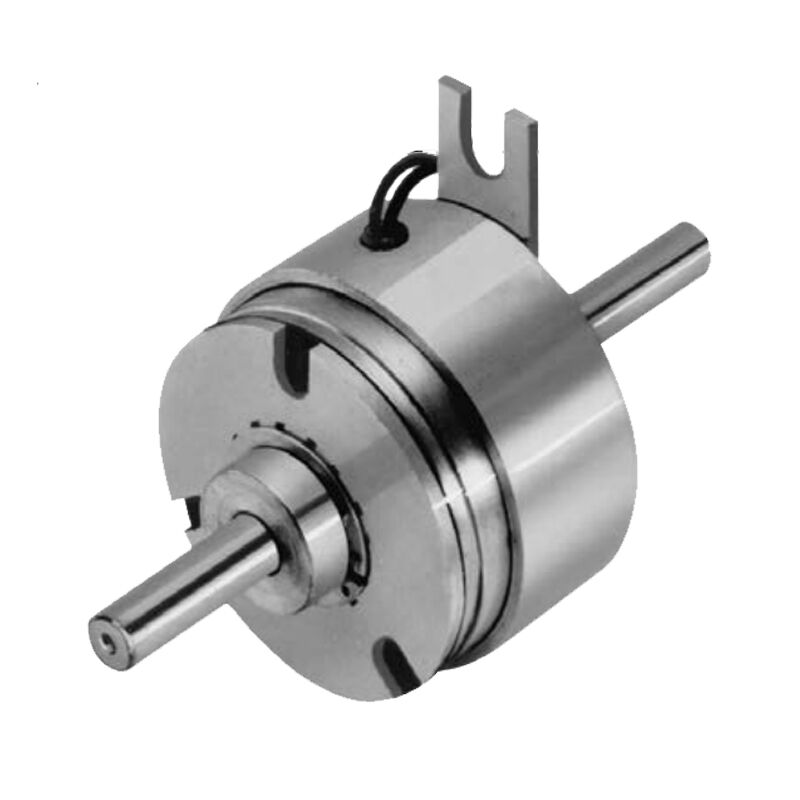

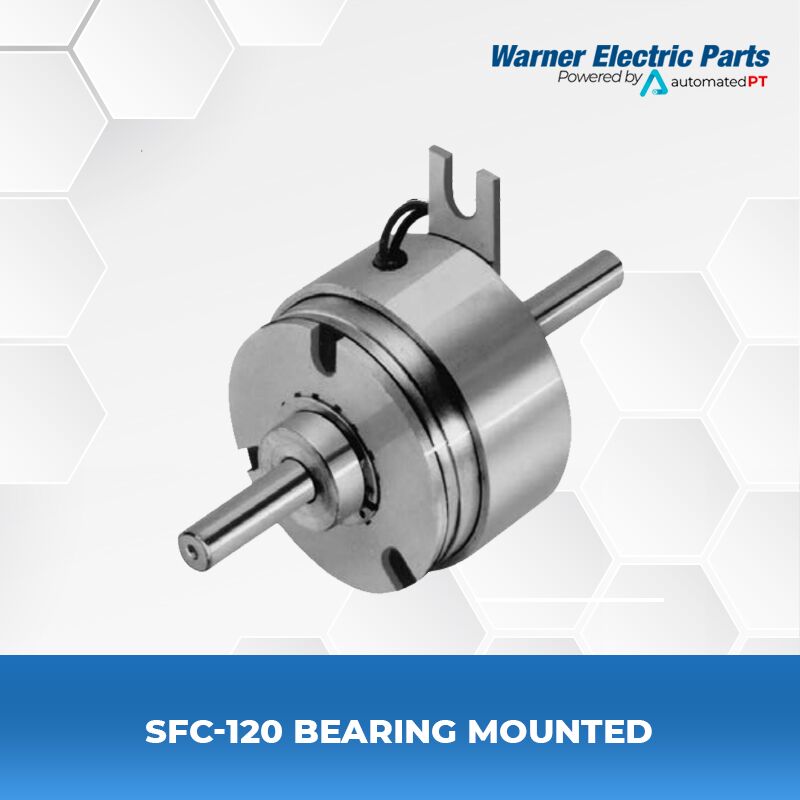

Warner Electric SFC-120 Bearing Mounted

  • sfc-120-bearing-mounted
  • SFC 1000 Series
  • Model Size: sfc-120
  • Voltage: 6/24/90 VDC
  • Static Torque: 5 lb. in.
  • Max RPM: 3,600 rpm
  • Rotor Bore Dia.: .188/.187- 313/.312
  • Armature Bore Dia.:

The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.

SPECIFICATIONS

Model NameSFC-120 Flange Mounted
FunctionStationary Field Clutch Coupling
Rotor Bore Dia..188/.187 .251/.250 .313/.312
Armature Bore Dia..188/.187 .251/.250 .313/.312
Static Torque5 lb.in.
Max. RPM3,600 rpm
Standard VoltageDC 6,24, 90
Outside Diameter1.25 Inches
Overall Length1 Inches

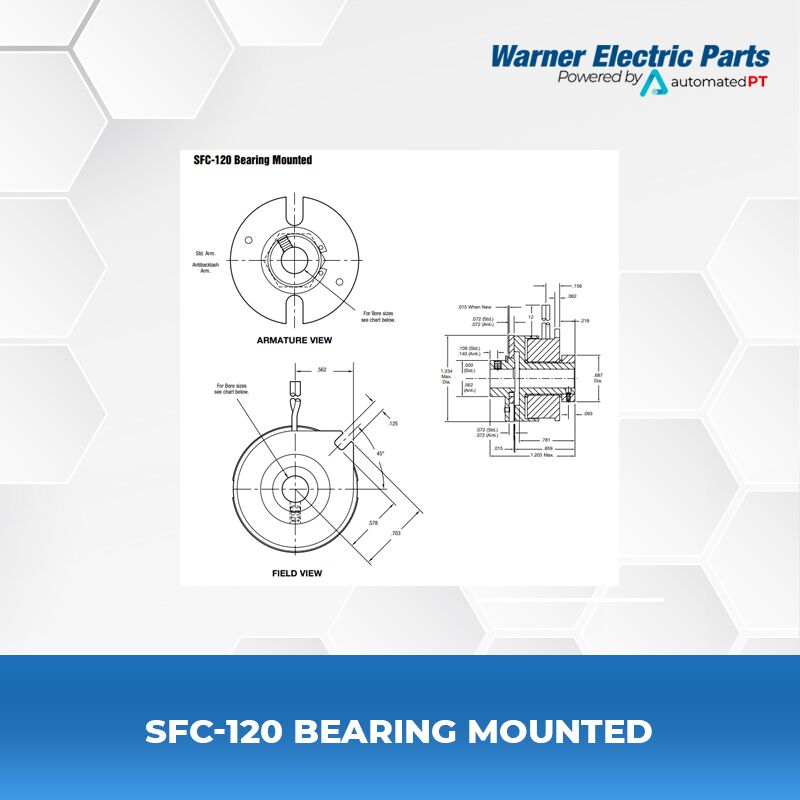

Manufacturer DrawingI-25504

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
CatalogWarner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation InstructionsWarner Electric SFC-120 BM Users Manual / Installation Instructions
Quick InformationWarner Electric SFC-120 BM Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 3.
4. See Controls Section.

Example:
SFC-120 Clutch per I-25504 – 90 Volt, Standard Armature, 1/4” Armature Hub Bore

Warner Electric SFC Series 120 BM

Warner MB Series Controls

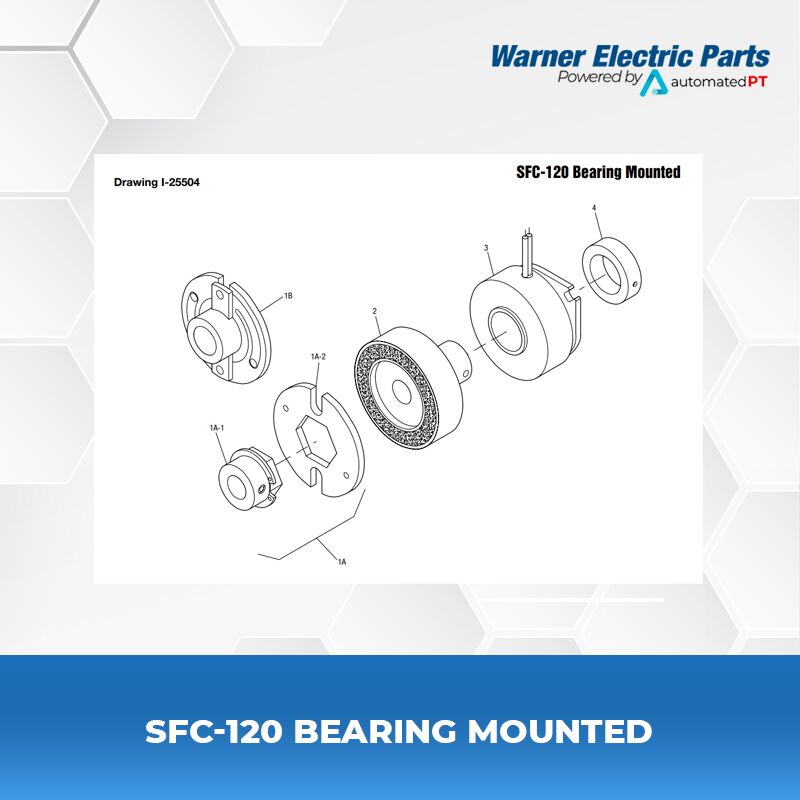

SFC-120 Bearing Mounted Parts List
ItemDescriptionPart NumberQty.
1AArmature and Hub
1A-1Armature Hub1
3/16″ Bore5622-541-009
1/4″ Bore5622-541-008
1A-2Armature110-01101
1BAntibacklash Armature1
3/16″ Bore5622-111-004
1/4″ Bore5622-111-002
5/16″ Bore5622-111-003
2Rotor1
3/16″ Bore5602-751-008
1/4″ Bore5602-751-006
5/16″ Bore5602-751-007
3Field1
6 Volt5602-451-021
24 Volt5602-451-023
90 Volt5602-451-025
4Set Collar5602-266-0011
