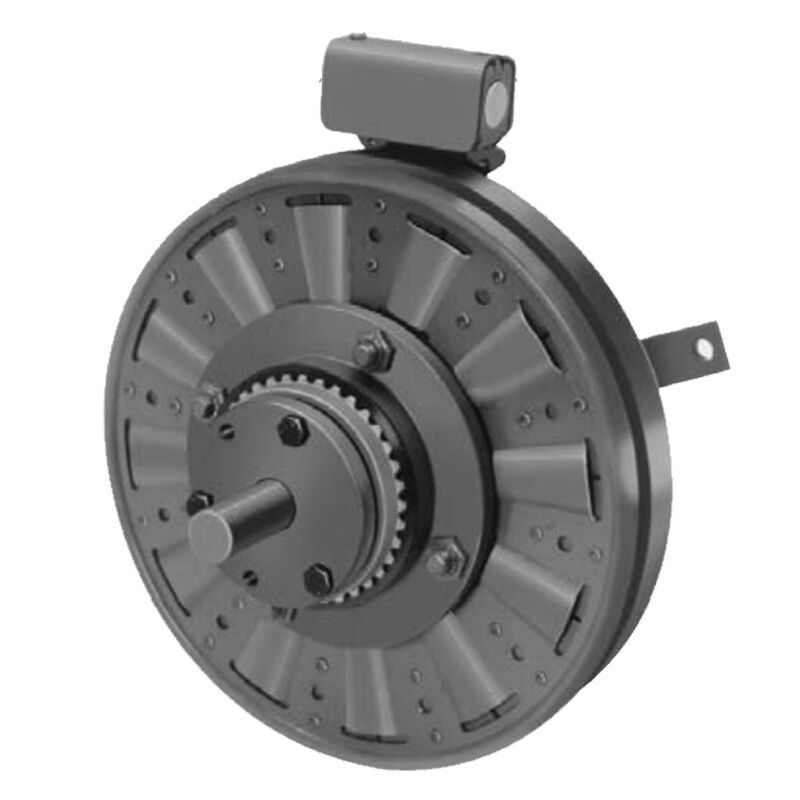

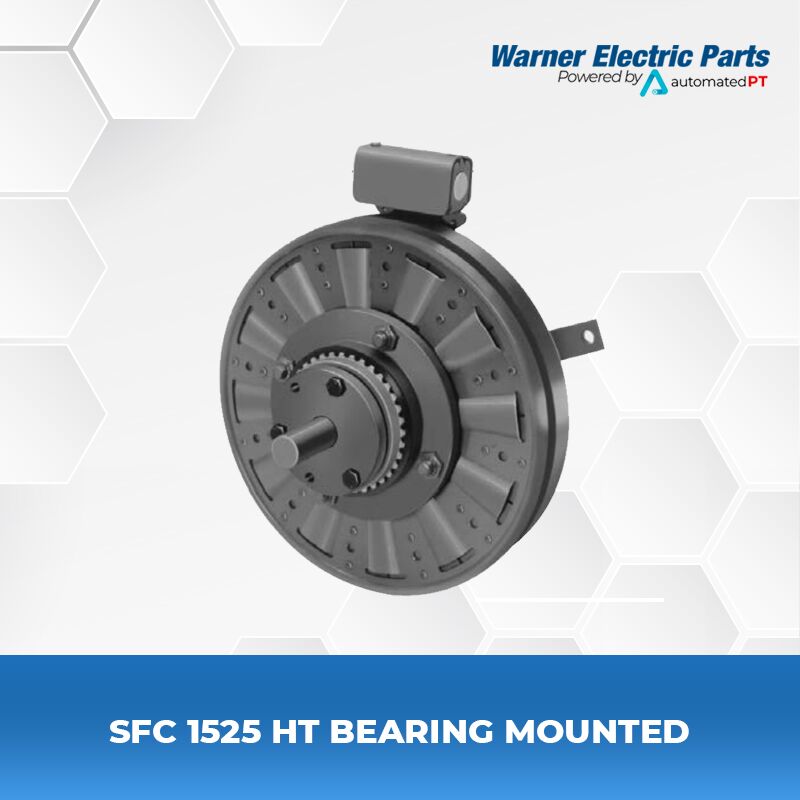

Warner Electric SFC 1525 HT Bearing Mounted
- SFC Series
- Voltage: 6/24/90 VDC
- Static Torque: 1,350 lb.ft.
- Max RPM: 1,800 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC 1525 HT Bearing Mounted |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .750 – 2.687 |
| Rotor Shaft | .937 – 3.000 |
| Static Torque | 1,350 lb.ft. |
| Max. RPM | 2,000 rpm |
| Standard Voltage | DC 6, 90 |
| Outside Diameter | 15.75 Inches |
| Overall Length | 6.5 Inches |

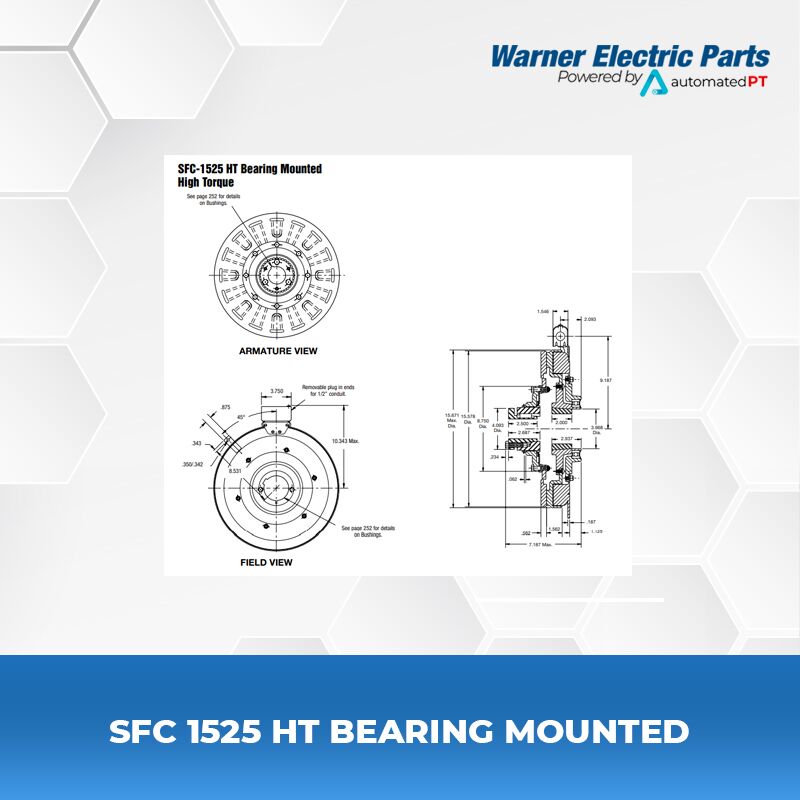

| Manufacturer Drawing | I-25641 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-1525-BM-HT Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-1525-BM-HT-Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 1.
2. Specify Bore Size for Item 6.
3. Specify Voltage for Item 5.
4. See Controls Section.
Example:
SFC-1525 Clutch Coupling per I-25641 – 90 Volt, 1” Bore
| SFC-1000 Flange Mounted Parts List |
| Item | Description | Part Number | Qty. |
| 1 | Bushing* | 1 | |
| 3/4″ to 2-11/16″ Bore | 180-0026 to180-0057 | ||
| 2 | Retainer Ring | 748-0005 | 1 |
| 3 | Splined Hub | 540-0064 | 1 |
| 4 | Armature & Splined Adapter | 5204-111-004 | 1 |
| 4-1 | Capscrew | 797-0342 | 8 |
| 4-2 | Splined Adapter | 104-0011 | 1 |
| 4-3 | Autogap Accessory | 5323-101-002 | 1 |
| 4-4 | Spacer | 748-0333 | 1 |
| 4-5 | Armature | 5324-111-034 | 1 |
| 4-6 | Locknut | 661-0004 | 8 |
| 4-7 | Retainer Plate | 686-0003 | 1 |
| 5 | Field & Rotor Assembly | 1 | |
| 90 Volt | 5204-452-015 | ||
| 5-1 | Rotor | 5204-751-001 | 1 |
| 5-2 | Field | 1 | |
| 90 Volt | 5204-451-090 | ||
| 5-3 | Retainer | 748-0114 | 1 |
| 5-4 | Ball Bearing | 166-0163 | 1 |
| 5-5 | Retainer Ring | 748-0583 | 1 |
| 5-6 | Rotor Hub | 540-1306 | 1 |
| 5-7 | Ring Adapter | 748-1048 | 1 |
| 5-8 | Buttonhead Capscrew | 797-1261 | 8 |
| 5-9 | Lockwasher | 950-0359 | 6 |
| 5-10 | Sockethead Capscrew | 797-0424 | 6 |
| 6 | Bushing* | 1 | |
| 5/16″ to 3″ Bore | 180-0223 to 180-0256 | ||
| 7 | Conduit Box | 5200-101-012 | 1 |
