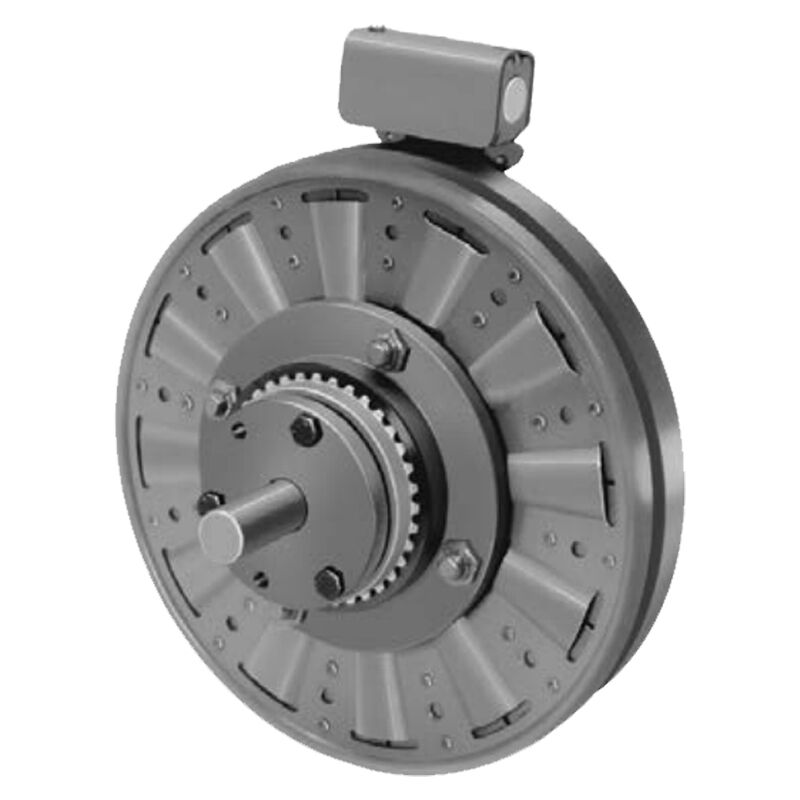

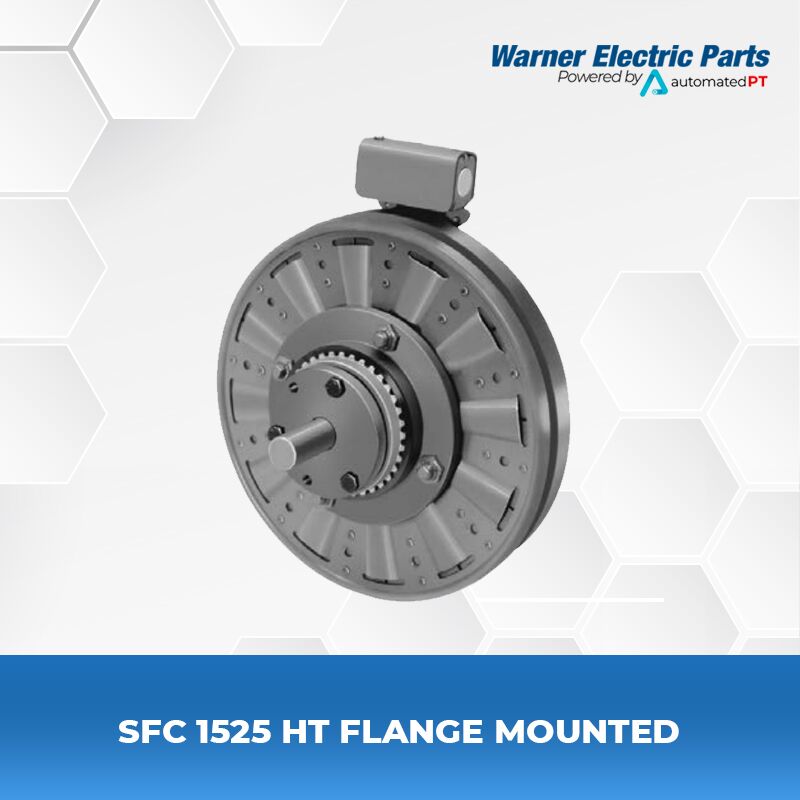

Warner Electric SFC 1525 HT Flange Mounted
- SFC Series
- Model Size: sfc-1525
- Voltage: 6/24/90 VDC
- Static Torque: 1,350 lb.ft.
- Max RPM: 2,000 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC 1525 HT Flange Mounted |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .750 – 2.687 |
| Rotor Shaft | .937 – 3.000 |
| Static Torque | 1,350 lb.ft. |
| Max. RPM | 2,000 rpm |
| Standard Voltage | DC 6, 90 |
| Outside Diameter | 15.75 Inches |
| Overall Length | 6.5 Inches |

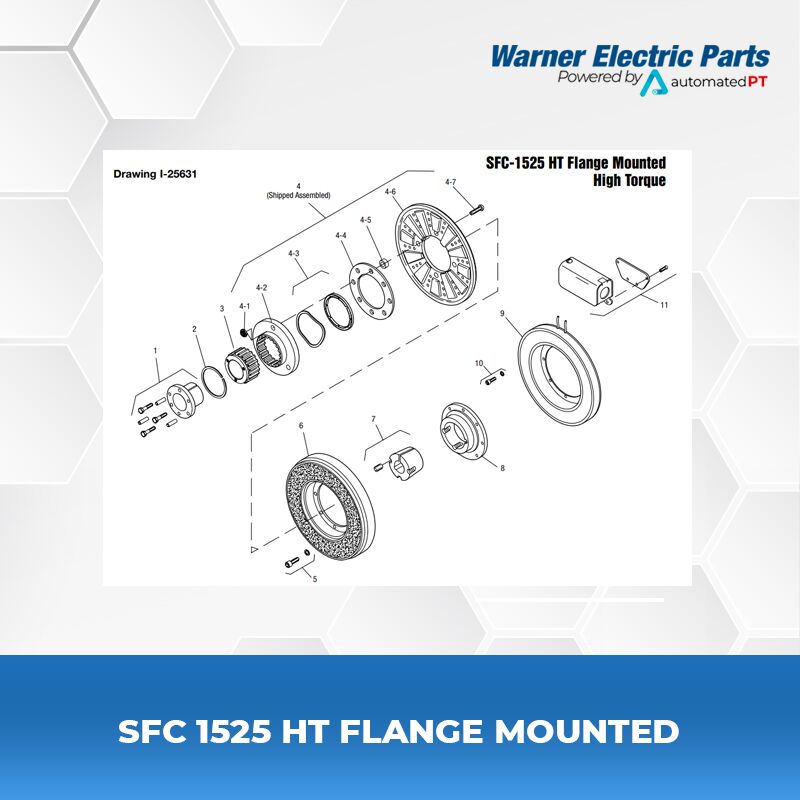

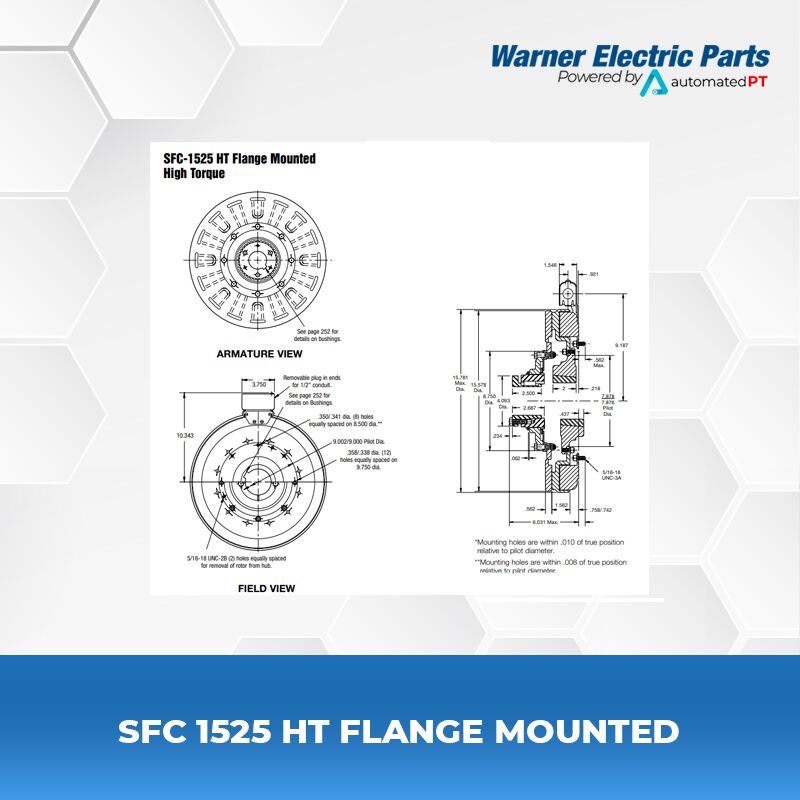

| Manufacturer Drawing | I-25631 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-1525-FM-HT Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-1525-FM-HT-Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 1.
2. Specify Bore Size for Item 7.
3. See Controls Section.
Example:
SFC-1525 Clutch Coupling, Hi-Torque, per I-25631 – 90 Volt, 2” Bore (Item 1), 2-1/2” Bore (Item 7)
| SFC-1000 Flange Mounted Parts List |
| Item | Description | Part Number | Qty. |
| 1 | Bushing* | 1 | |
| 3/4″ to 2-11/16″ Bore | 180-0026 to180-0057 | ||
| 2 | Retainer Ring | 748-0005 | 1 |
| 3 | Splined Hub | 540-0064 | 1 |
| 4 | Armature & Splined Adapter | 5204-111-004 | 1 |
| 4-1 | Locknut | 661-0004 | 8 |
| 4-2 | Splined Adapter | 104-0011 | 1 |
| 4-3 | Autogap Accessory | 5323-101-002 | 1 |
| 4-4 | Retainer Plate | 686-0003 | 1 |
| 4-5 | Spacer | 748-0333 | 8 |
| 4-6 | Armature | 5324-111-034 | 1 |
| 4-7 | Screw | 797-0342 | 8 |
| 5 | Mounting Accessory | 5321-101-002 | 2 |
| 6 | Rotor | 5204-751-001 | 1 |
| 7 | Bushing* | 1 | |
| 15/16″ to 3″ Bore | 180-0223 to 180-0256 | ||
| 8 | Rotor Hub | 540-0004 | 1 |
| 9 | Field Inside Mounted | 1 | |
| 90 Volt | 5204-451-016 | ||
| 10 | Mounting Accessory | 5321-101-001 | 2 |
| 11 | Conduit Box | 5200-101-012 | 1 |
