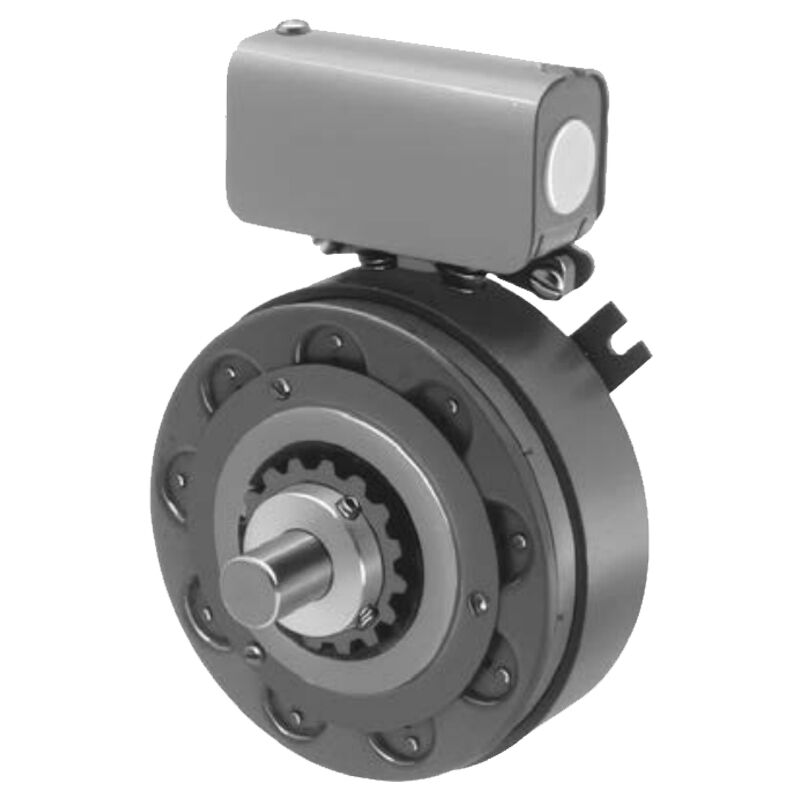

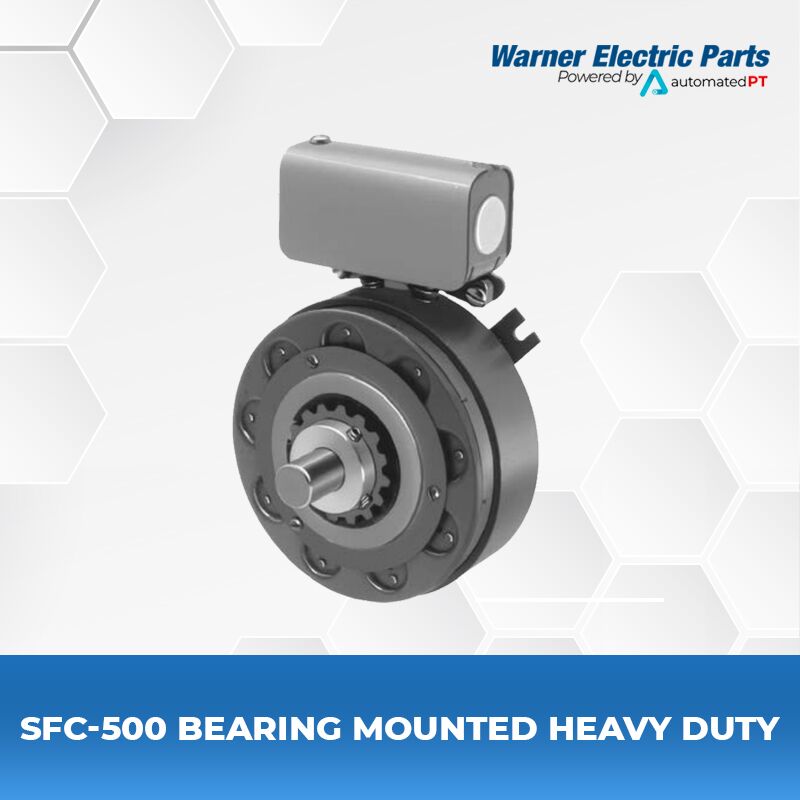

Warner Electric SFC-500 Bearing Mounted Heavy Duty
- SFC Series
- Model Size: SFC-500
- Voltage: 6/24/90 VDC
- Static Torque: 50 lb. ft.
- Max RPM: 4,000 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC-500 Bearing Mounted Heavy Duty |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .500 – 1.250 |
| Rotor Shaft | .750 – 1.250 |
| Static Torque | 50 lb.ft. |
| Max. RPM | 4,000 rpm |
| Standard Voltage | DC 6,24, 90 |
| Outside Diameter | 5.25 Inches |
| Overall Length | 3.5 Inches |

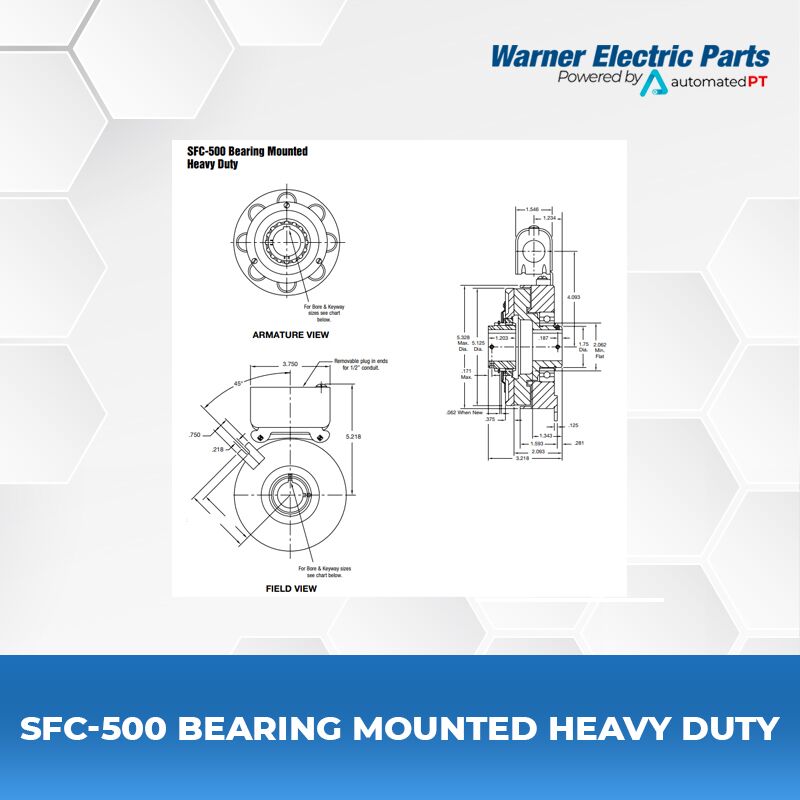

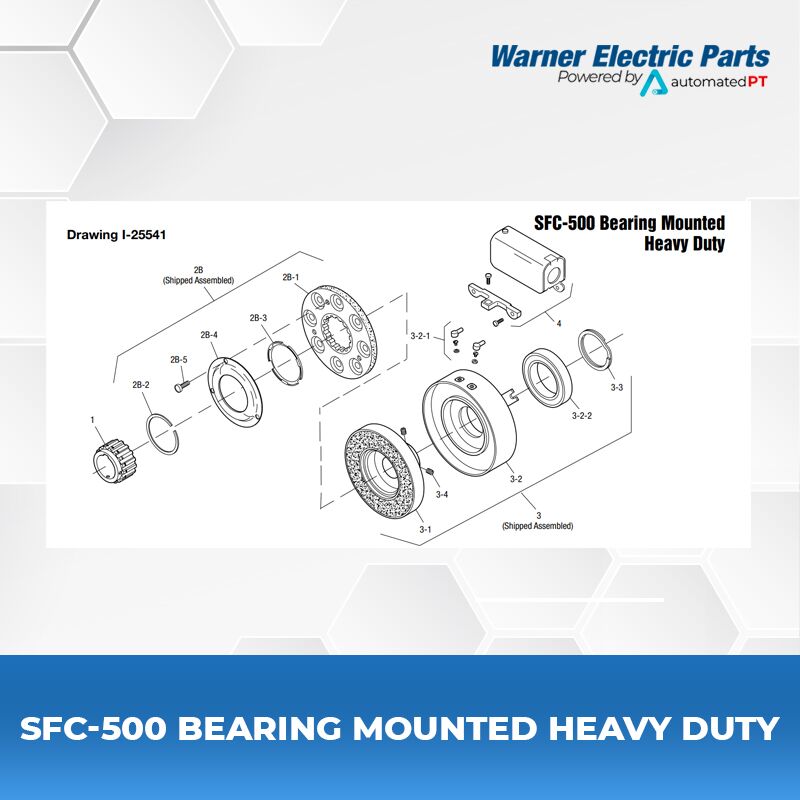

| Manufacturer Drawing | I-25541 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-500 BM-HD Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-500 BM-HD Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 2 and Item 5.
2. Specify Voltage for Item 5.
3. See Controls Section.
Example:
SFC-500 Clutch Coupling per I-25541- 90 Volt, 3/4” Armature Hub Bore, 7/8” Rotor Bore
| SFC-500 Bearing Mounted Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Armature Hub Assembly | 1 | |
| 3/4″ Bore | 5200-541-002 | ||
| 7/8″ Bore | 5200-541-003 | ||
| 15/16″ Bore | 5200-541-004 | ||
| 1″ Bore | 5200-541-005 | ||
| 1-1/8″ Bore | 5200-541-006 | ||
| 1-1/4″ Bore | 5200-541-007 | ||
| 2B | Armature Assembly w/Autogap | 5230-111-002 | 1 |
| 2B-1 | Armature | 5230-111-001 | 1 |
| 2B-2 | Retainer Ring | 748-0355 | 1 |
| 2B-3 | Autogap Spring | 808-0412 | 1 |
| 2B-4 | Retainer Plate | 748-0364 | 1 |
| 2B-5 | Screw | 797-0028 | 3 |
| 3 | Field and Rotor Assembly | 1 | |
| 6 Volt – 3/4″ Bore | 5200-452-002 | ||
| 24 Volt – 3/4″ Bore | 5200-452-004 | ||
| 90 Volt – 3/4″ Bore | 5200-452-005 | ||
| 6 Volt – 7/8″ Bore | 5200-452-008 | ||
| 24 Volt – 7/8″ Bore | 5200-452-010 | ||
| 90 Volt – 7/8″ Bore | 5200-452-011 | ||
| 24 Volt – 15/16″ Bore | 5200-452-016 | ||
| 90 Volt – 15/16″ Bore | 5200-452-017 | ||
| 6 Volt – 1″ Bore | 5200-452-020 | ||
| 24 Volt – 1″ Bore | 5200-452-022 | ||
| 90 Volt – 1″ Bore | 5200-452-023 | ||
| 6 Volt – 1-1/8″ Bore | 5200-452-026 | ||
| 24 Volt – 1-1/8″ Bore | 5200-452-028 | ||
| 90 Volt – 1-1/8″ Bore | 5200-452-029 | ||
| 6 Volt – 1-1/4″ Bore | 5200-452-032 | ||
| 24 Volt – 1-1/4″ Bore | 5200-452-034 | ||
| 90 Volt – 1-1/4″ Bore | 5200-452-035 | ||
| 3-1 | Rotor | 1 | |
| 3/4″ Bore | 5200-751-002 | ||
| 7/8″ Bore | 5200-751-003 | ||
| 15/16″ Bore | 5200-751-004 | ||
| 1″ Bore | 5200-751-005 | ||
| 1-1/8″ Bore | 5200-751-006 | ||
| 1-1/4″ Bore | 5200-751-007 | ||
| 3-2 | Field & Bearing Assembly | 1 | |
| 6 Volt | 5200-451-024 | ||
| 24 Volt | 5200-451-026 | ||
| 90 Volt | 5200-451-027 | ||
| 03/02/01 | Terminal Accessory | 5311-101-001 | 1 |
| 3-3 | Ball Bearing | 166-0110 | 1 |
| 3-4 | Retainer Ring | 748-0002 | 1 |
| 4 | Conduit Box | 5200-101-010 | 1 |
