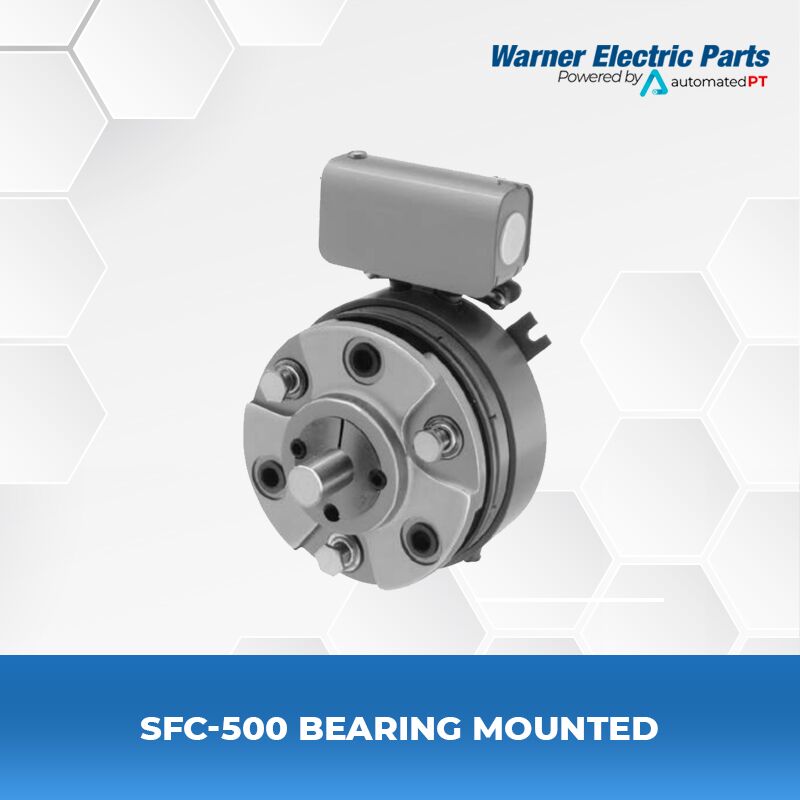

Warner Electric SFC-500 Bearing Mounted

  • SFC Series
  • Model Size: Sfc-500
  • Voltage: 6/24/90 VDC
  • Static Torque: 50 lb. ft.
  • Max RPM: 3,600 rpm
  • Rotor Bore Dia.: .188/.187- 313/.312
  • Armature Bore Dia.: .188/.187- 313/.312

The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.

SPECIFICATIONS

Model Name SFC-500 Bearing Mounted
Function Stationary Field Clutch Coupling
Armature Shaft .500 – 1.250
Rotor Shaft .750 – 1.250
Static Torque 50 lb.ft.
Max. RPM 4,000 rpm
Standard Voltage DC 6,24, 90
Outside Diameter 5.25 Inches
Overall Length 3.5 Inches

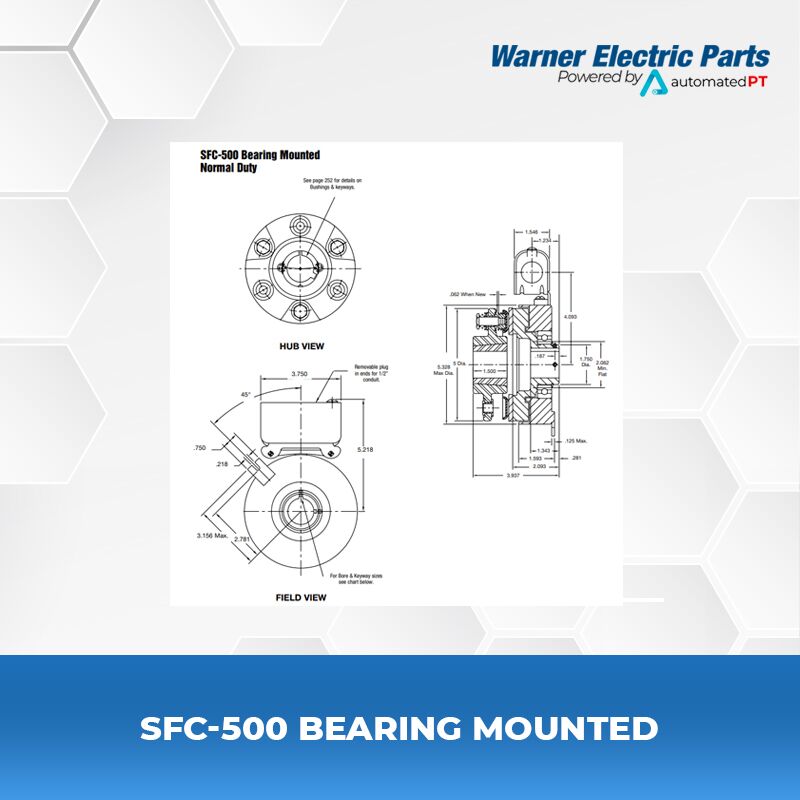

Manufacturer Drawing I-25540

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SFC-500 BM Users Manual / Installation Instructions
Quick Information Warner Electric SFC-500 BM Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 2 and Item 5.
2. Specify Voltage for Item 5.
3. See Controls Section.

Example:

SFC-500 Clutch Coupling per I-25540 – 90 Volt, 3/4” Bores

Warner Electric SFC Series 500 BM





Warner MB Series Controls

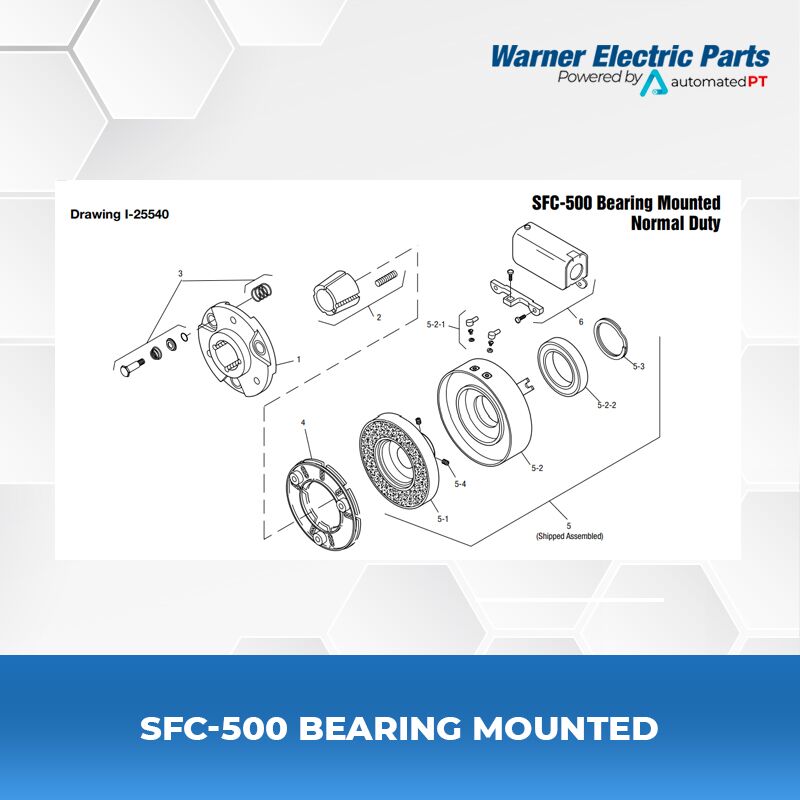

SFC-500 Bearing Mounted Parts List
Item Description Part Number Qty.
1 Armature Hub 5300-541-004 1
2 Bushing* 1
1/2″ to 1 1/4″ Bore 180-0116 to 180-0128
3 Autogap Accessory 5200-101-009 3
4 Armature 5300-111-002 1
5 Field and Rotor Assembly 1
6 Volt – 3/4″ Bore 5200-452-002
24 Volt – 3/4″ Bore 5200-452-004
90 Volt – 3/4″ Bore 5200-452-005
6 Volt – 7/8″ Bore 5200-452-008
24 Volt – 7/8″ Bore 5200-452-010
90 Volt – 7/8″ Bore 5200-452-011
24 Volt – 15/16″ Bore 5200-452-016
90 Volt – 15/16″ Bore 5200-452-017
6 Volt – 1″ Bore 5200-452-020
24 Volt – 1″ Bore 5200-452-022
90 Volt – 1″ Bore 5200-452-023
6 Volt – 1-1/8″ Bore 5200-452-026
24 Volt – 1-1/8″ Bore 5200-452-028
90 Volt – 1-1/8″ Bore 5200-452-029
6 Volt – 1-1/4″ Bore 5200-452-032
24 Volt – 1-1/4″ Bore 5200-452-034
90 Volt – 1-1/4″ Bore 5200-452-035
5-1 Rotor 1
3/4″ Bore 5200-751-002
7/8″ Bore 5200-751-003
15/16″ Bore 5200-751-004
1″ Bore 5200-751-005
1-1/8″ Bore 5200-751-006
1-1/4″ Bore 5200-751-007
5-2 Field & Bearing Assembly 1
6 Volt 5200-451-024
24 Volt 5200-451-026
90 Volt 5200-451-027
05/02/01 Terminal Accessory 5311-101-001 1
5-3 Ball Bearing 166-0110 1
5-4 Retainer Ring 748-0002 1
6 Conduit Box 5200-101-010 1
