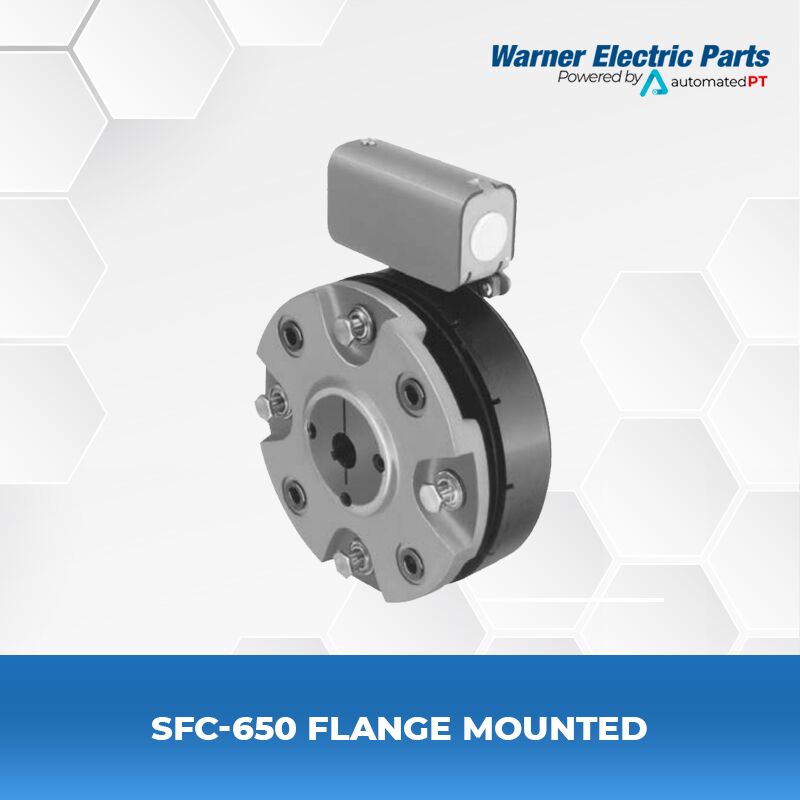

Warner Electric SFC-650 Flange Mounted
- SFC Series
- Model Size: Sfc-500
- Voltage: 6/24/90 VDC
- Static Torque: 95 lb.ft.
- Max RPM: 3,600 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC-650 Flange Mounted |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .500 – 1.625 |
| Rotor Shaft | .500 – 1.625 |
| Static Torque | 95 lb.ft. |
| Max. RPM | 3,600 rpm |
| Standard Voltage | DC 6,24, 90 |
| Outside Diameter | 6.75 Inches |
| Overall Length | 3.25 Inches |

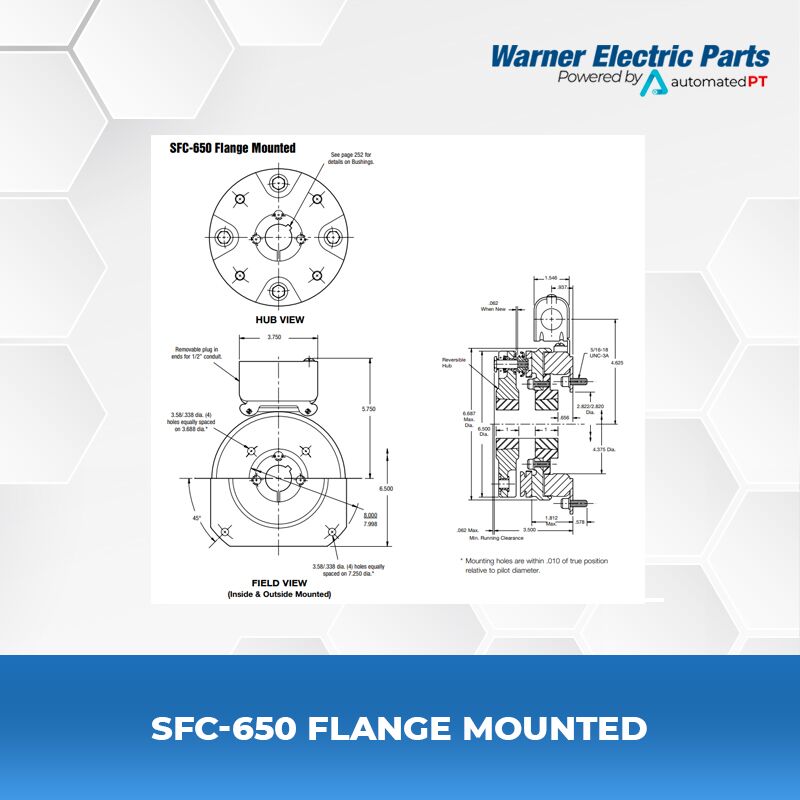

| Manufacturer Drawing | I-25728 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-650 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-650 Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 2 (both shafts).
2. Specify Voltage for Item 7.
3. Specify Inside or Outside Mounted for Item 7.
4. See Controls Section.
Example:
SFC-650 Clutch Coupling, Flange Mounted per I-25728 – 90 Volt, 1” Bore

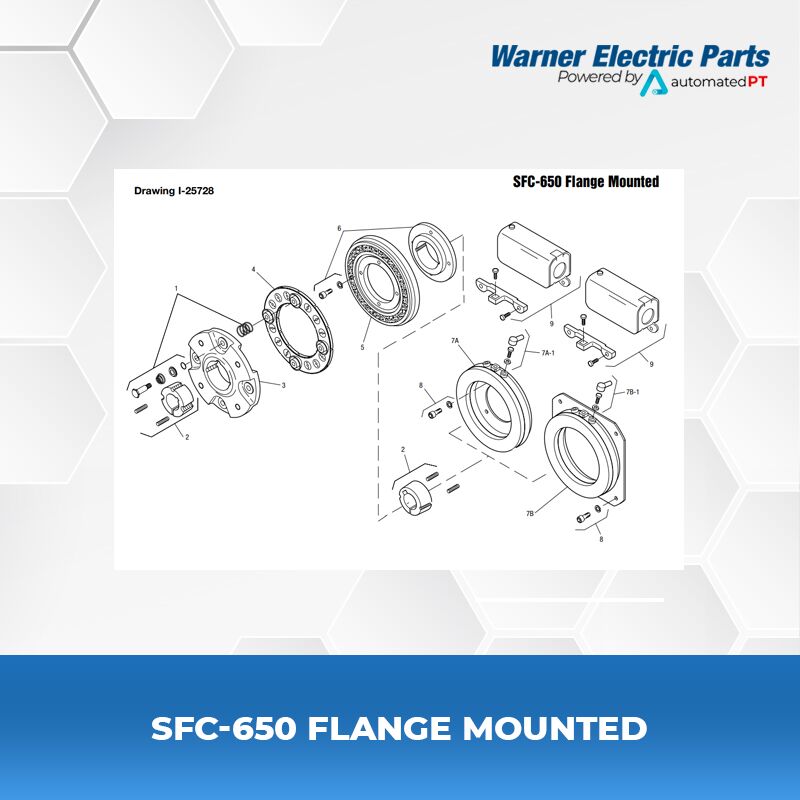

| SFC-650 Flange Mounted Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Autogap Accessory | 5181-101-010 | 4 |
| 2 | Bushing* | 2 | |
| 1/2″ to 1-5/8″ Bore | 180-0326 to 180-0344 | 1 | |
| 3 | Armature Hub | 5207-541-002 | 1 |
| 4 | Armature | 5281-111-002 | 1 |
| 5 | Rotor | 5281-751-001 | 1 |
| 6 | Rotor Hub & | ||
| Mounting Accessory | 5207-101-005 | 1 | |
| 7A | Field – Inside Mounted | 1 | |
| 6 Volt | 5207-451-009 | ||
| 24 Volt | 5207-451-012 | ||
| 90 Volt | 5207-451-011 | ||
| 7A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 7B | Field – Outside Mounted | 1 | |
| 6 Volt | 5207-451-003 | ||
| 24 Volt | 5207-451-006 | ||
| 90 Volt | 5207-451-005 | ||
| 7B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 8 | Mounting Accessory | 5321-101-002 | 1 |
| 9 | Conduit Box | 5200-101-010 | 1 |
