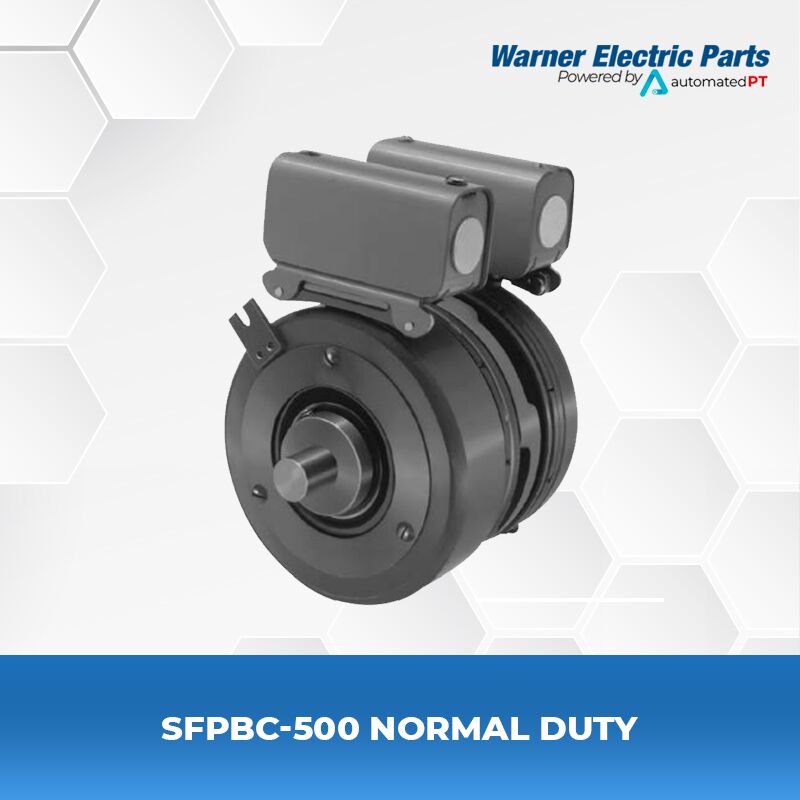

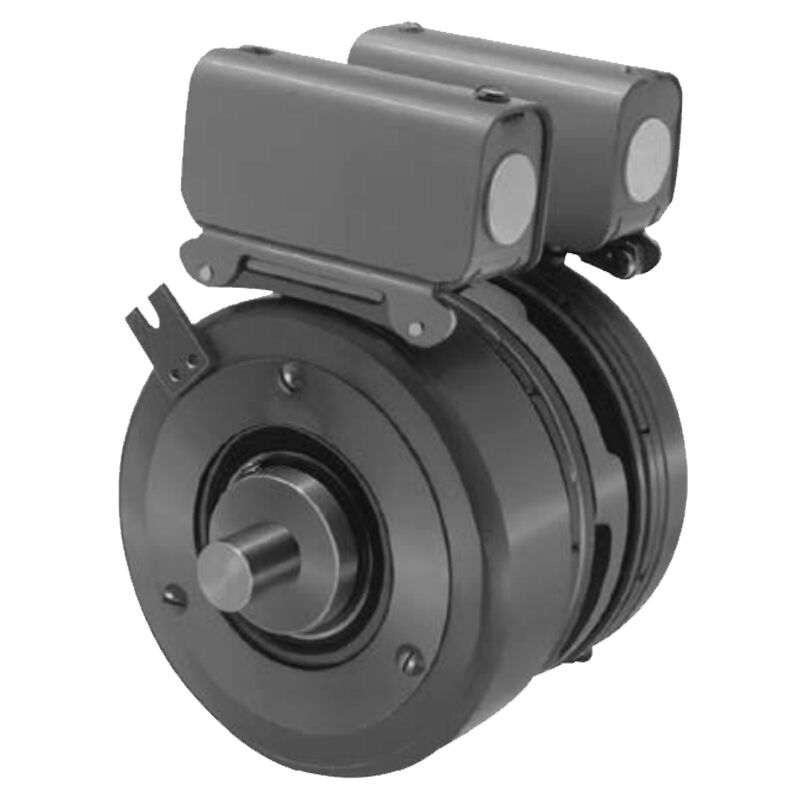

Warner Electric SFPBC-500 Normal Duty
- SFPBC Series
- Voltage: 6/24/90 VDC
- Static Torque: 40- 50 lb. ft.
- Max RPM: 4,000 rpm
- Shaft Size: .750 – 1.250
The SFPBC clutch/brake coupling series combines a SFC clutch coupling with a PB brake.
SPECIFICATIONS
| Model Name | SFPBC-500 Normal Duty |
| Function | Stationary Field Clutch/Brake Couplings |
| Shaft Size | .750 – 1.250 |
| Static Torque | 50/40 lb. ft. |
| Max. RPM | 4,000 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 5.25 Inches |
| Overall Length | 5.75 Inches |

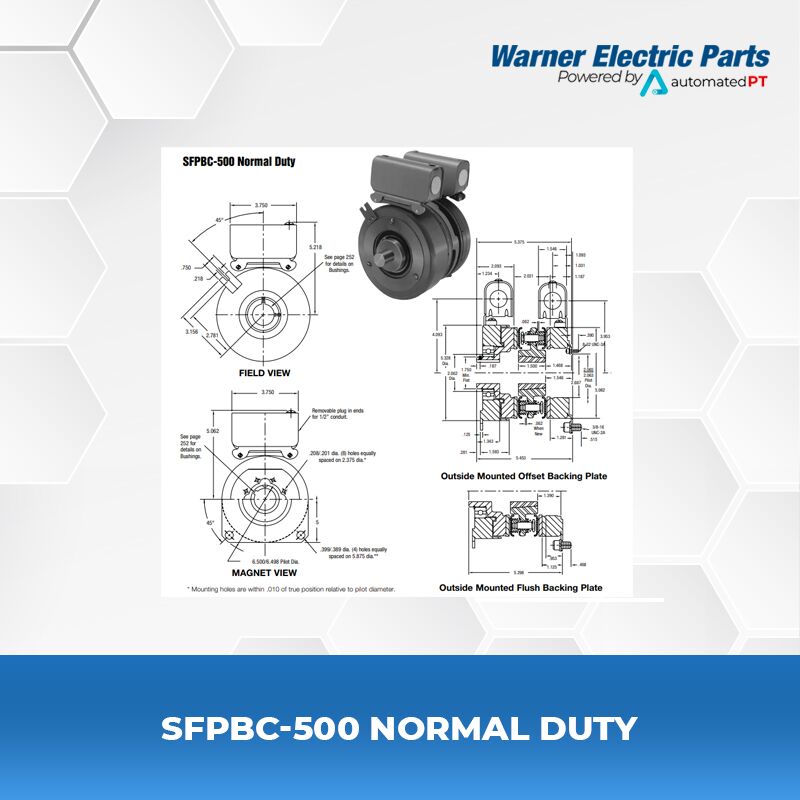

| Manufacturer Drawing | I-25546 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFPBC-500 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFPBC-500 Normal Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 1 and Item 4.
2. Specify Voltage for Item 1 and Item 7A, 7B or 7C.
3. Specify Inside Mounted for Item 7A and Outside Mounted (Offset) for Item 7B or Outside Mounted (Flush) for Item 7C.
4. See Controls Section.
Example:
SFPBC-500 Clutch Brake Coupling per I-25546 – 90 Volt, Inside Mounted, 1” Bore

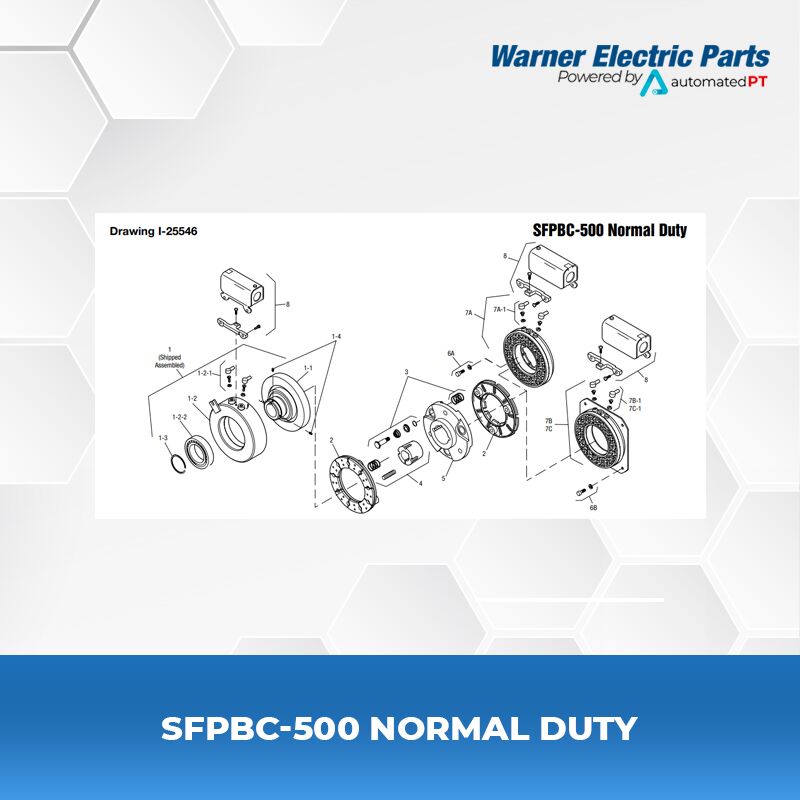

| SFPBC-500 Normal Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Field and Rotor Assembly | 1 | |
| 6 Volt – 3/4″ Bore | 5200-452-002 | ||
| 24 Volt – 3/4″ Bore | 5200-452-004 | ||
| 90 Volt – 3/4″ Bore | 5200-452-005 | ||
| 6 Volt – 7/8″ Bore | 5200-452-008 | ||
| 24 Volt – 7/8″ Bore | 5200-452-010 | ||
| 90 Volt – 7/8″ Bore | 5200-452-011 | ||
| 90 Volt – 15/16″ Bore | 5200-452-017 | ||
| 6 Volt – 1″ Bore | 5200-452-020 | ||
| 24 Volt – 1″ Bore | 5200-452-022 | ||
| 90 Volt – 1″ Bore | 5200-452-023 | ||
| 6 Volt – 1-1/8″ Bore | 5200-452-026 | ||
| 24 Volt – 1-1/8″ Bore | 5200-452-028 | ||
| 90 Volt – 1-1/8″ Bore | 5200-452-029 | ||
| 6 Volt – 1-1/4″ Bore | 5200-452-032 | ||
| 90 Volt – 1-1/4″ Bore | 5200-452-035 | ||
| 1-1 | Rotor | 1 | |
| 3/4″ Bore | 5200-751-002 | ||
| 7/8″ Bore | 5200-751-003 | ||
| 15/16″ Bore | 5200-751-004 | ||
| 1″ Bore | 5200-751-005 | ||
| 1-1/8″ Bore | 5200-751-006 | ||
| 1-1/4″ Bore | 5200-751-007 | ||
| 1-2 | Field | 1 | |
| 6 Volt | 5200-451-002 | ||
| 24 Volt | 5200-451-004 | ||
| 90 Volt | 5200-451-005 | ||
| 1-3 | Terminal Accessory | 5311-101-001 | 1 |
| 1-4 | Ball Bearing | 166-0110 | 1 |
| 1-5 | Retainer Ring | 748-0002 | 1 |
| 2 | Armature | 5300-111-002 | 2 |
| 3 | Autogap Accessory | 5200-101-009 | 6 |
| 4 | Bushing*- 1/2″ to 1-1/4″ Bore | 180-0116 to 180-0128 | 1 |
| 5 | Armature Hub | 5300-541-004 | 1 |
| 6A | Mounting Accessory – I.M. | 5102-101-001 | 2 |
| 6B | Mounting Accessory – O.M. | 5300-101-008 | 1 |
| 7A | Magnet – I.M. | 1 | |
| 6 Volt | 5300-631-002 | ||
| 24 Volt | 5300-631-003 | ||
| 90 Volt | 5300-631-005 | ||
| 7A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 7B | Magnet – O.M. – Offset | 1 | |
| 90 Volt | 5300-631-014 | ||
| 7B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 7C | Magnet – O.M. – Flush | 1 | |
| 6 Volt | 5300-631-009 | ||
| 24 Volt | 5300-631-010 | ||
| 90 Volt | 5300-631-011 | ||
| 7C-1 | Terminal Accessory | 5311-101-001 | 1 |
| 8 | Conduit Box | 5200-101-010 | 2 |
