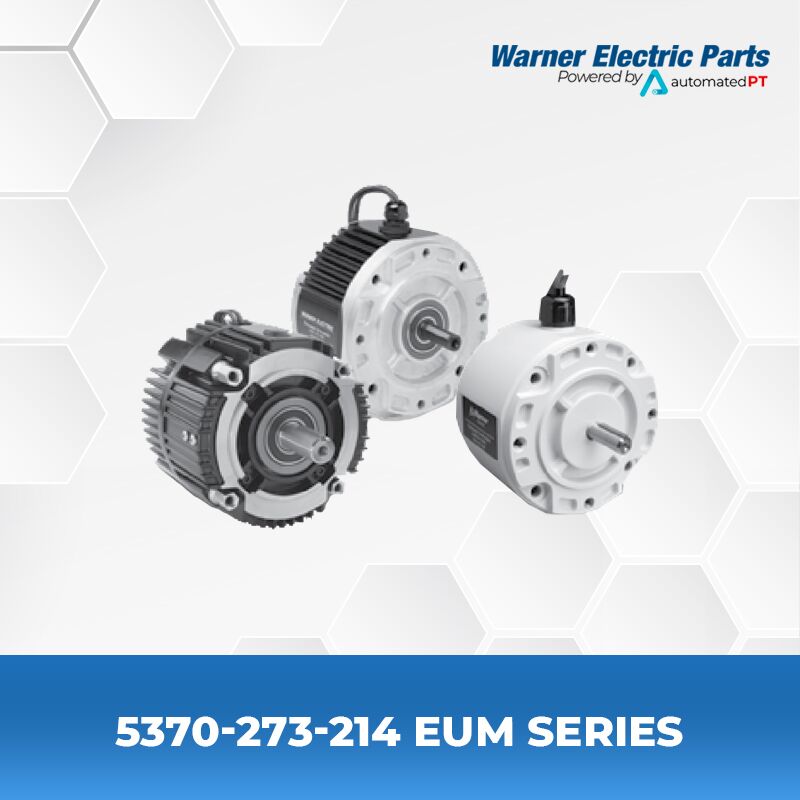

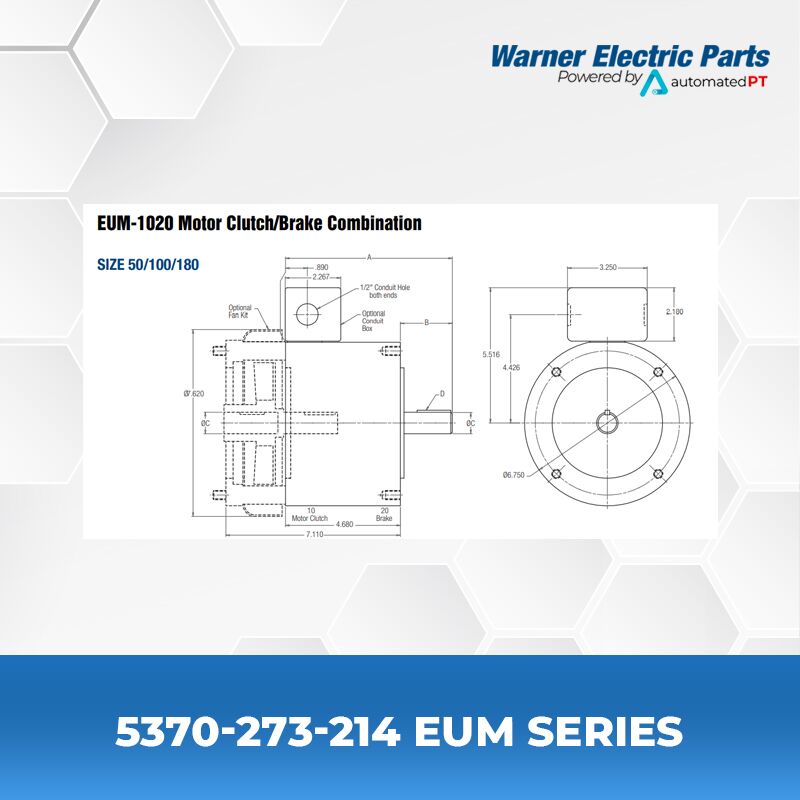

Warner Electric 5370-273-214 EUM Series

  • 5370-273-214
  • EUM Series
  • Model Size: EUM-180
  • Voltage: 90 VDC
  • Static Torque: 30 lb. ft.
  • Max RPM: 3600
  • NEMA Frame Size: 182C/143TC 184C/145TC

SPECIFICATIONS

Gen 2 No 5370-273-214 (UM-180-1020)
Included in Kit 5370-23
Cover Kit No 5370-101-076
Original Part No 5370-273-065
Series UM UniModule (Standard/Open)
Function Motor Clutch/Brake Base Unit
Voltage 90 VDC
Static Torque 30 lb-ft
Maximum Speed 3600 RPM
Construction Vented Housing (Non-Enclosed)
Mounting Type C-Face
Dimensions Height: 9.632 in
Width: 2.121 in
Shaft Diameter: 0.875 in
Key: 3/16 x 3/16 in
Coil Design Sealed & Encapsulated (Pre-burnished)
Auto Wear Compensation Autogap™ Self-Adjusting Technology
Component Parts
Description Part No
Armature Assembly (Qty 2) 5370-111-013
Armature Hub 540-1642
Key 590-0084
Retaining Ring (Hub) 748-0676
Ball Bearing (Center Housing) 166-0101
Ball Bearing (Shaft) 166-0143
Endbell / Brake 456-1019
Brake Magnet – 90 Volt 5370-631-003
Set Screws (Magnet) 797-0471
Clutch Field / Endbell Assembly – 90 Volt 5370-451-058
Rotor Assembly (with fan and hub) 5370-751-017
Set Screws (Rotor) 797-0069
Center Housing 535-0162
Shaft 798-0085
Key (Shaft) 590-0029
Retaining Ring (Internal) 748-0101
Ball Bearing (Rotor) 166-0101
Retaining Ring (External) 748-0001
Assembly Bolts (Mounting Accessory) 5370-101-040
Insulator 572-0327
pdf icon 1
Catalog Warner Electric UM & EUM Series UniModule Catalog
Service Parts UM / EUM Series Service Parts Guide

PRODUCT DESCRIPTION

The Warner Electric UM Series is a factory-aligned clutch/brake module designed for simplified installation and high-performance torque control. This base unit features a vented housing for optimal airflow during high-cycle applications. Engineered for precision, it integrates seamlessly between a standard NEMA C-Face motor and a gear reducer.

FEATURES

  • Vented housing design for heat dissipation during heavy cycling
  • Pre-burnished surfaces ensure full torque immediately out-of-box
  • Autogap™ technology automatically compensates for plate wear
  • Twin bearing shaft support maintains concentric accuracy
  • Quiet engagement and disengagement with sealed coil design
  • Factory-aligned assembly reduces installation time and error
