Warner Electric PCB-1225 Normal Duty

  • PCB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 465 lb. ft.
  • Max RPM: 3,000 rpm
  • Shaft Size: .937 – 3.000

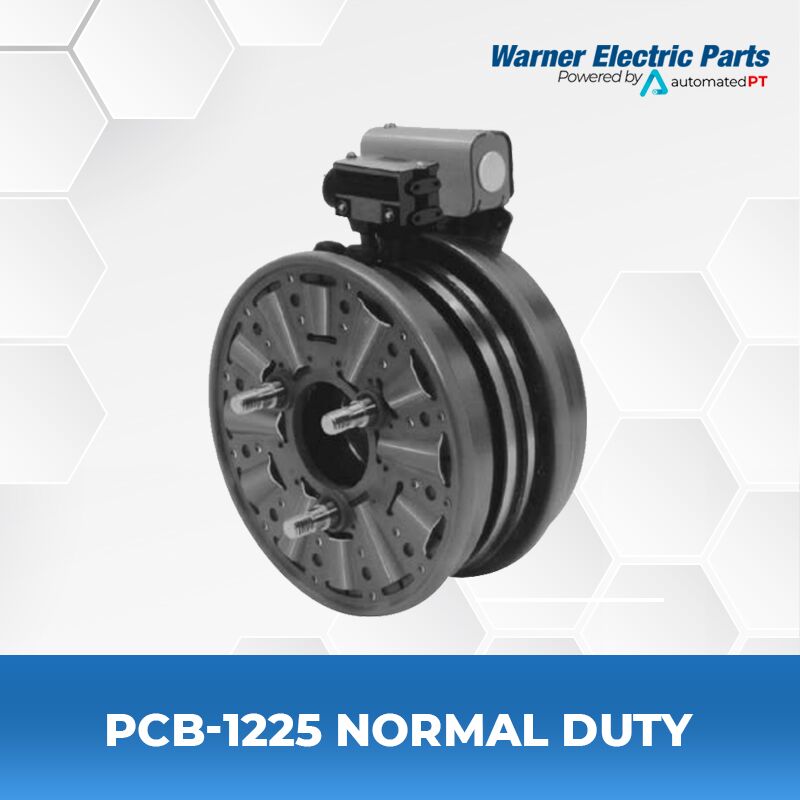

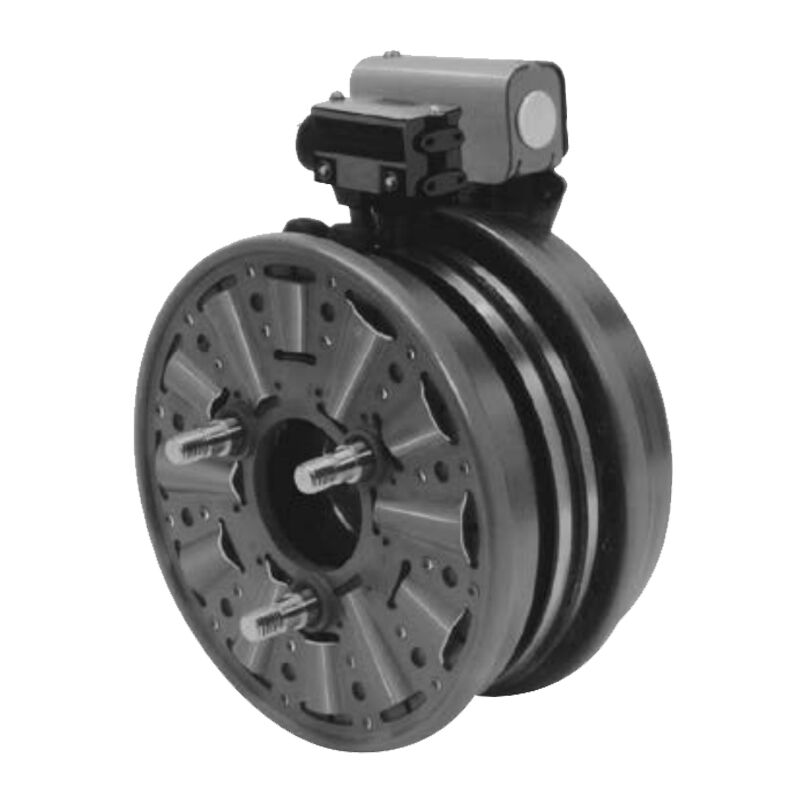

The PCB Series clutch-brakes combine a PC clutch and a PB brake into one compact design.

SPECIFICATIONS

Model Name PCB-1225 Normal Duty
Function Primary Clutch Brake
Shaft Size .937 – 3.000
Max. Rated Torque 465 lb. ft.
Max. RPM 3,000 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 12.75 inches
Overall Length 6.25 Inches

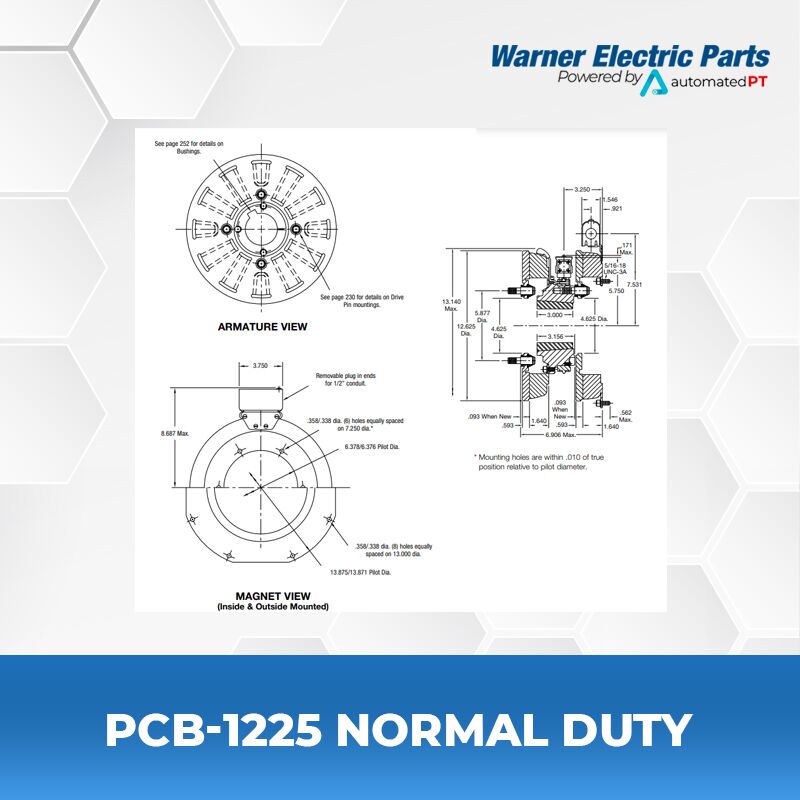

Manufacturer Drawing I-25606

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PCB-1225 HD Users Manual / Installation Instructions
Quick Information Warner Electric PCB-1225 HD Quick Information

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A or Outside
Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.
4. See Controls Section.

Warner Electric PCB 1225 ND Quick Info



Warner MB Series Controls

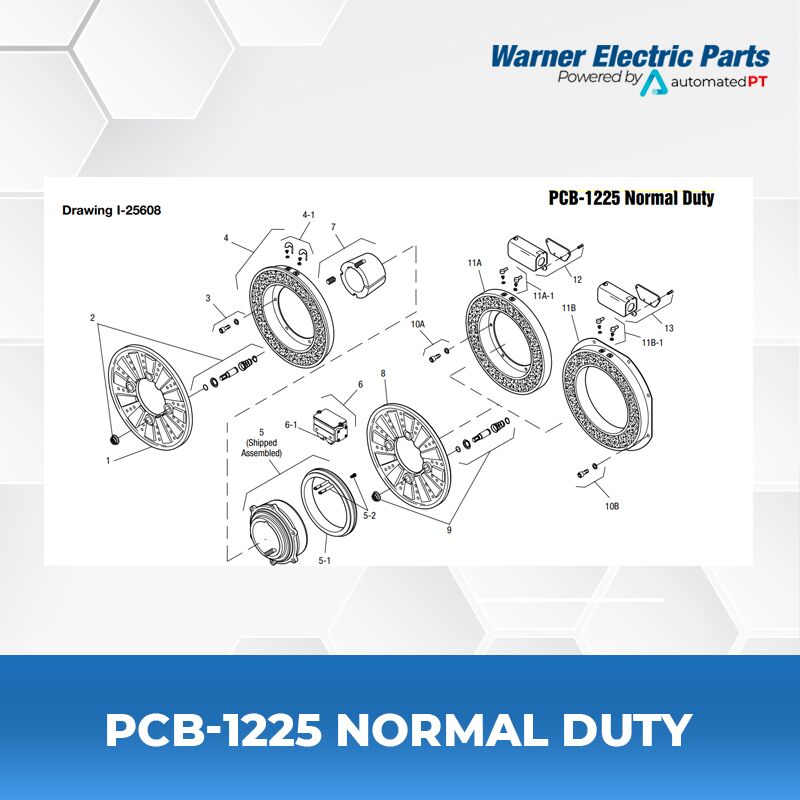

PCB-1225 Normal Duty Parts List
Item Description Part Number Qty.
1 Armature 5303-111-009 1
2 Autogap Accessory 5201-101-008 4
3 Mounting Accessory 5321-101-001 1
4 Magnet 1
6 Volt 5303-631-005
24 Volt 5303-631-007
90 Volt 5303-631-008
4-1 Terminal Accessory 5311-101-001 1
5 Magnet Hub 1
Left Hand (shown) 5303-541-001
Right Hand 5303-541-002
5-1 Collector Ring 5301-749-001 1
5-2 Collector Ring Assembly 5303-101-004 1
6 Brushholder 5300-178-001 1
6-1 Brush 176-0001 4
7 Bushing* 1
15/16″ to 3″ Bore 180-0262 to180-0295
8 Armature 5303-111-009 1
9 Autogap Accessory 5201-101-008 4
10A Mounting Accessory – I.M. 5321-101-001 1
10B Mounting Accessory – O.M. 5321-101-002 2
11A Magnet – Inside Mounted 1
6 Volt 5313-631-005
24 Volt 5313-631-006
90 Volt 5313-631-007
11A-1 Terminal Accessory 5311-101-001 1
11B Magnet – Outside Mounted 1
6 Volt 5313-631-010
24 Volt 5313-631-012
90 Volt 5313-631-011
11B-1 Terminal Accessory 5311-101-001 1
12 Conduit Box 5200-101-011 2
