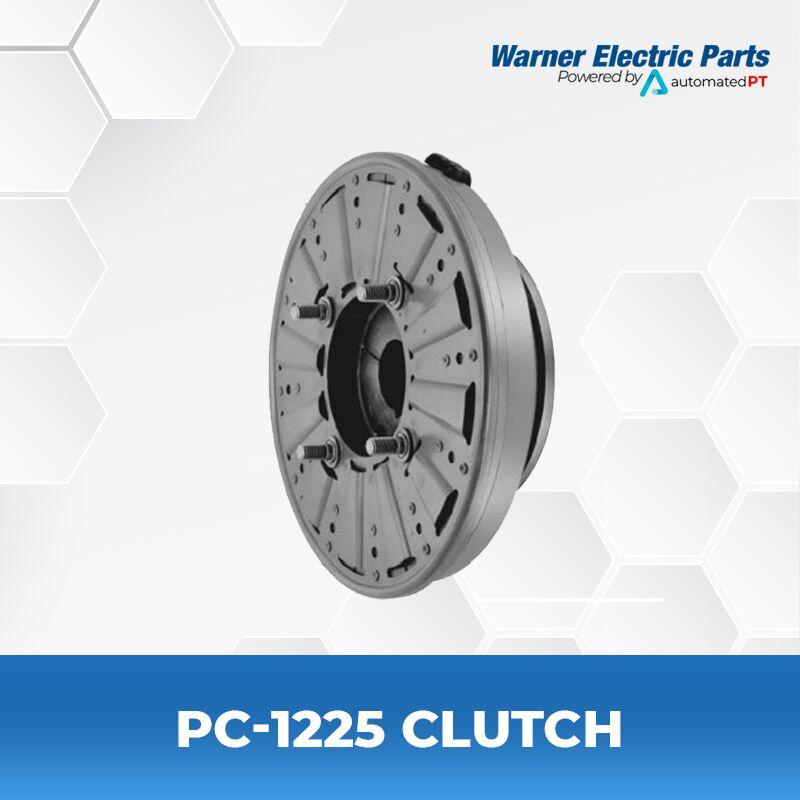

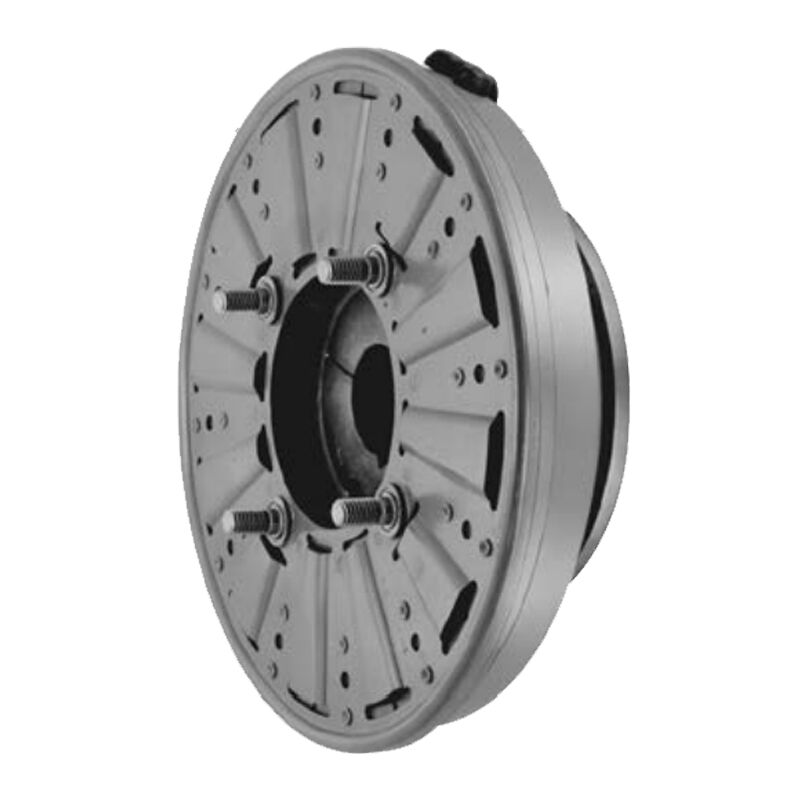

Warner Electric PC-1225 Clutch

  • PC Series
  • Model Size: pc-1225
  • Voltage: 6/24/90 VDC
  • Static Torque: 465 lb.ft.
  • Max RPM: 3,000 rpm
  • Shaft Size: .937 – 3.000

Current is carried through brushes and the collector ring to the rotating magnet. The PC design is less expensive than the SF design.

SPECIFICATIONS

Model Name PC Series PC-1225 Clutch
Function Primary Clutch
Shaft Size .937 – 3.000
Max. Rated Torque 465 lb. ft
Max. RPM 3,000 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 12.75 Inches
Overall Length 4.5 Inches

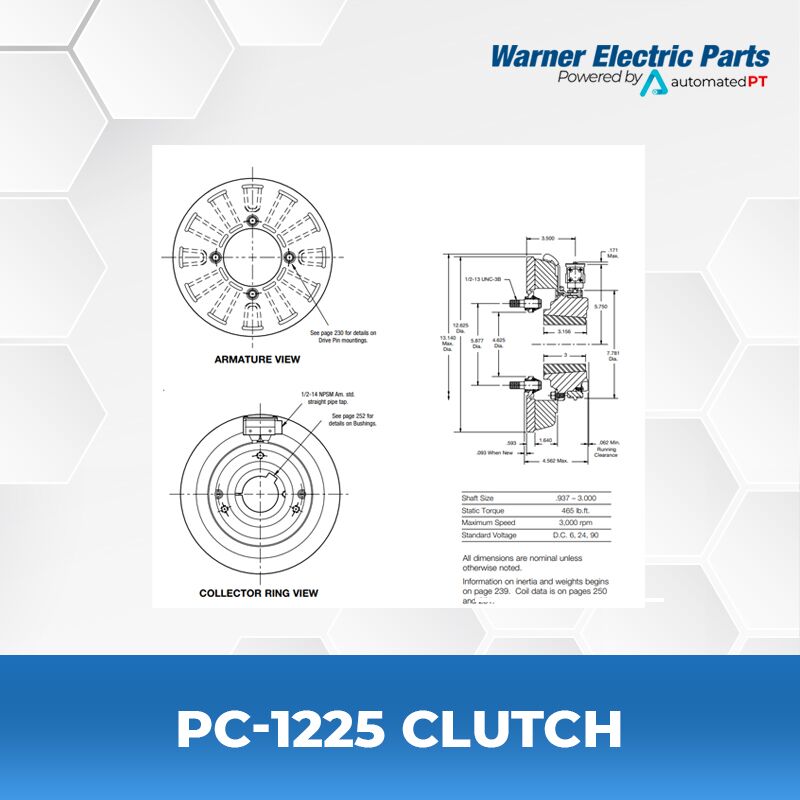

Manufacturer Drawing I-25583

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PC-1225 Users Manual / Installation Instructions
Quick Information Warner Electric PC-1225 Quick Information

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Voltage for Item 4.
2. Specify Bore Size for Item 5.
3. Specify left hand or right hand hub for Item 6. (Bushing enters from magnet side for L.H. hub and from hub side for R.H.)

Warner Electric PC 1225 ND Quick Info

Warner MB Series Controls

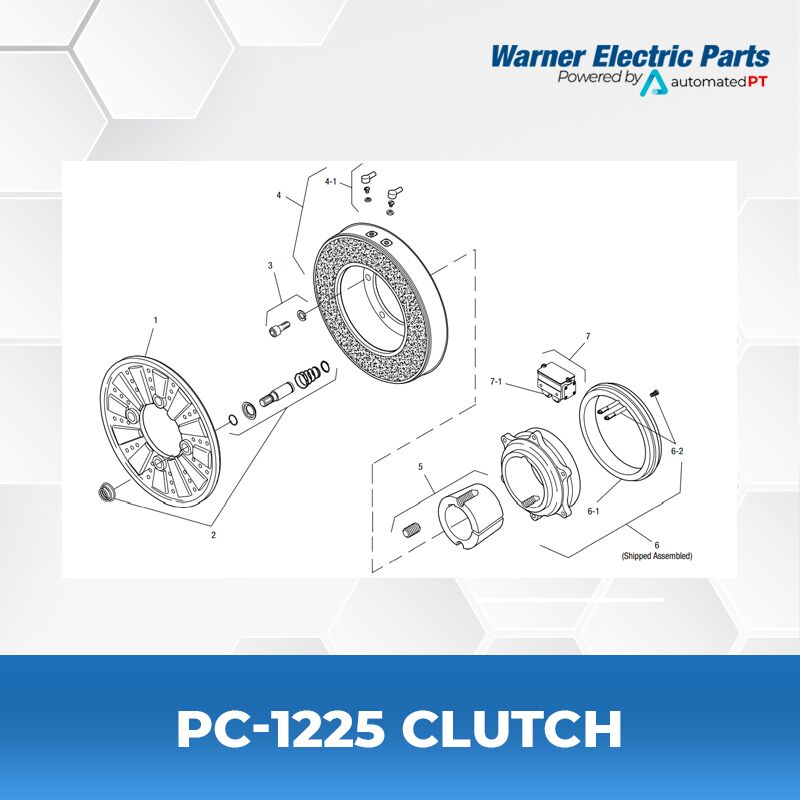

PC-1225 Normal Duty Parts List
Item Description Part Number Qty.
1 Armature 5303-111-009 1
2 Autogap Accessory 5201-101-008 4
3 Mounting Accessory 5321-101-001 1
4 Magnet 1
6 Volt 5303-631-005
24 Volt 5303-631-007
90 Volt 5303-631-008
90 Volt LK Facing 5303-631-001
4-1 Terminal Accessory 5311-101-001 1
5 Bushing* 1
15/16″ to 3″ Bore 180-0262 to 180-0295
6 Magnet Hub 1
Left Hand (shown) 5303-541-001
Right Hand 5303-541-002
6-1 Collector Ring 5301-749-001 1
6-2 Collector Ring Accessory 5303-101-004 1
7 Brushholder 5300-178-001 1
7-1 Brush 176-0001 4
